1/8

L6926D

May 2003

s

2V TO 5.5V BATTERY INPUT RANGE

s

HIGH EFFICIENCY: UP TO 95%

s

INTERNAL SYNCHRONOUS SWITCH

s

NO EXTERNAL SCHOTTKY REQUIRED

s

EXTREMELY LOW QUIESCENT CURRENT

s

1

µA MAX SHUTDOWN SUPPLY CURRENT

s

800mA MAX OUTPUT CURRENT

s

ADJUSTABLE OUTPUT VOLTAGE FROM 0.6V

s

LOW DROP-OUT OPERATION: UP TO100%

DUTY CYCLE

s

SELECTABLE LOW NOISE/LOW

CONSUMPTION MODE AT LIGHT LOAD

s

POWER GOOD SIGNAL

s

±1% OUTPUT VOLTAGE ACCURACY

s

CURRENT-MODE CONTROL

s

600kHz SWITCHING FREQUENCY

s

EXTERNALLY SYNCHRONIZABLE FROM

500kHz TO 1.4MHz

s

OVP

s

SHORT CIRCUIT PROTECTION

APPLICATIONS

s

BATTERY-POWERED EQUIPMENTS

s

PORTABLE INSTRUMENTS

s

CELLULAR PHONES

s

PDAs AND HAND HELD TERMINALS

s

DSC

s

GPS

DESCRIPTION

The device is dc-dc monolithic regulator specifically

designed to provide extremely high efficiency.

L6926D supply voltage can be as low as 2V allowing

its use in single Li-ion cell supplied applications. Out-

put voltage can be selected by an external divider

down to 0.6V. Duty Cycle can saturate to 100% al-

lowing low drop-out operation. The device is based

on a 600kHz fixed-frequency, current mode-architec-

ture. Low Consumption Mode operation can be se-

lected at light load conditions, allowing switching

losses to be reduced. L6926D is externally synchro-

nizable with a clock which makes it useful in noise-

sensitive applications. Other features like Power-

good, Overvoltage protection, Shortcircuit protection

and Thermal Shutdown (150°C) are also present.

MSOP8

ORDERING NUMBERS: L6926D

L6926D013TR (Tape & Reel)

HIGH EFFICIENCY MONOLITHIC SYNCHRONOUS

STEP DOWN REGULATOR

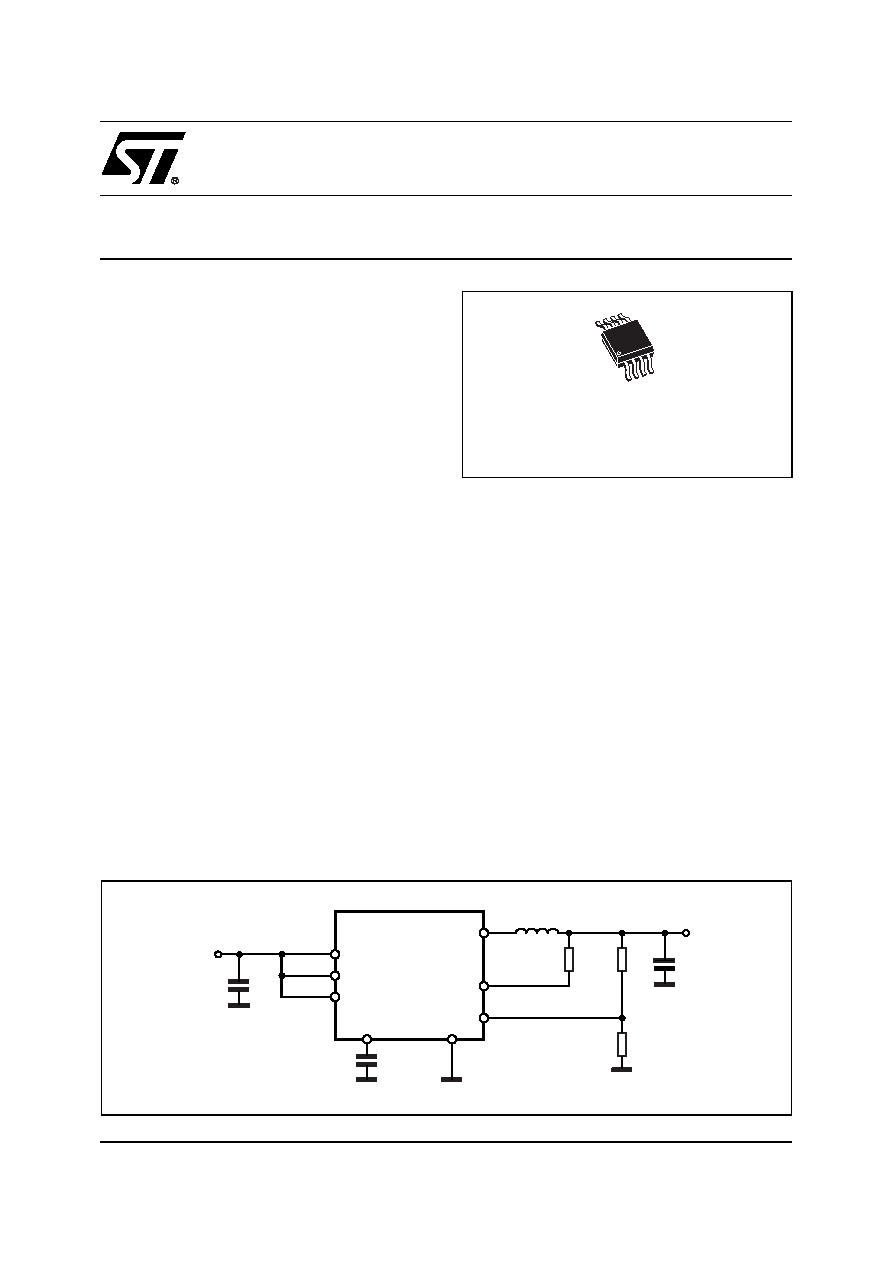

APPLICATION TEST CIRCUIT

L 6.8

µH

SYNC

LX

VFB

C1

10

µF

6.3V

C2

220pF

C4

10

µF

6.3V

R2

200K

R3

500K

R1

100K

RUN

COMP

GND

PGOOD

D01IN1305

7

6

1

8

3

5

24
