6.42
6116SA/LA
CMOS Static RAM 2K (16K x 8-Bit)
Military, Commercial, and Industrial Temperature Ranges
7
Jul.17.20

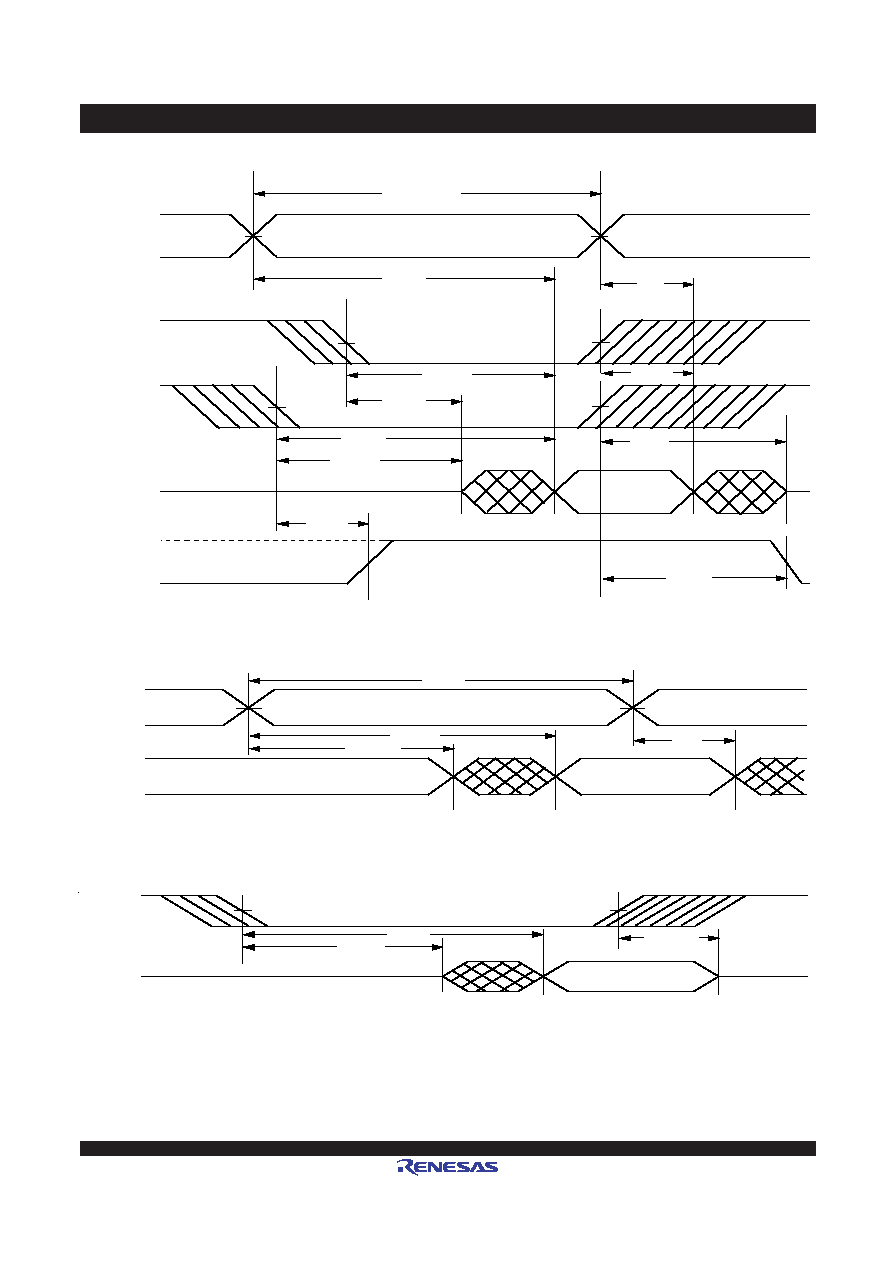

Timing Waveform of Read Cycle No. 2(1,2,4)
Timing Waveform of Read Cycle No. 1(1,3)
Timing Waveform of Read Cycle No. 3(1,3,4)
NOTES:
1. WE is HIGH for Read cycle.
2. Device is continuously selected, CS is LOW.
3. Address valid prior to or coincident with CS transition LOW.
4. OE is LOW.
5. Transition is measured ±500mV from steady state.
ADDRESS
OE
CS
tRC
tAA
tOE
tACS
DATAOUT
tOH
tOLZ
(5)
tCLZ
(5)
tOHZ
(5)
tCHZ
(5)
3089 drw 06
DATA
VALID
tPD
ICC
ISB
tPU
VCC
Supply
Currents
,
ADDRESS
tRC
tAA
tOH
tOH
DATAOUT
3089 drw 07
PREVIOUS DATA VALID
DATA VALID
,
CS
tACS
DATAOUT
tCLZ
(5)
tCHZ
(5)
DATA VALID
3089 drw 08
,
