eorex

Preliminary

EP1017

Jun. 2007

www.eorex.com

THREE-TERMINAL ADJUSTABLE

OUTPUT POSITIVE VOLTAGE REGULATORS

Description

The EP1017 are adjustable 3-terminal positive voltage regulators capable of supplying in excess of 1.5A over

an output voltage range of 1.2 to 37V.

These voltage regulators are exceptionally easy to use and require

only two external resistors to set the output voltage. Further, they employ internal current limiting.

Thermal

shutdown and safe area compensation, making them essentially blow-out proof.

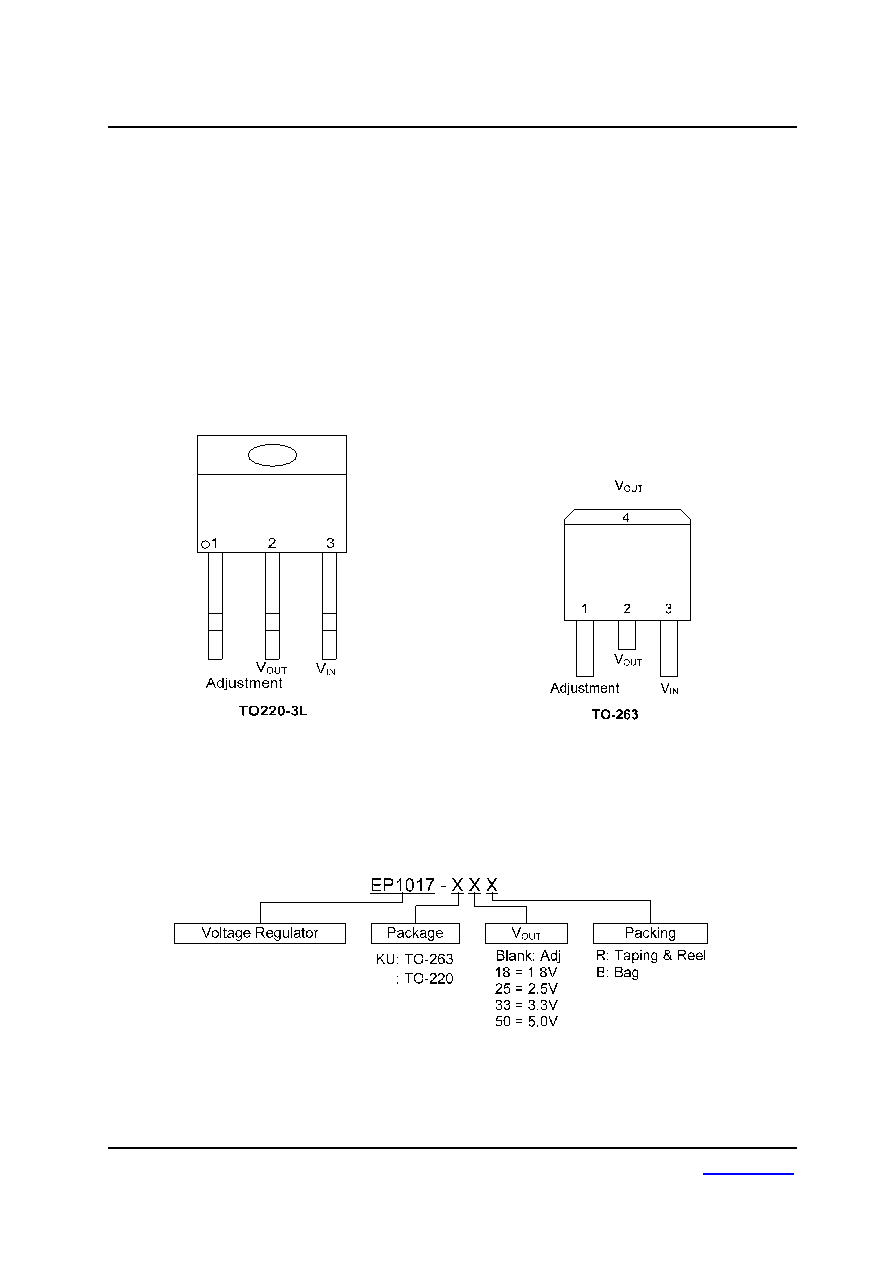

Pin Assignment

Ordering Information

1/8
