13 / 17 page

December 1990

Philips Semiconductors

Product speciﬁcation

Triple 2-channel analog

multiplexer/demultiplexer

74HC/HCT4053

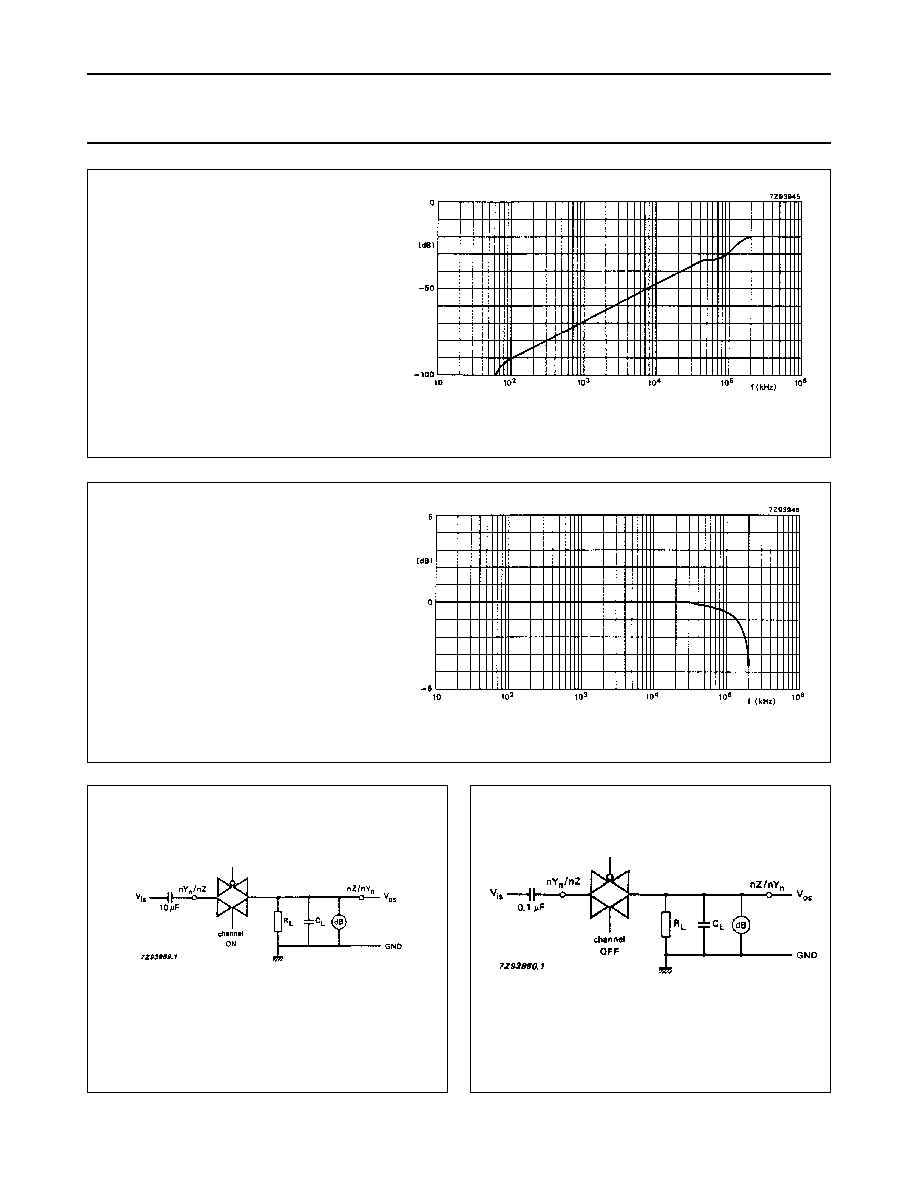

Fig.12 Typical switch “OFF” signal feed-through as a function of frequency.

Test conditions:

VCC = 4.5 V; GND = 0 V; VEE = −4.5 V;

RL =50 Ω; Rsource =1 kΩ.

Fig.13 Typical frequency response.

Test conditions:

VCC = 4.5 V; GND = 0 V; VEE = −4.5 V;

RL =50 Ω; Rsource =1 kΩ.

Fig.14 Test circuit for measuring sine-wave

distortion and minimum frequency

response.

Fig.15 Test circuit for measuring switch “OFF”

signal feed-through.
