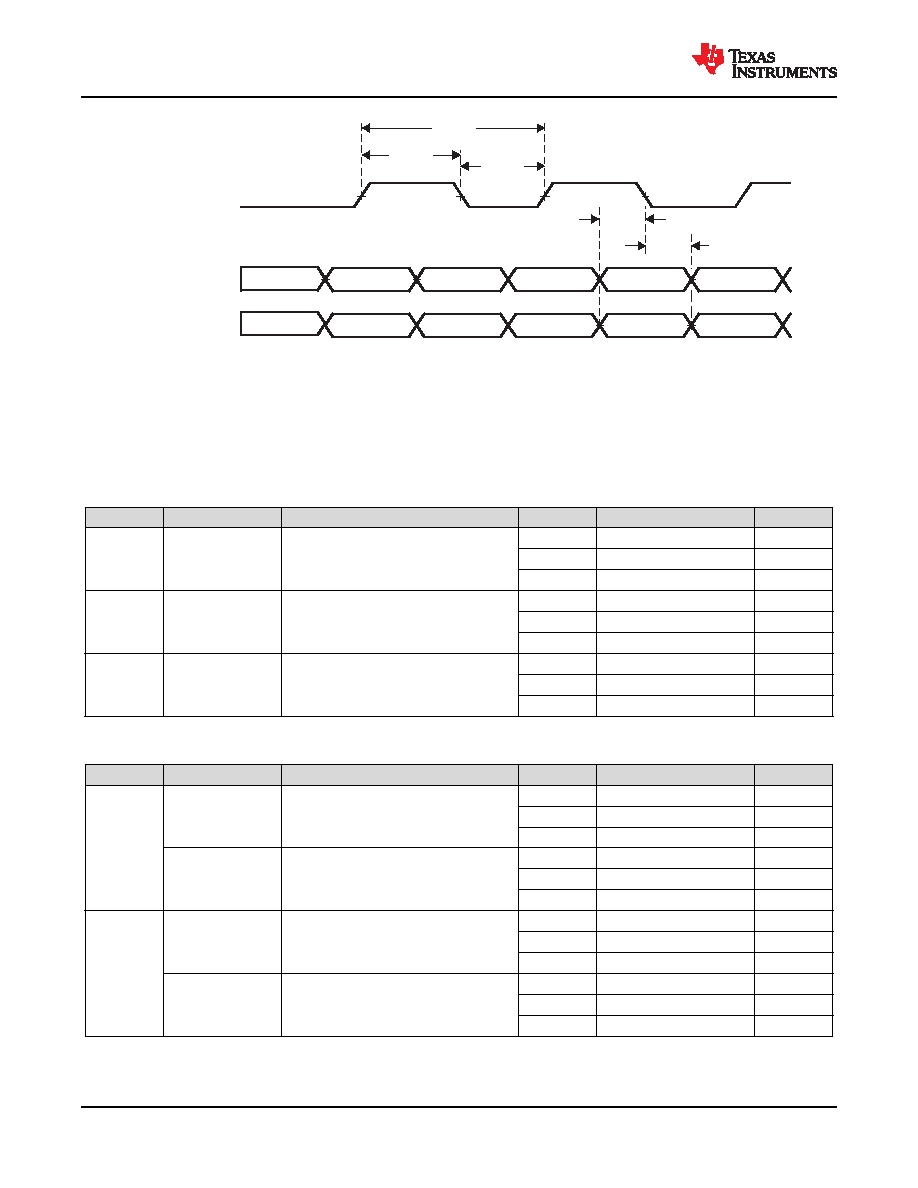

112 / 218 page  RGMII[x] RD 3 _ [ :0] (B) RGMII[x] RX_CTL _ (B) RGMII[x] RXC _ (A) RGMII4 RXERR RXDV 2nd Half-byte 1st Half-byte RGMII2 RGMII3 RGMII1 RGMII5 A. RGMII[x]_RXC must be externally delayed relative to the data and control pins. B. Data and control information is received using both edges of the clocks. RGMII[x]_RD[3:0] carries data bits 3-0 on the rising edge of RGMII[x]_RXC and data bits 7-4 on the falling edge of RGMII[x]_RXC. Similarly, RGMII[x]_RX_CTL carries RXDV on rising edge of RGMII[x]_RXC and RXERR on falling edge of RGMII[x]_RXC. Figure 6-11. CPSW RGMII[x]_RXC, RGMII[x]_RD[3:0], RGMII[x]_RX_CTL Timing Requirements - RGMII Mode 6.11.5.1.2.4 CPSW RGMII[x]_TCLK Switching Characteristics - RGMII Mode NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT RGMII6 tc(TXC) Cycle time, TXC 10Mbps 360 440 ns 100Mbps 36 44 ns 1000Mbps 7.2 8.8 ns RGMII7 tw(TXCH) Pulse duration, TXC high 10Mbps 160 240 ns 100Mbps 16 24 ns 1000Mbps 3.6 4.4 ns RGMII8 tw(TXCL) Pulse duration, TXC low 10Mbps 160 240 ns 100Mbps 16 24 ns 1000Mbps 3.6 4.4 ns 6.11.5.1.2.5 CPSW RGMII[x]_TD[3:0], and RGMII[x]_TCTL Switching Characteristics - RGMII Mode NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT RGMII9 tosu(TD-TXC) Output setup time, RGMII[x]_TD[3:0] valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns tosu(TX_CTL-TXC) Output setup time, RGMII[x]_TX_CTL valid to RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns RGMII10 toh(TXC-TD) Output hold time, RGMII[x]_TD[3:0] valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns toh(TXC-TX_CTL) Output hold time, RGMII[x]_TX_CTL valid after RGMII[x]_TXC high/low 10Mbps 1.2 ns 100Mbps 1.2 ns 1000Mbps 1.2 ns AM2612, AM2611, AM2611-Q1, AM2612-Q1 SPRSPA7C – SEPTEMBER 2024 – REVISED JULY 2025 www.ti.com 112 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated Product Folder Links: AM2612 AM2611 AM2611-Q1 AM2612-Q1 |
|
