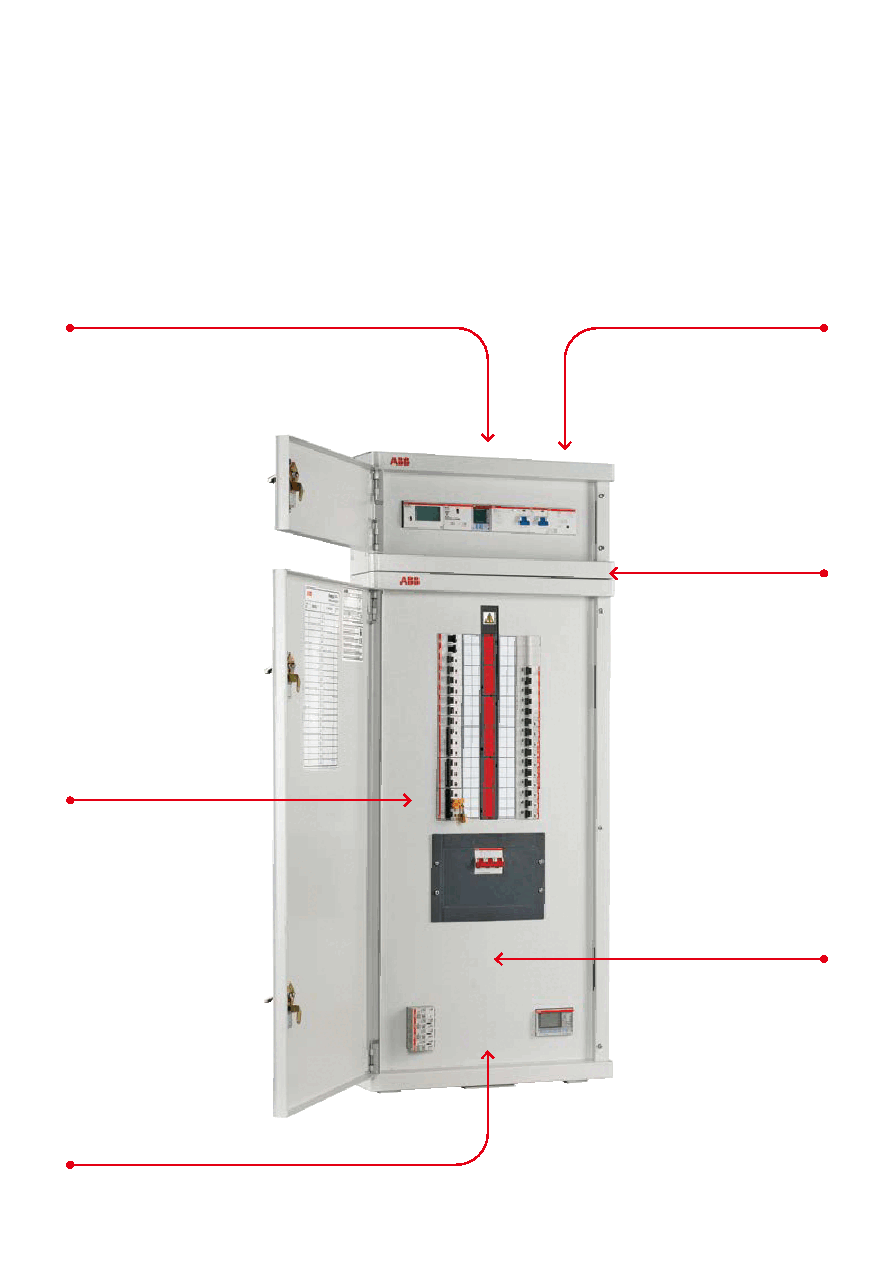

A series of rational solutions developed to achieve a complete

range of capabilities and functions with a single type of

distribution board to meet different installation requirements,

whilst simplifying the work of the installer.

High output

capacity

Primary branch

capacity up to 100A.

Range

depth: 125 mm;

width: 450 mm;

6 heights: 590, 730,

870, 1050, 1220,

1360 mm.

Ergonomics

and design

The design of

this series is

characterized by

special features,

such as rounded

edges for a

more efficient

ergonomic look.

Flexible mounting

The PAN assembly

system can easily be

removed from the

bottom distribution

board of the

framework, ensuring

quick and simple

installation.

Complete

protection

Designed to ensure

maximum

protection and

efficiency, through

the prevision for the

installation of surge

protection devices

and counters.

P R OT EC TA P LUS – G EN ER A L FE AT U R E S O F T H E SER I E S
