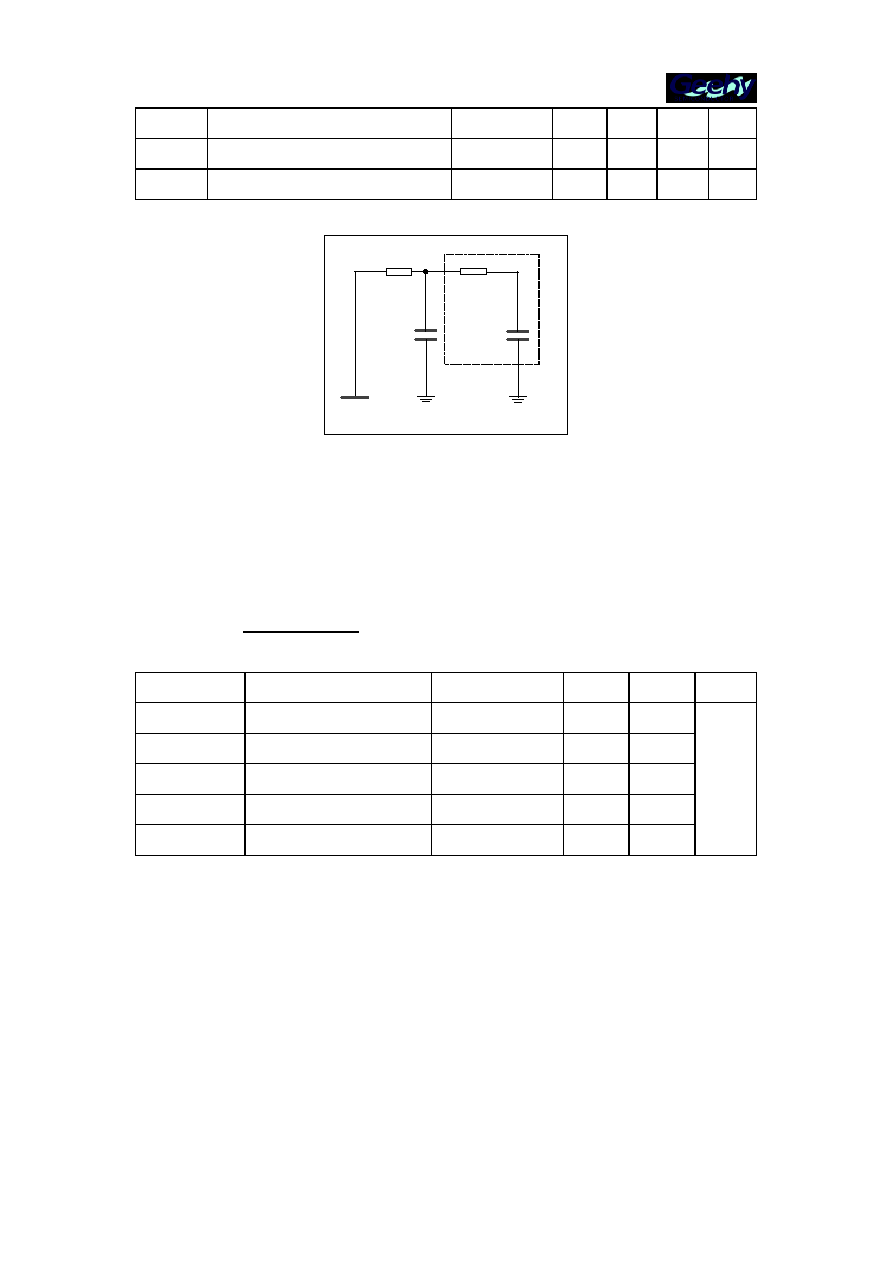

Page 38
Symbol
Parameter
Condition
Min
Typ
Max
Unit
tS
Sampling time
fADC=14MHz
-
0.107
-
μs
TCONV
Sampling and conversion time
fADC=14MHz
-
1
-
μs
Figure 12 Typical application of ADC
RAIN
CADC
VADC
RADC
SAR
CAIN
Note: Users can choose whether to increase parasitic capacitance based on
their actual application(Capacitance value to be selected as needed).
The formula for calculating the maximum external input impedance is as
follows：
Formula 1: formula of maximum RAIN
RAIN<
������������
������������������������ Ｘ ln(2������+2)
-RADC
Table 43 12-bit ADC accuracy
Symbol
Parameter
Condition
Typ
Max
Unit
|ET|
Total uncorrected error
3.3V~5V
6.5
-
LSB
|EO|
offset error
3.3V~5V
2
-
|EG|
Gain error
3.3V~5V
4.5
-
|ED|
Differential linear error
3.3V~5V
1.5
-
|EL|
Integral linearity error
3.3V~5V
2.8
-
