DIO7758
www.dioo.com
© 2022 DIOO MICROCIRCUITS CO., LTD
DIO7758• Rev. 1.6

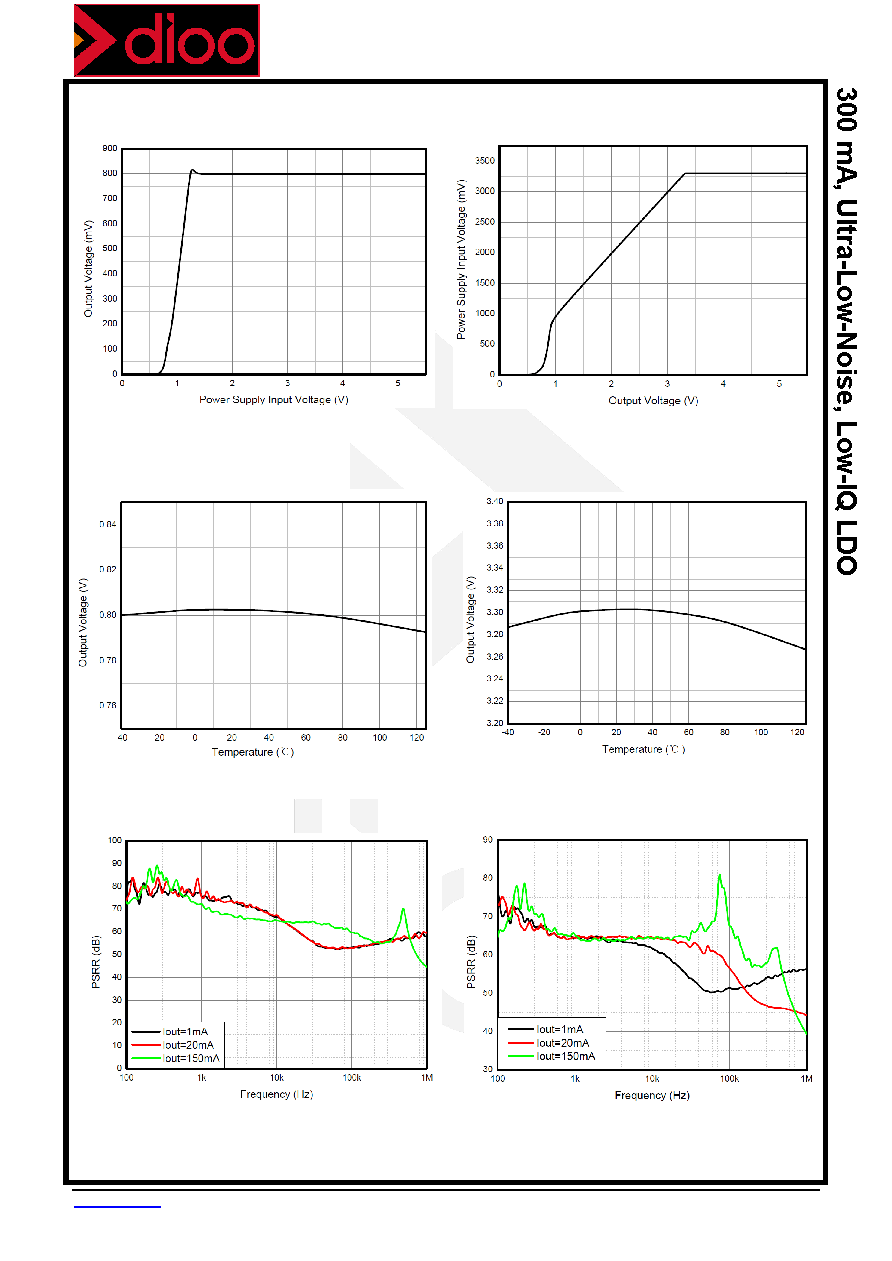

Typical Performance Characteristics
CIN = Cout = 1 uF，Iout = 1 mA，Vout =0.8 V
Figure 2. Output Voltage vs Input Voltage
CIN = Cout = 1 uF，Iout = 1 mA，Vout =3.3 V
Figure 3. Output Voltage vs Input Voltage
Vout = 0.8 V，CIN = Cout= 1 uF，Iout = 1 mA
Figure 4. Output Voltage vs Temperature
Vout = 3.3 V，CIN = Cout = 1 uF，Iout = 1 mA
Figure 5. Output Voltage vs Temperature
Cout = 1 uF，VIN = 2.5 V+200 mVpp，Vout = 0.8 V
Figure 6. PSRR vs Frequency
Cout = 1 uF，VIN = 4.3 V+200 mVpp，Vout = 3.3 V
Figure 7. PSRR vs Frequency
