Model: HG2409PCR

Specifications

Electrical Specifications

Frequency

2400-2500 MHz

Gain

8 dBic

Polarization (HG2409PCL)

Left Hand Circular

Polarization (HG2409PCR)

Right Hand Circular

Horizontal Beam Width

65 degrees

Vertical Beam Width

65 degrees

Impedance

50 Ohm

VSWR

< 1.5:1 avg.

Lightning Protection

DC Short

Mechanical Specifications

Weight

0.4 lbs. (.18 Kg)

Dimensions

4.5 x 4.5 x .9 inches

114 x 114 x 23 mm

Radome Material

UV-inhibited Polymer

Flame Rating

UL 94HB

Operating Temperature

-40° C to 85° C

(-40° F to 185° F)

Mounting

Four ¼ in. (6.3 mm) Holes

Wind Survival

>150 MPH (241 KPH)

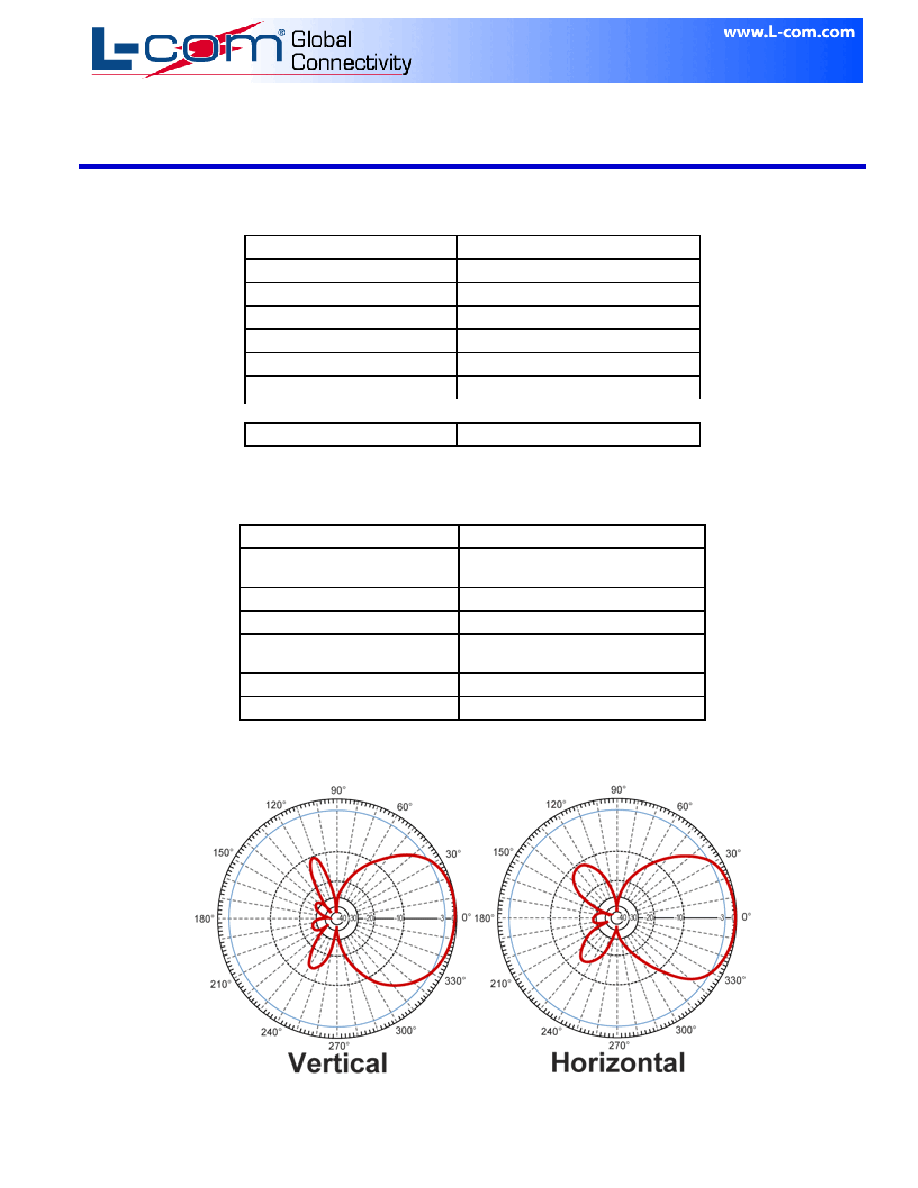

Antenna Patterns
