AS3412 − Detailed Description

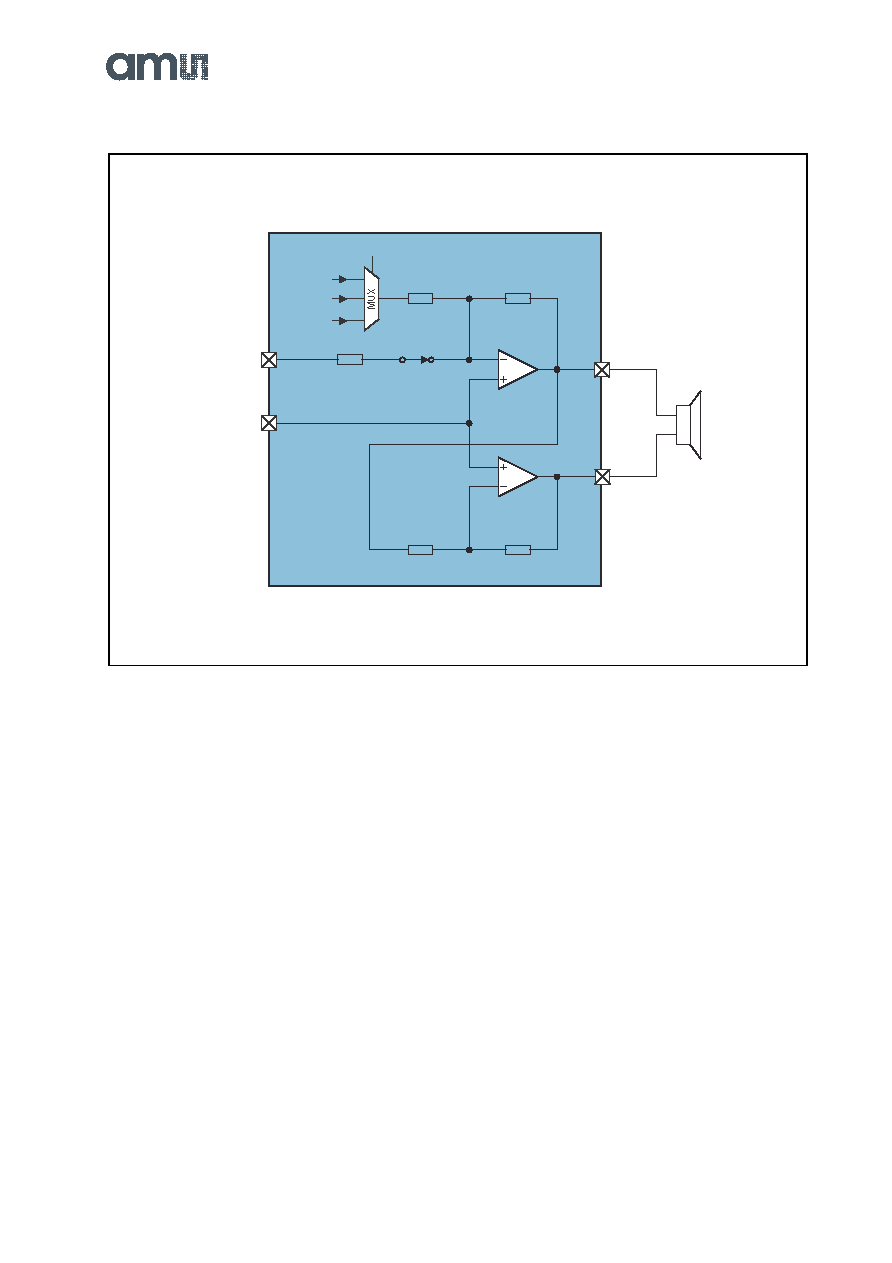

Figure 22:
Headphone Amplifier Differential
Headphone Amplifier Differential: This figure shows the block diagram of the headphone amplifier including
the integrated music bypass switches as well as the summation input of the amplifier in differential output mode.
QMICL
QOP1L
open
HPL
HPR
AGND
LINL
RLIN
2kΩ
2kΩ
2kΩ
2kΩ
2kΩ
HPH_MUX
LINE_MUTE
