CSG14K_CSG8K
Pin Assignment
Datasheet
• PUBLIC
DS000571
• v2-01 • 2023-Feb-10
113
│ 6
3
Pin Assignment
3.1
Pin Diagram

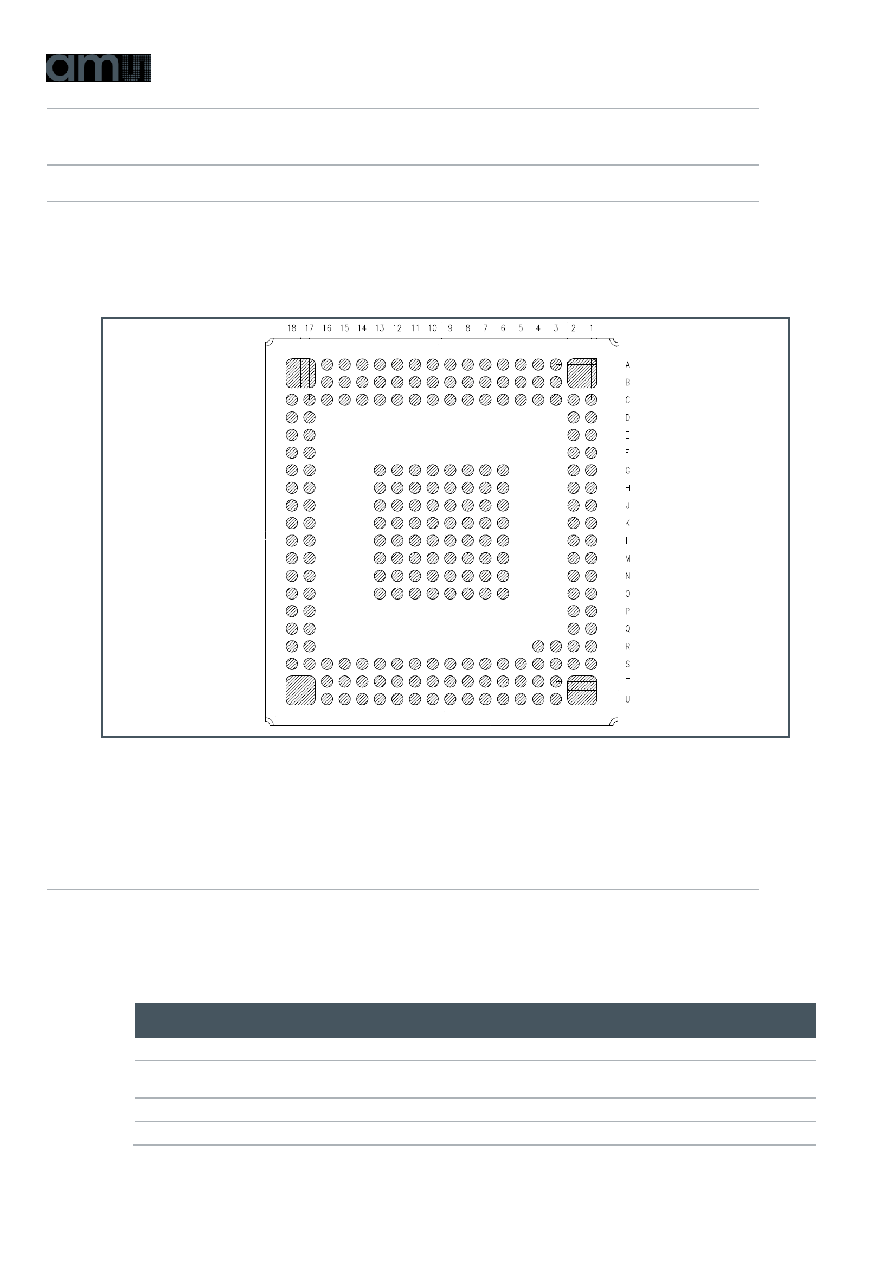

Figure 3:
Pin Diagram
The center 8×8 pads have no functional use (internally not connected (NC)) and should be
used for improved thermal conductance from the sensor to the camera.
The four large corner pads are internally NC and needed for solderability.
3.2
Pin Description
Figure 4:
Pin Description of CSG14K_CSG8K
Pin Number
Pin Name
Pin Type(1)
Description
C7, M2, S2, S7
VDD33
S
Analog supply
K1, K17, K18, K2, L1, L17,
L18, L2, N17, O17
VSS33
G
Analog ground
C1, C2, S1
VDD33D
S
IO supply
J1, J2, M1
VDDPIX
S
Pixel supply
