UNLESS OTHERWISE SPECIFIED

LEADING DIMENSIONS ARE INCHES

DIMENSIONS IN [ ] ARE MILLIMETERS

ALL DIMENSIONS ARE FOR REFERENCE ONLY

AND SUBJECT TO CHANGE WITHOUT NOTICE.

UN-DIMENSIONED/NON-CRITICAL FEATURES

MAY VARY IN SIZE AND LOCATION

COLORS MAY VARY

TOLERANCES:

.XXX = ±.005 [0.13]

.XX = ±.02 [0.5]

.X = ±.2 [5]

± 1/32

FRACTIONS

ANGLES ± 1°

CABLE LENGTH TOLERANCES:

≤12 [305] = +1 [25] / -0

>12 [305] ≤ 60 [1524] = +2 [51] / -0

>60 [1524] ≤ 120 [3048] = +4 [102] / -0

>120 [3048] ≤ 300 [7620] = +6 [152] / -0

>300 [7620] = +5% / -0

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF INFINITE ELECTRONICS, INC. ANY REPRODUCTION IN PART

OR WHOLE WITHOUT THE WRITTEN PERMISSION OF INFINITE ELECTRONICS, INC. IS PROHIBITED. THESE COMMODITIES, TECHNOLOGY

OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS.

DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

Website: www.L-com.com

Phone: 1.800.341.5266 │ 1.978.682.6936

43321

LENGTH

SEE NOTE 3

REVERSE POLARITY

SMA PLUG

RIGHT ANGLE

CONNECTOR

2X HEAT SHRINK

LABEL

SEE NOTE 1

CA-195R, 50 OHM LOW LOSS COAXIAL CABLE

JACKET: PVC, BLACK

TYPE N MALE

CONNECTOR

8mm HEX

NOTES:

CABLE ASSEMBLY LENGTH LABEL PLACEMENT: 36 INCHES

1.

OR LESS, ONE LABEL APPROXIMATELY CENTERED.

LONGER THAN 36 INCHES, TWO LABELS APPROXIMATELY

6 INCHES FROM EACH CONNECTOR.

CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.

2.

CABLE ASSEMBLY LENGTH DETERMINED BY ITEM PN AND

3.

DESCRIPTION.

WWW.L-COM.COM

LCXXXXX

REVISION

ZONE REV

DESCRIPTION

DATE

CHANGED BY

APPROVED

A

INITIAL RELEASE

08/20/2024

DMAY

AGANWANI

ITEM NO.

REV

CAGE CODE

SIZE

A

DRAWN BY

CC-RSPRNMA

A

DESCRIPTION

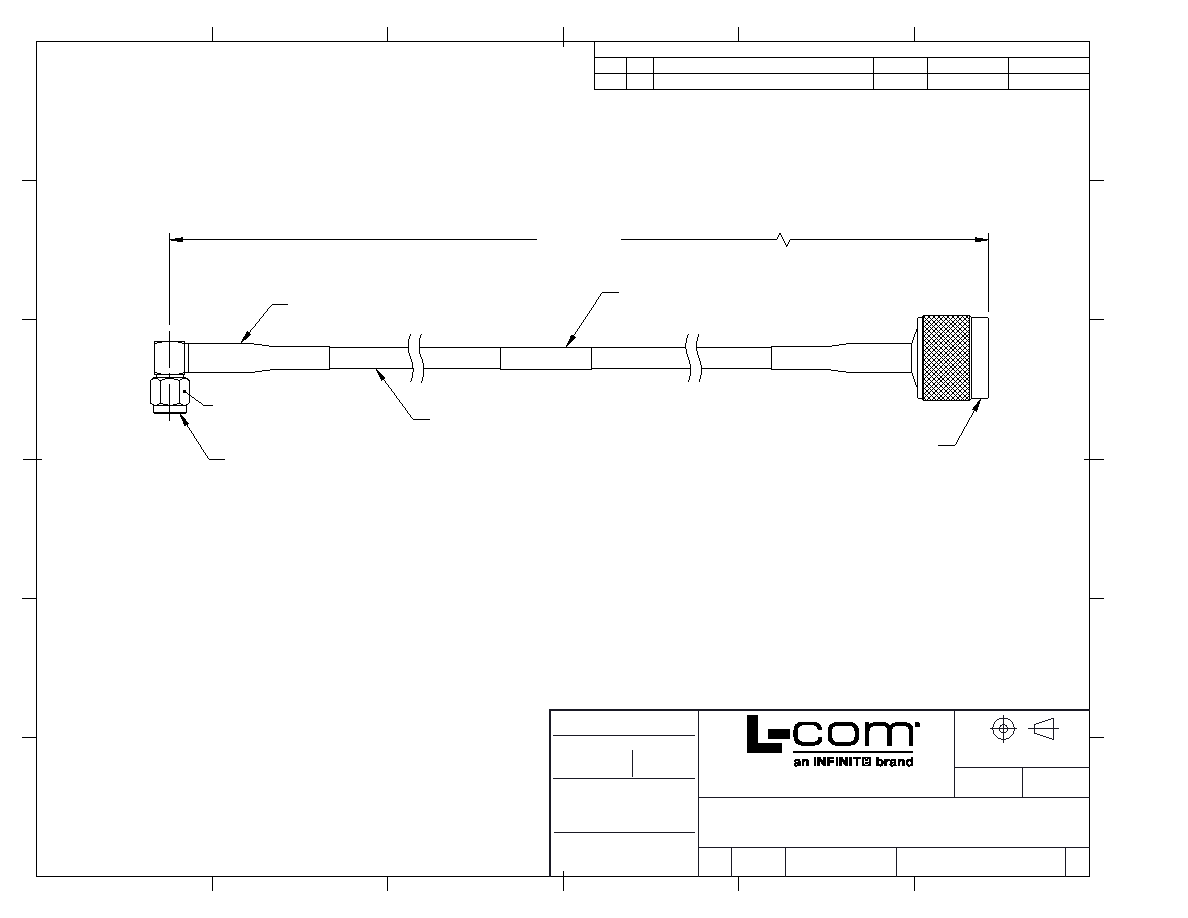

REVERSE POLARITY SMA PLUG RIGHT ANGLE TO N MALE WITH

CA-195R COAX CABLE

DMAY

SHEET

SCALE

INTERPRET ALL DIMENSIONS AND

TOLERANCES PER ASME Y14.5

NONE

1 OF 1

A

A

B

B

C

C

D

D

E

E

F

F

6

6

5

5

4

4

3

3

2

2

1

1

LC DS Rev-D4 Asize
