E3ZM

6

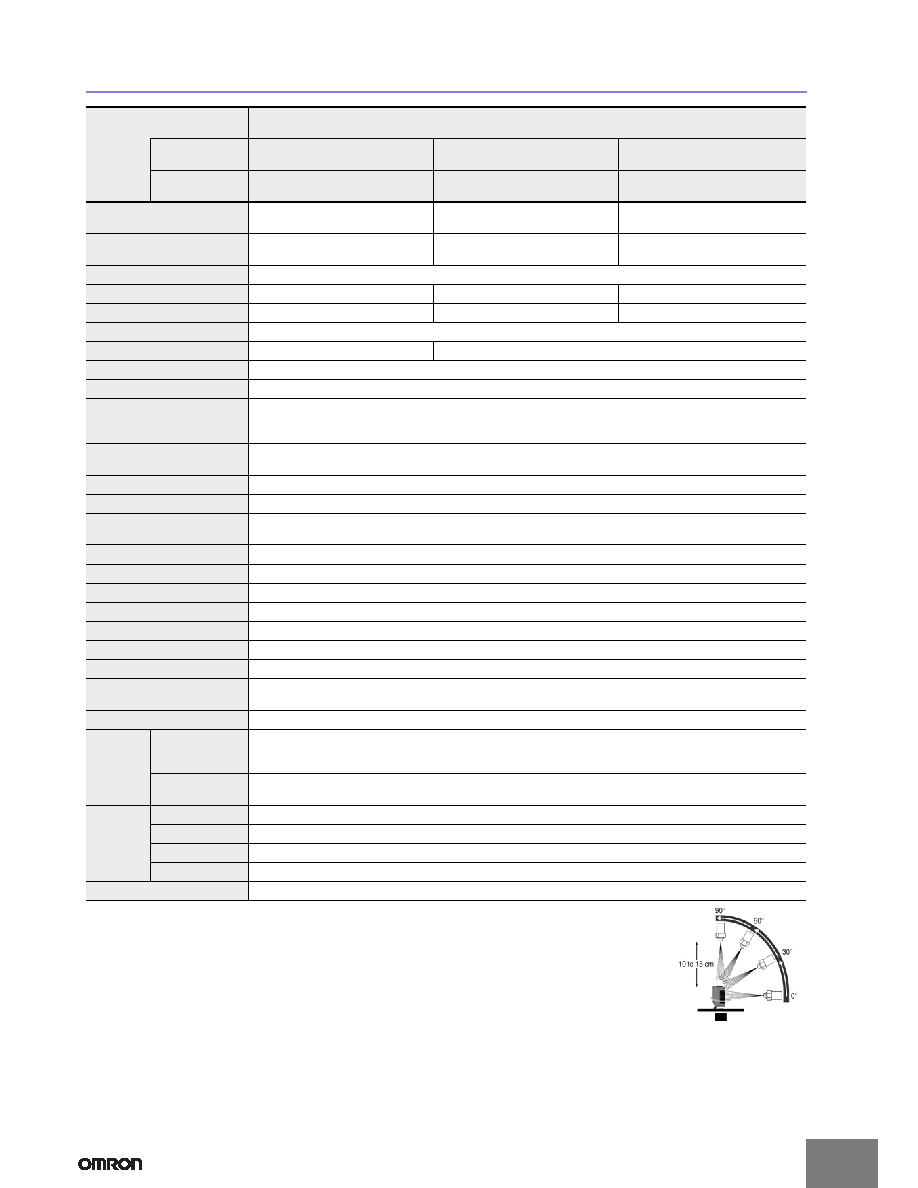

* IP69K Degree of Protection Specifications

IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards.

The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water

is 14 to 16 liters per minute.

The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from

the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing

method

BGS Reflective Models

Model

NPN output

E3ZM-LS61H

E3ZM-LS66H

E3ZM-LS62H

E3ZM-LS67H

E3ZM-LS64H

E3ZM-LS69H

Item

PNP output

E3ZM-LS81H

E3ZM-LS86H

E3ZM-LS82H

E3ZM-LS87H

E3ZM-LS84H

E3ZM-LS89H

Sensing distance

10 to 100 mm

(White paper 100

× 100 mm)

10 to 150 mm

(White paper 100

× 100 mm)

10 to 200 mm

(White paper 100

× 100 mm)

Spot diameter (typical)

4-mmdia. at sensing distance of 100

mm

12-mmdia. at sensing distance of

150 mm

18-mmdia. at sensing distance of

200 mm

Standard sensing object

---

Differential travel

3% of sensing distance max.

15% of sensing distance max.

20% of sensing distance max.

Black/white error

5% of sensing distance max.

10% of sensing distance max.

20% of sensing distance max.

Directional angle

---

Light source (wavelength)

Red LED (650 nm)

Red LED (660 nm)

Power supply voltage

10 to 30 VDC, including 10% ripple (p-p)

Current consumption

25 mA max.

Control output

Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.)

Open-collector output (NPN/PNP output depending on model)

Light-ON/Dark-ON cable connection selectable

Protection circuits

Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection,

Mutual interference protection

Response time

Operate or reset: 1 ms max.

Sensitivity adjustment

---

Ambient illumination

(Receiver side)

Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.

Ambient temperature range

Operating:

−25 to 55°C, Storage: −40 to 70°C (with no icing or condensation)

Ambient humidity range

Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)

Insulation resistance

20 M

Ω min. at 500 VDC

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min

Vibration resistance

Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance

Destruction: 500 m/s2 3 times each in X, Y, and Z directions

Degree of protection *

IEC: IP67, DIN 40050-9: IP69K

Connection method

Pre-wired cable (standard length: 2 m)

M8 4-pin Connector

Indicator

Operation indicator (yellow), Stability indicator (green)

Weight

(packed

state)

Pre-wired mod-

els (with 2-m ca-

ble)

Approx. 90 g

Connector

models

Approx. 40 g

Materials

Case

SUS316L

Lens

PMMA (polymethylmethacrylate)

Display

PES (polyethersulfone)

Seals

Fluoro rubber

Accessories

Instruction sheet (Note: Mounting Brackets are sold separately.)
