8 | Safety Light Curtain F3SG-R Series

Muting

The F3SG-RA provides the advanced Muting function that disables beams which detect the presence

of a workpiece or the position of a machine or robot.

Workpieces can go in and out of a danger zone without stopping the machine.

Muting secured safety, but the set-up was time consuming.

Increase productivity by detecting

workpieces correctly

Easy adjustment

Adjustment

time reduced by

80%*

Multiple-beam sensor technology for vibrating workpieces

Smart muting actuator

The smart muting actuator extends the functions of the F3SG-R in

applications where a workpiece is vibrating forward and backward

This prevents unexpected machine downtime and significantly

reduces adjustment time.

Automatic partial muting for workpieces with various heights

Dynamic Muting

When workpieces with various heights are conveyed on the same line,

the dynamic muting function automatically sets the appropriate

beams, based on the height of the object.

* Partial muting: A function that allows specified beams (e.g., beams blocked by a workpiece) to be disabled, keeping others active, even during muting.

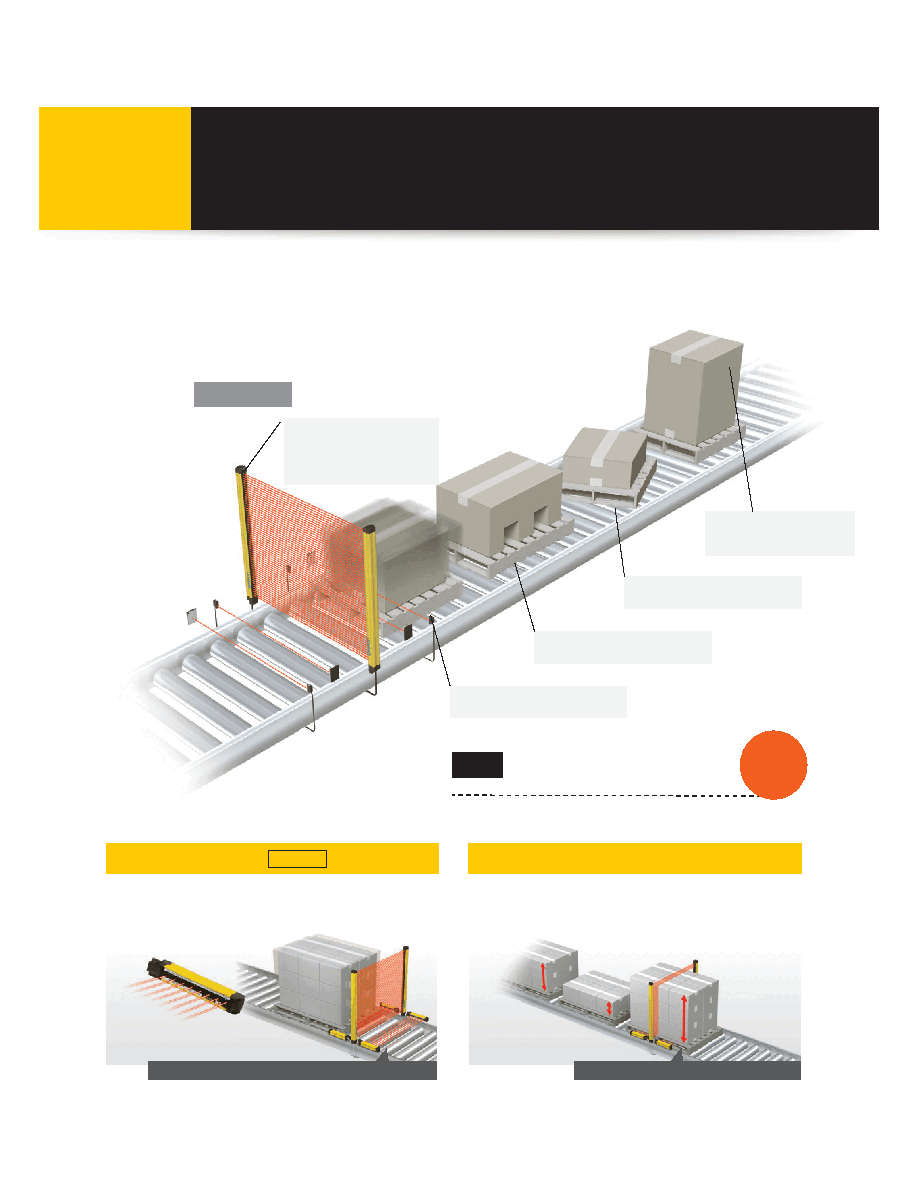

Automatic and flexible detection even under unstable conveying conditions

Smart muting actuator F3W-MA

Conventional Muting

Two auto-configuration functions significantly

reduce the adjustment time even under difficult

conditions where failure is likely to occur.

F3SG-R

OK, but big difference

between assumed and

setting ranges

ms, based on the height of the object.

Partial muting based on the detected workpiece height

Incorrect muting due to chattering in the

muting signal when a workpiece is vibrating

[Installation/wiring/adjustment]

.Many wires

.Many accessories

.Complex adjustment

Incorrect muting when a workpiece with

holes (e.g., car body) passes at low speed

Incorrect muting due to a rotated and

shifted workpiece

Time-consuming partial muting*

setting for workpieces with

various heights

F3SG-

Multifunctional

Advanced

type

* Compared to the previous model (Omron survey as of March 2017)

F3W-MA
