E5CC-RX2DBM-000 datasheet(35/138 Pages) OMRON

35 / 138 page

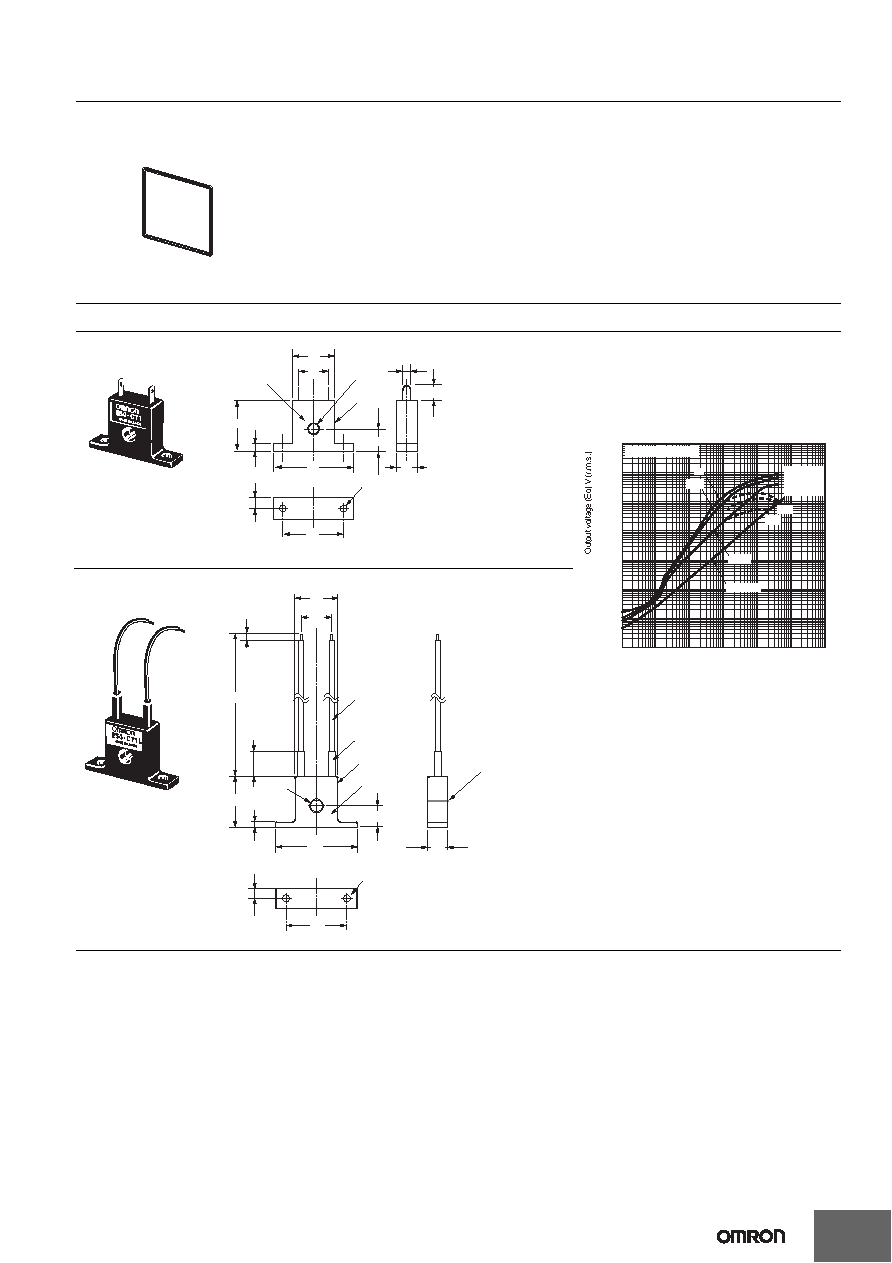

E5CC/E5CC-B/E5CC-U

Current Transformers

Waterproof Packing

Y92S-P8 (for DIN 48

× 48)

The Waterproof Packing is provided only with the E5CC/E5CC-B.

It is not included with the E5CC-U.

Order the Waterproof Packing separately if it becomes lost or damaged.

The Waterproof Packing can be used to achieve an IP66 degree of protection.

(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the

operating environment. Therefore, periodic replacement is recommended to ensure the level of

waterproofing specified in IP66. The time for periodic replacement depends on the operating

environment. Be sure to confirm this point at your site.

Consider three years as a rough standard.)

The E5CC-U cannot be waterproofed even if the Waterproof Packing is attached.

5.8 dia.

Two, 3.5 dia.

2.5

10.5

2.8

7.5

Filler

(epoxy)

Case

E54-CT1

Thru-current (Io) vs. Output Voltage (Eo)

(Reference Values)

E54-CT1 or E54-CT1L

Maximum continuous heater current: 50 A (50/60 Hz)

Number of windings:

400

±2

Winding resistance:

±2 Ω

Thru-current (Io) A (r.m.s.)

100mA

100 1,000A

100V Frequency: 50 Hz

Distortion

factor

10%

100Ω

RL=10Ω

∞

100mV

100μV

1kΩ

E54-CT1L

5.8 dia.

Filler (epoxy)

Case (PBT)

Shrinkable tube

Two, 3.5 dia.

Cable (AWG18)

2.5

115±5

10.5

Mark (yellow)

(12)
