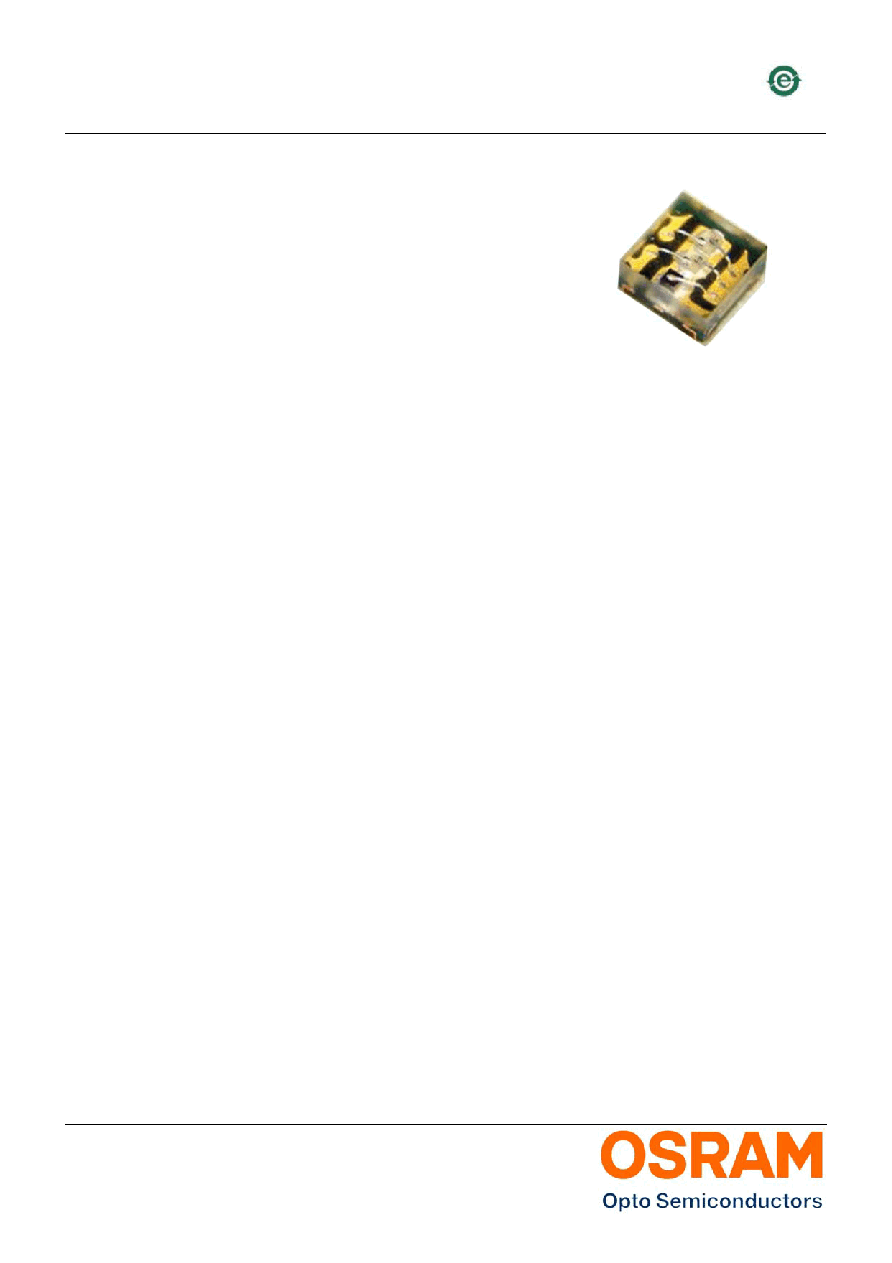

LRTB R48G

Multi C

hip LED

Data Sheet

Version 1.

9

20

21-09-30

1

Das Bauteil ist speziell für den Einsatz in

Vollfarb-Videowänden entwickelt worden. Die

4-lead common anode Technologie läßt eine

unahängige Ansteuerung aller Chips zu und bietet

dadurch eine additive Farbmischung. Durch die

kompakten Gehäuseabmaße ist es bestens für

Videowände mit hoher Auflösung und geringem

Pixelabstand geeignet.

Merkmale

• Gehäusetyp: SMT Gehäuse, Harz Verguss

• Farbe: Rot/True Grün/Blau, 623 nm (rot),

530 nm (true grün), 471 nm (blau)

• Abstrahlwinkel: Lambertscher Strahler (120°)

• Chiptechnologie: InGaAlP (rot),

InGaN (true grün, blau)

• Lötmethode: Reflow lötbar

• Vorbehandlung: nach JEDEC Level 4

• ESD-Festigkeit: ESD-sensitiv

Anwendungen

• Videoleinwände im Innenbereich

• Vollfarb-Displays

This device is especially designed for full color

video

walls.

The

4-lead

common

anode

technology admits an additive mixture of color

stimuli by independent driving of each chip. Very

compact package size fits best for high resolution

narrow pitch video walls.

Features

• package: SMT package, epoxy resin

• color: red/true green/ blue, 623 nm (red),

530 nm (true green), 471 nm (blue)

• viewing angle: Lambertian Emitter (120°)

• chiptechnology: InGaAlP(red),

InGaN (true green, blue)

• soldering methods: reflow solderable

• preconditioning: acc. to JEDEC Level 4

• ESD-withstand voltage: sensitive device

Applications

• Indoor Video Walls

• full color display
