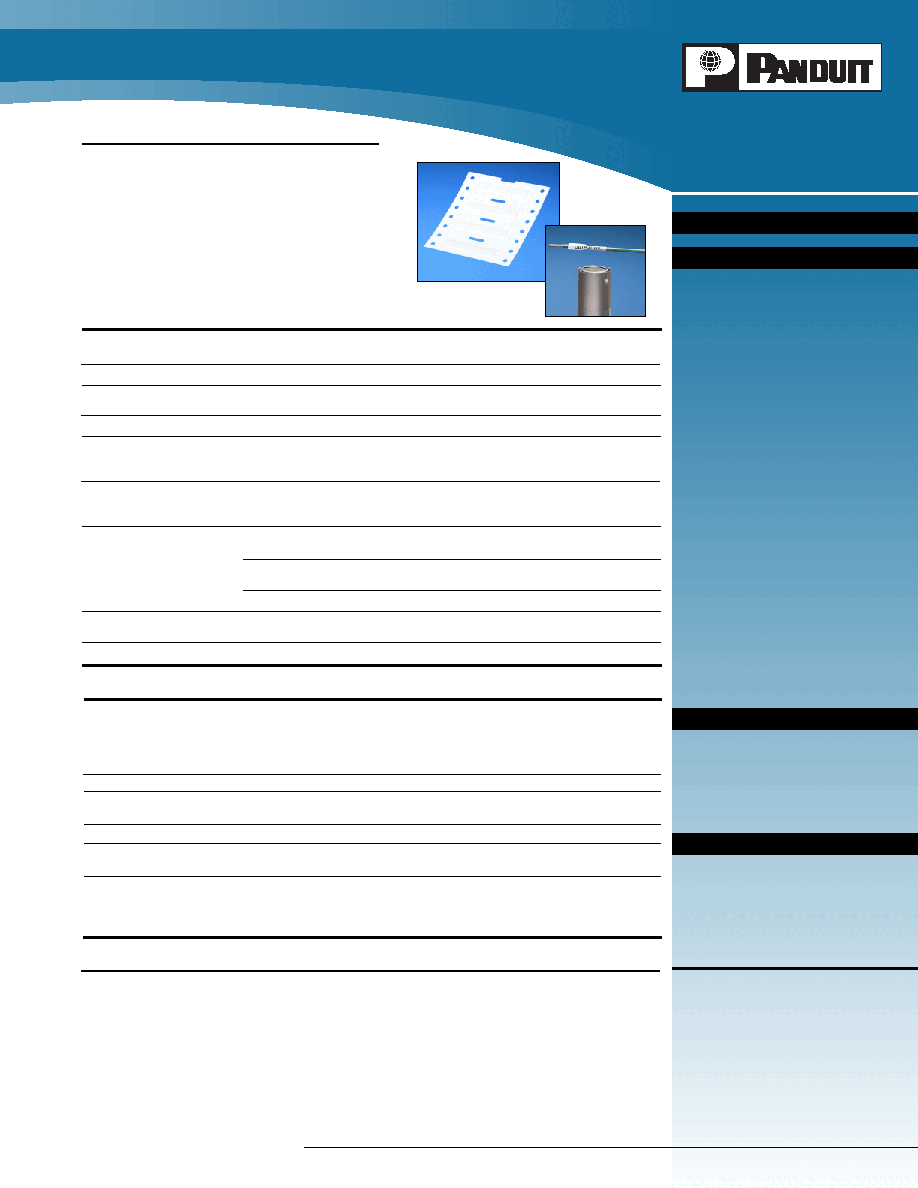

Material:

Pre-cut, heat-shrinkable flattened polyolefin meets the material requirements

and physical properties of AMS-DTL-23053/5C (Class 1 and Class 3)

Print method:

Thermal transfer or dot-matrix

Service temperature

– 67°F to 275°F (– 67°C to 135°C)

range:

Shrink temperature:

194°F to 248°F (90°C to 120°C)

Printability:

Product meets print performance of MIL-M-81531 and MIL-STD-883E,

Notice 4, Method 2015.13 when printed with RMH4BL or RMR4BL

series thermal transfer ribbons

Tested for nuclear

Printed markers meet requirements for radiation exposure, thermal aging,

plant (class 1E)

and LOCA/MSLB environmental testing; test margins related to

harsh environments:

IEEE 323-2003 were used (white and yellow only)

Recommended ribbon:

Normal use: Hybrid – RMH4BL for TDP43MY series printer or RHH4BL-S

for TDP42HY series printer

Most durable use: Resin – RMR4BL for TDP43MY series printer

or RHR4BL-S for TDP42HY series printers

For use with black color heat shrink - White ribbon RMR4WH should be used

RoHS compliance:

Material is RoHS compliant per European Directive 2002/95/EC on the

Restriction of Hazardous Substances (RoHS)

Flammability:

Product passes UL 224 Standard, VW-1 for flammability

key features and benefits

applications

technical information

specifications

Military grade heat shrink labels shall be pre-cut,

heat-shrinkable flattened polyolefin and shall readily

accept thermal transfer print. The product shall meet

the material requirements and physical properties of

AMS-DTL-23053/5C (Class 1 and Class 3). Product

shall meet print performance of MIL-M-81531 and

MIL-STD-883E, Notice 4, Method 2015.13 when

printed with RMH4BL or RMR4BL series thermal

transfer ribbons. Product shall pass UL 224 standard

with a VW-1 for flammability.

Durable material

Enables use in harsh environments, meeting material requirements and

physical properties of AMS-DTL-23053/5C (Class 1 and Class 3), passing UL 224,

meeting print performance requirements of MIL-M-81531 and MIL-STD-883E,

Notice 4, Method 2015.13 and meeting testing requirements for nuclear plant

(Class 1E) harsh environments (white and yellow only)

Liner perforation

Allows heat shrink labels to be printed and removed one at a time with ease

Open end design

Wire/cable can be inserted directly into the label sleeve to reduce installation

and assembly time

Variety of colors

Available in white, yellow, black and red

3 to 1 shrink ratio

Provides fast shrinking and covers a wide range of wire diameters,

simplifying inventory

Labeling software

Generate labels quickly and easily with

PANDUIT ®EASY-MARK ™Labeling

capabilities

Software; labeling application tools assist in the creation of optimum

identifiers and labels for common applications, advanced importing and

bar-coding capabilities reduce errors and save time

PANDUIT military grade heat shrink labels

are designed to meet the wire and cable labeling

needs of organizations with high performance

requirements. The labels are pre-cut,

heat-shrinkable flattened polyolefin that readily

accept thermal transfer print. This solution provides

a lower operating temperature, more durable label

and printed legends that meet stringent military

standards and tests. The product meets the

material requirements and physical properties

of AMS-DTL-23053/5C (Class 1 and Class 3),

print performance of MIL-M-81531 and

MIL-STD-883E, Notice 4, Method 2015.13 when

printed with RMH4BL and RMR4BL-S thermal

transfer ribbons, passes UL 224 standard with a

VW-1 for flammability and meets testing

requirements for nuclear plant (Class 1E) harsh

environments (white and yellow only). When used

in conjunction with

PANDUIT ® EASY-MARK ™ Labeling

Software, time-savings and reduced errors can be

realized when creating legends and text.

Military Grade Heat Shrink Labels

®

SPECIFICATION SHEET

Military Grade Heat Shrink Labels

Nominal Size

Part Number

1/8" (3.1mm)

diameter:

H050X025H*T

H075X025H*T

H100X025H*T

H150X025H*T

H200X025H*T

3/16" (4.7mm)

diameter:

H050X034H*T

H075X034H*T

H100X034H*T

H150X034H*T

H200X034H*T

1/4" (6.3mm)

diameter:

H050X044H*T

H075X044H*T

H100X044H*T

H150X044H*T

H200X044H*T

3/8" (9.5mm)

diameter:

H050X064H*T

H100X064H*T

H200X064H*T

1/2" (12.7mm)

diameter:

H100X084H*T

H200X084H*T

1" (25.4mm)

diameter:

H100X165H*T

H200X165H*T

*Colors available, replace * with 1 (White),

2 (Yellow), 3 (Black), and 4 (Red).

Labeling Software

EASY-MARK™

Labeling

Software:

PROG-EMCD3

CAD-CONNECT ™

Labeling

Software:

PROG-CCCD

Thermal Transfer Desktop Printers

Medium volume

300 dpi:

TDP43MY

High volume

200 dpi:

TDP42HY

300 dpi:

TDP43HY

600 dpi:

TDP46HY
