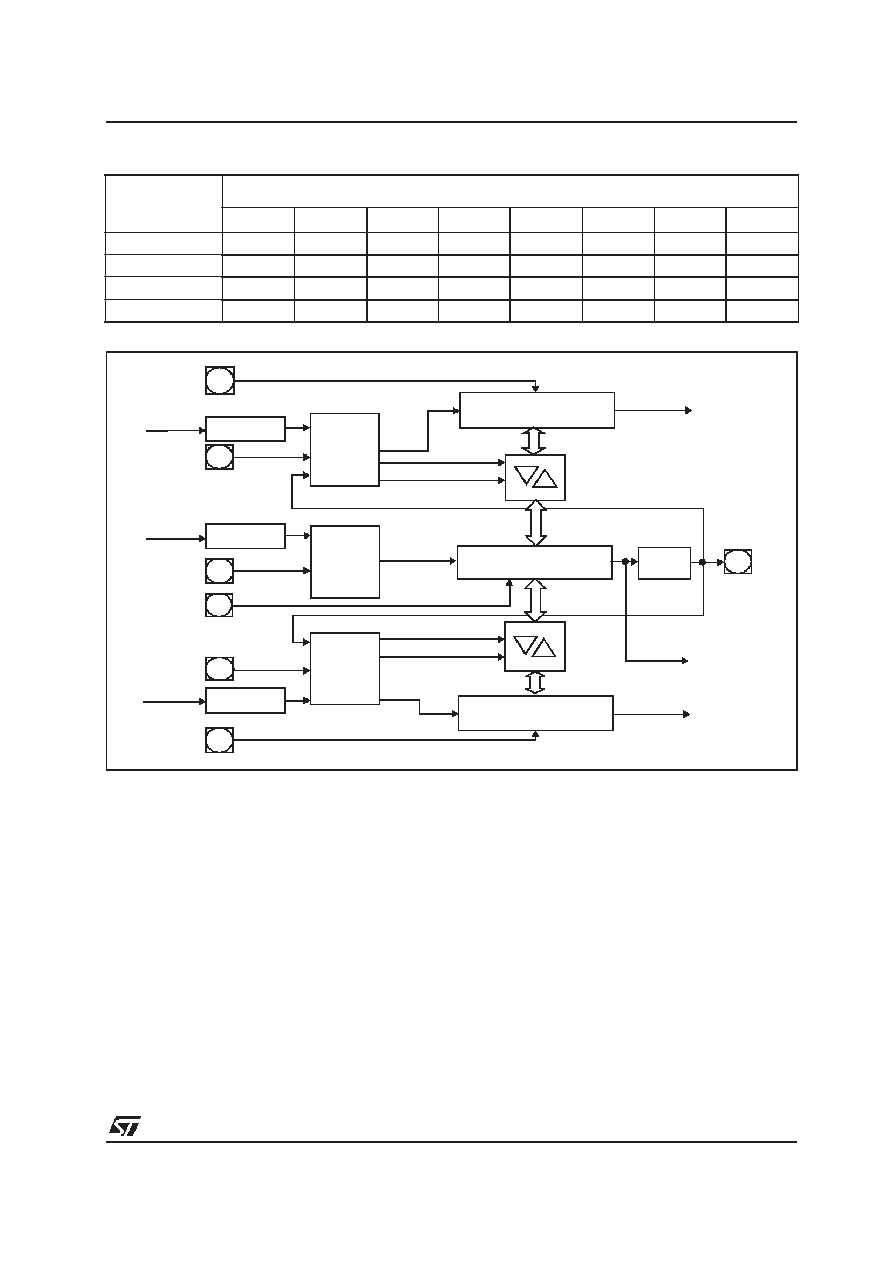

21 / 58 page  ST10F163 21/58 Table 9 : GPT2 timer input frequencies, resolution and period fCPU = 25MHz Timer Input Selection T5I / T6I 000B 001B 010B 011B 100B 101B 110B 111B Pre-scaler factor 4 8 16 32 64 128 256 512 Input Frequency 6.25MHz 3.125MHz 1.563MHz 781.3kHz 390.6kHz 195.3kHz 97.66kHz 48.83kHz Resolution 160ns 320 ns 640 ns 128 ns 2.56 µs 5.12 µs 10.24 µs 20.48 µs Period 10.49ms 21.0 ms 41.9 ms 83.9 ms 167 ms 336 ms 671 ms 1.34 s Figure 6 : Block diagram of GPT1 2n n=3...10 2n n=3...10 2n n=3...10 T2EUD T2IN CPU Clock CPU Clock CPU Clock T3IN T4IN T3EUD T4EUD T2 Mode Control T3 Mode Control T4 Mode Control GPT1 Timer T2 GPT1 Timer T3 GPT1 Timer T4 T3OTL Reload Capture U/D U/D Reload Capture Interrupt Request Interrupt Request Interrupt Request T3OUT U/D |
|
