Fiber Optic Receiver
MOF-R3C5

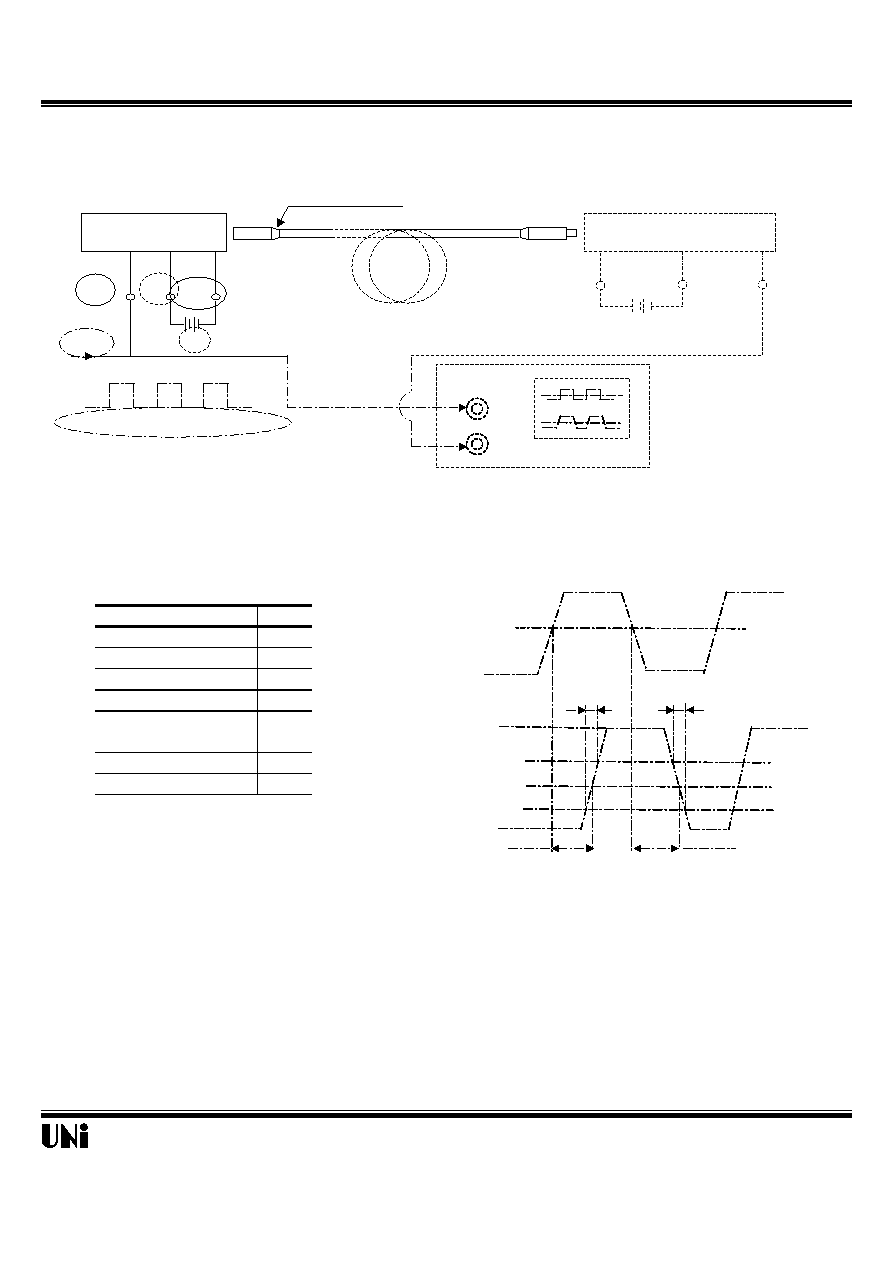

Fig. 2 Measuring Method of Output Voltage and Pulse Response
Fiber optic cable
Test item
Symbol
Low to High pulse delay time
t
PLH
High to Low pulse delay time
t
PHL
Rise time
t
r
Fall time
t
f
∆tw
High level output voltage
V
OH
Low level output voltage
V
OL
REV: A1
Test item
Pulse width distortion
∆tw = t
PHL - t PLH
01/07/2002
Unity Opto Technology Co., Ltd.
Standard transmitter
MOF-T3C5
Vin
GND
VCC
5V
MOF-R3C5
CH2
CH1
Oscilloscope
Input
12.5 Mbps NRZ, Duty 50%
VCC
GND
VOUT
tr
tPLH
90%
VOL
VOH
50%
50%
10%
tf
tPHL
Standard transmitter
Input signal
(CH1)
Output signal
(CH2)
VCC
4/4



Html Pages

1 2 3 4


Scheda tecnica Scarica

Go To PDF Page


Link URL
