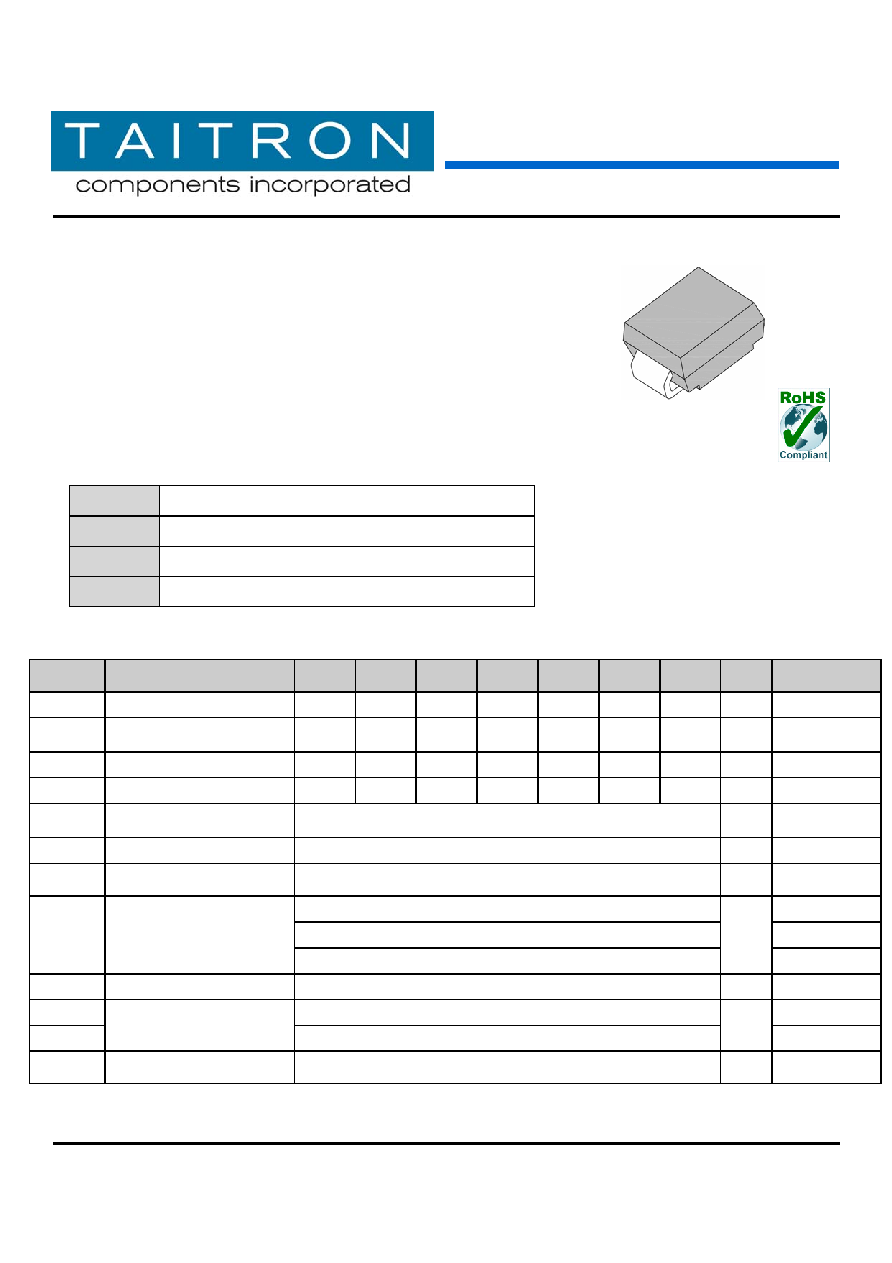

1 / 5 page  Rev. B/AH 2008-05-26 GF3AB - GF3MB 3.0A Surface Mount Sintered Glass Passivated Rectifier TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Page 1 of 5 Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060 Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415 3.0A Surface Mount Sintered Glass Passivated Rectifier Features • Sintered glass passivated (SGP) rectifier chip • Glass passivated cavity-free junction • High forward surge current capability • Plastic package has underwriters laboratory flammability classification 94V-0 • High temperature soldering: 260 °C / 10 seconds at terminals • RoHS compliant Mechanical Data Case: JEDEC SMB(DO-214AA) molded plastic Terminals: Solder plated solderable per MIL-STD-750, Method 2026 Polarity: Cathode end indicated by color band Weight: 0.004 Ounce, 0.12 gram Maximum Ratings & Electrical Characteristics (T Ambient=25ºC unless noted) Symbol Description GF3AB GF3BB GF3DB GF3GB GF3JB GF3KB GF3MB Unit Conditions Marking Code GF3A GF3B GF3D GF3G GF3J GF3K GF3M VRRM Max. Recurrent Peak Reverse Voltage 50 100 200 400 600 800 1000 V VRMS Max. RMS Voltage 35 70 140 280 420 560 700 V VDC Max. DC Blocking Voltage 50 100 200 400 600 800 1000 V IF(AV) Max. Average Rectified Current 3.0 A IFSM Peak Forward Surge Current 115 A VF Max. Instantaneous Forward Voltage 1.0 V IF=3.0A 5 TA=25 °C 50 TA=125 °C IR Max. DC Reverse Current at Rated DC Blocking Voltage 100 µA TA=150 °C CJ Typical Junction Capacitance 40 pF Rθ-JA 47 Rθ-JL Max. Thermal Resistance 13 ° C/W TJ,TSTG Operating Junction and Storage Temperature Range -65 to 175 ° C SMB (DO-214AA) |
