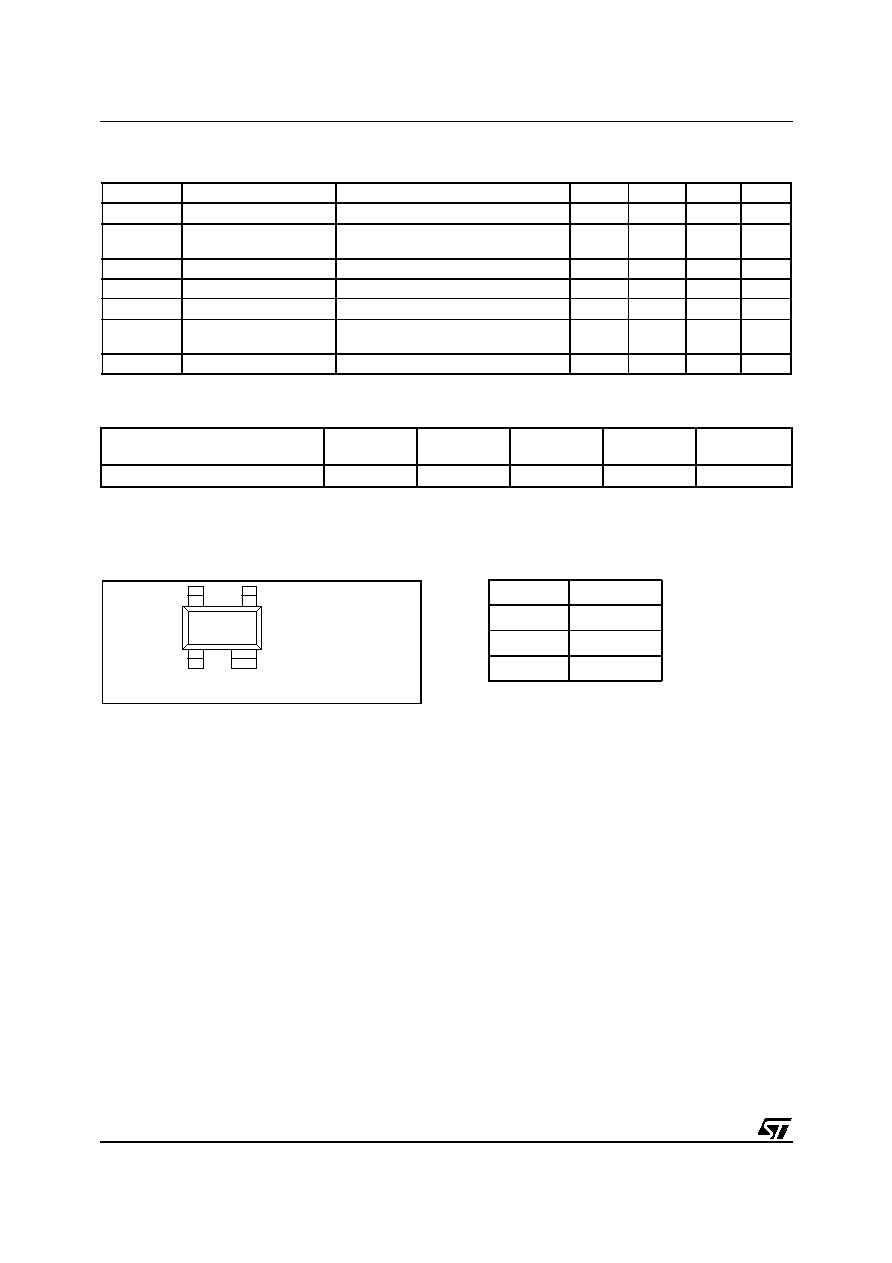

background image
START499
2/7
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
Icbo
Collector cutoff current
Vcb = 5V, Ie = 0A
1.2
µA
Iebo
Emitter-base cutoff
current
Veb = 1.5V, Ic = 0A
120
µA
Hfe
DC current gain
Ic = 160mA, Vce = 4V
160
G
Power gain
Ic =200mA, Vce = 3V, f = 1.8GHz
15
dB
P-1dB
1dB compression point
Ic = 200mA,Vce = 3V, f = 1.8GHz
23.5
dBm
IP3
Ouput third order
intercept point
Ic = 200mA,Vce = 3V, f = 1.8GHz
33.5
dBm
NF
Noise Figure
Ic = 200mA,Vce = 3V, f = 1.8GHz
3.3
dB
ELECTRICAL CHARACTERISTICS (Tj=25
oC,unless otherwise specified)
QUICK REFERENCE DATA
MODE OF OPERATION
f
(GHz)
VCE
(V)
PL
(dBm)
GP
(dB)
η
(%)
Class-AB (Icq = 5mA)
1.9
3.6
26
≥12
typ. 68
PINOUT
PIN CONNECTION
Pin No.
Description
1
BASE
3
COLLECTOR
2,4
EMITTER
SOT343
4
12
3
Top view
