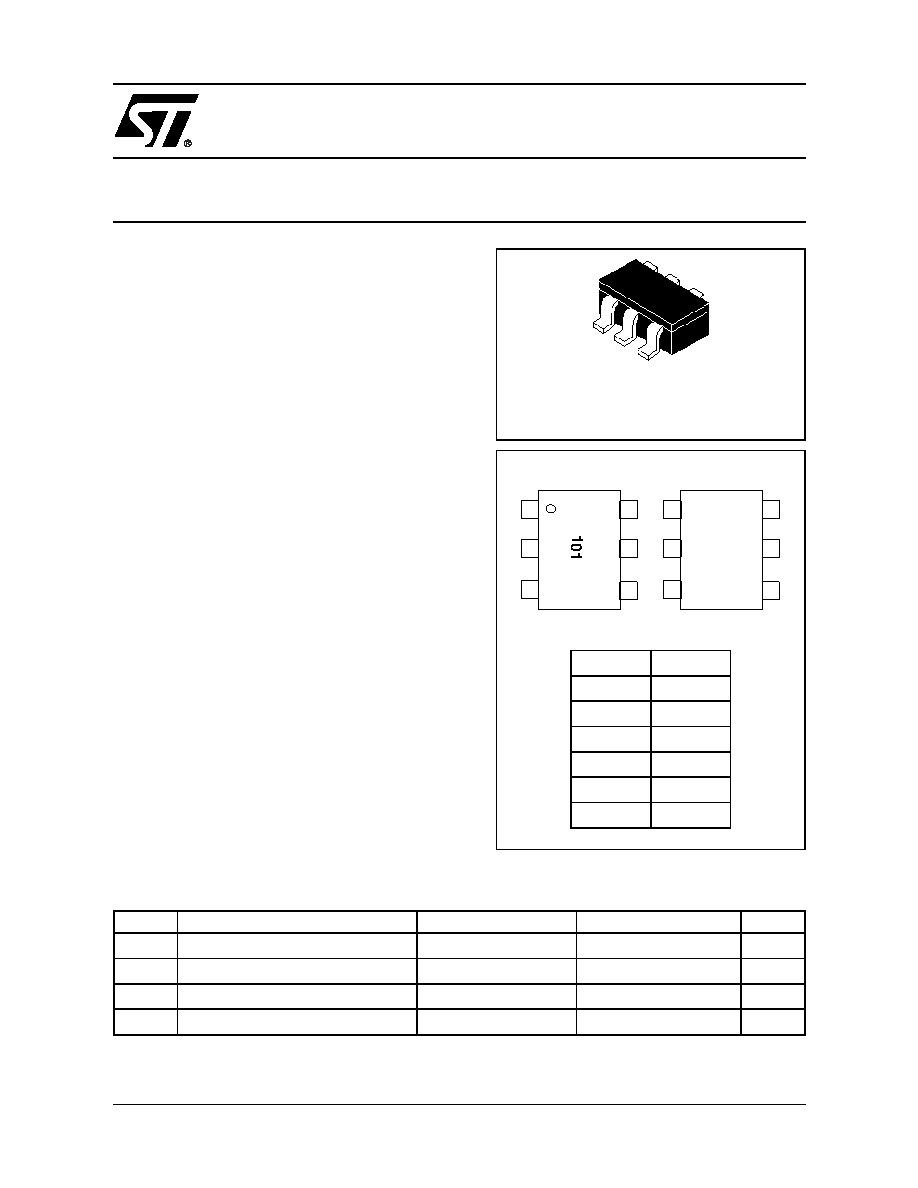

STB7101

0.9/1.9GHz BROAD BAND PRE-POWER AMPLIFIER

SOT323-6L (SC70)

ORDER CODE

STB7101

BRANDING

101

1

2

3

6

5

4

(Bottom View)

6

5

4

1

2

3

(Top View)

PIN CONNECTION

Pin No.

Pin Name

1GND

2GND

3

INPUT

4VCC

5GND

6

OUTPUT

• OPERATING FREQUENCY 900-1900MHz

• OUTPUT POWER 9.8dBm typ. @ 900MHz

7.5dBm typ. @ 1900MHz

• POWER GAIN GP = 20.3dB typ. @ 900MHz

GP = 20.5dB typ. @ 1900MHz

APPLICATIONS

PA driver for cellular applications

DESCRIPTION

The STB7101, designed for cellular applications

(0.9/1.9GHz), uses a 20 GHz FT silicon bipolar

process. This IC is a wide range amplifier operating

from

900MHz

to

1900MHz,

in

the

overall

frequencies range the gain flatness is less than 1

dB. The STB7101 is housed in a very small SMD

package SOT323-6L.

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Conditions

Value

Unit

Vcc

Supply voltage

Ta = +25

oC, pin 4 and 6

4.5

V

Tstg

Storage temperature

-55 to +150

oC

Ta

Operating ambient temperature

-40 to +85

oC

Input power

Ta= +25

oC

10

dBm
