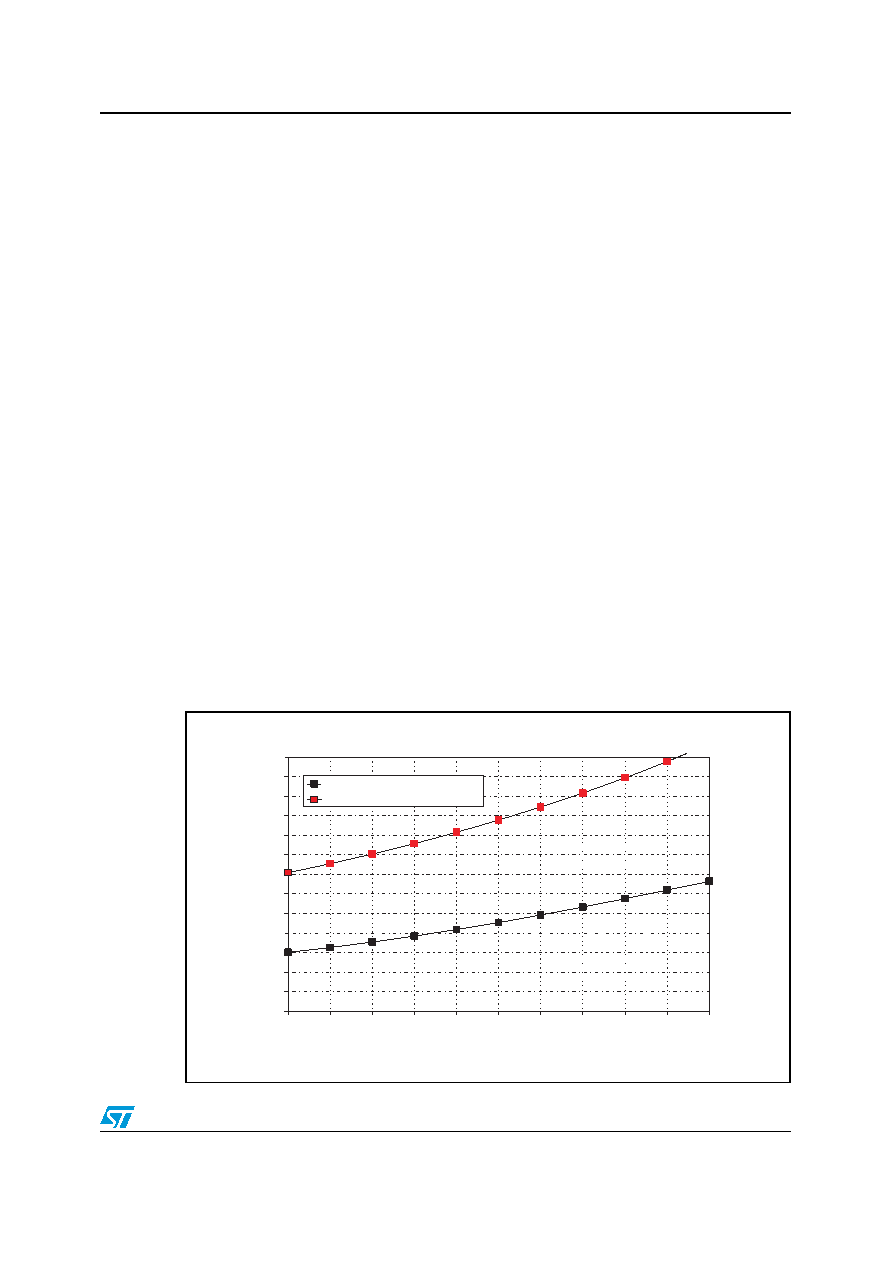

background image
STCC08
Functional description
5/13
2
Functional description
STCC08 functional description
The STCC08 is a power circuit designed to drive up to 10 mA IGT AC switches and to detect
AC switch failure modes through MCU diagnostic.
It embeds a logic switch driver, an AC switch diode mode detection, a short circuit detection
and an AC switch open detection.
STCC08 can be powered by a 3.3 V or 5 V power supply voltage.
Switch driver
This driver is a logic level buffer (CMOS compatible) interfacing directly with the AC switch
and the microcontroller.
The AC switch must be driven in negative polarity: AC switch COM = A1 = VCC
The drive Boolean rule is:
Vin > Von: switch = ON
Vin < Von: switch = OFF
The AC switch can be driven in continuous, pulsed or angle phase modes.
In insulated applications, the input can be driven through an opto-coupler powered with a
non-insulated auxiliary power supply.
RIG pin allows the AC switch gate current to be set. A resistor must be connected between
this pin and the ground GND. This resistor is defined according to the miminmum ambient
temperature and the AC switch IGT (see Figure 3). This optimizes the consumption of the
application.
Figure 3.
Rig = f(Tamb_min) for 5/10 mA AC switches
0
10
20
30
40
50
60
70
80
90
100
110
120
130
-20
-15
-10
-5
0
5
10
15
20
25
30
RIG_Max(
Ω)
AC switch 10 mA @ 25 °C
AC switch 5 mA @ 25 °C
Tamb_min (°C)
