I/O bus interface description
STLS2F01
18/48

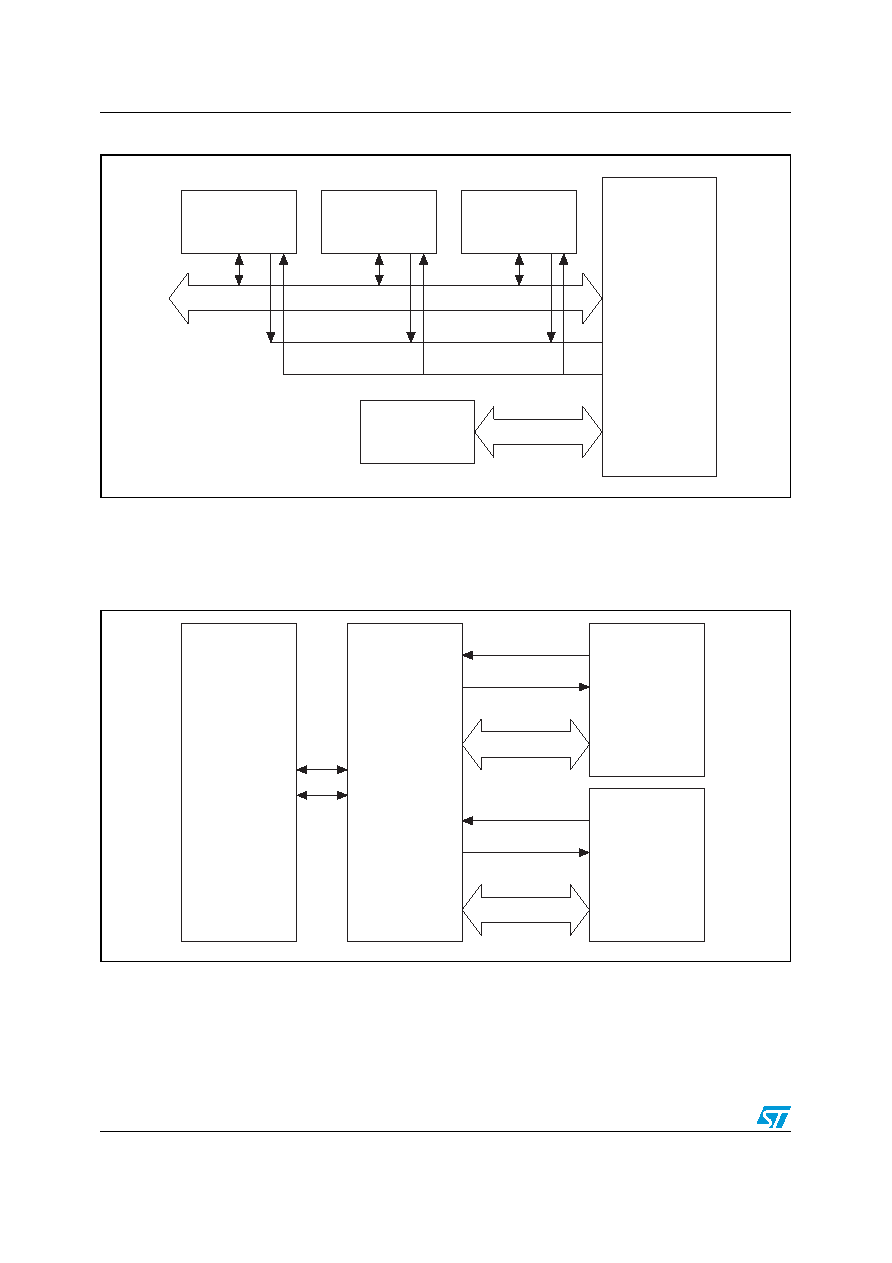

Figure 3.
STLS2F01 uniprocessor system connection
●
Multiprocessor system connections
Figure 4.
STLS2F01 multiprocessor system connections
3.5
Local bus description
Local bus is a simple peripheral interface. It’s mainly used to connect to boot ROM. There
are two chip select signals, and corresponding configurable data width and access delay.
