VT5366
Design notes
7/30

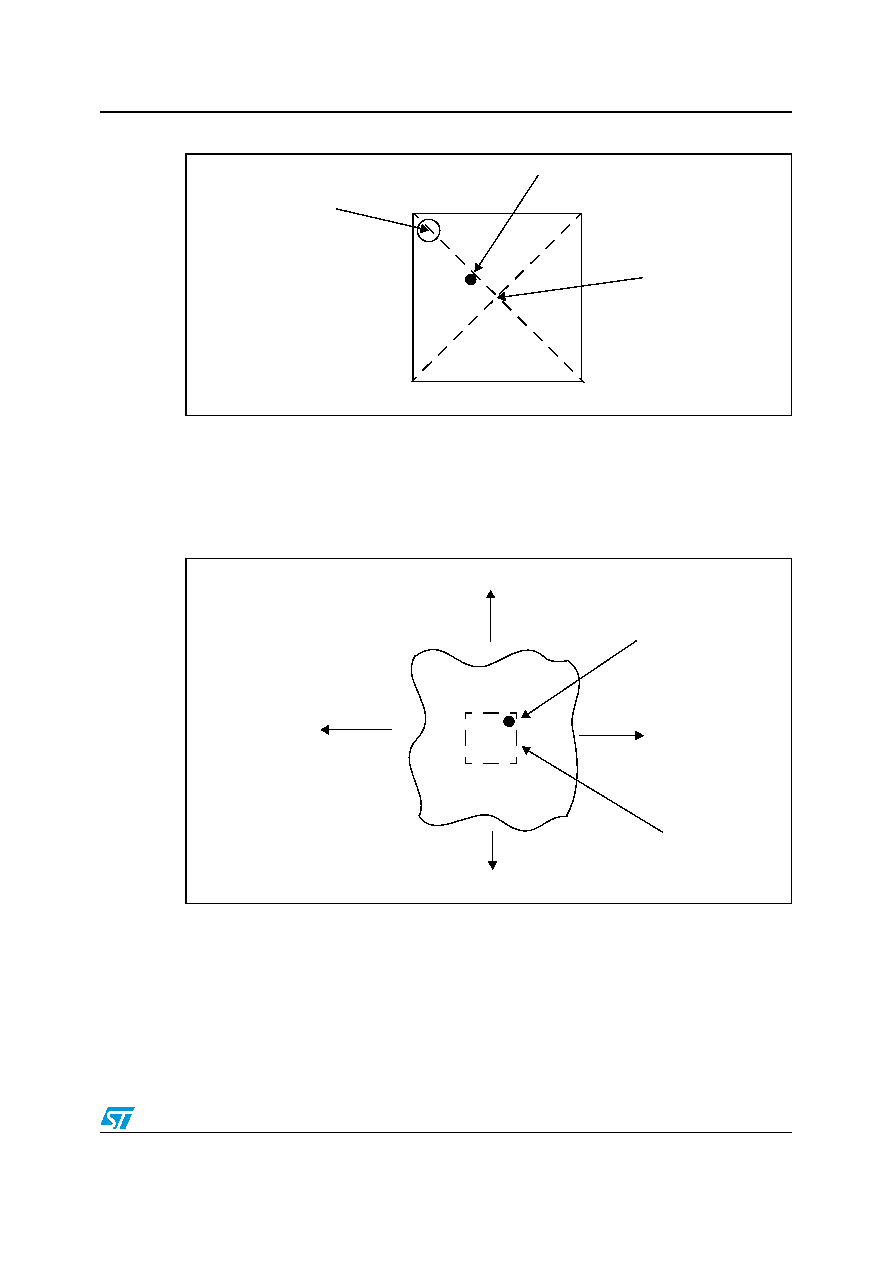

Figure 4.
VT5366 optical centre
3.3
Sensor orientation on PCB
The VT5366 must be orientated correctly on the PCB in order to move the cursor in the
correct directions when the mouse is moved. This is shown in
Figure 5.
Figure 5.
VT5366 optical centre
Optical centre (-0.243mm, +0.215mm)
mechanical centre
of package (0,0)
pin 1 marking
TOP VIEW OF VT5366
pin 1 marking
TOP VIEW of PCB
UP
DOWN
LEFT
VT5366 mounted UNDERNEATH
RIGHT
