Application information
LED7707
40/48
Figure 22.

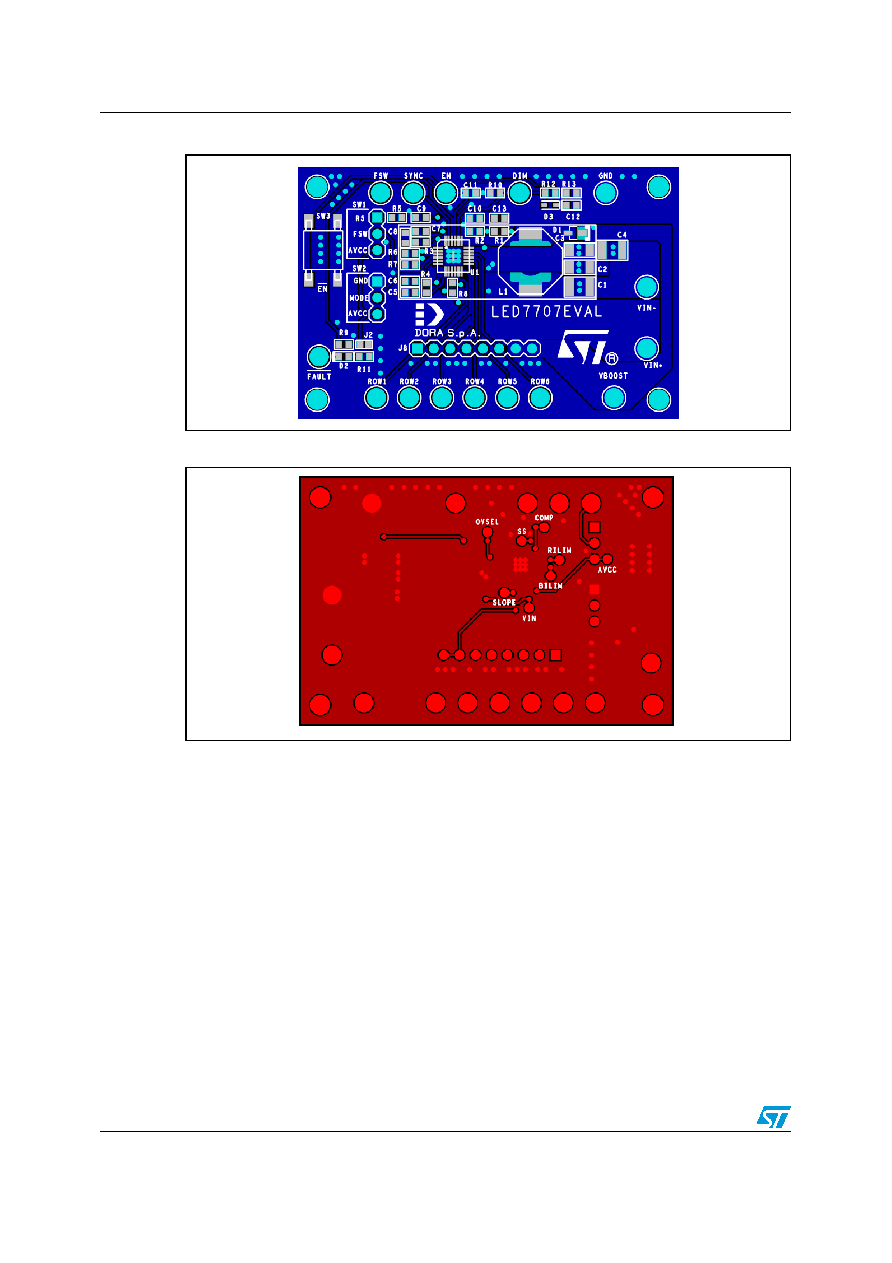

Demonstration board layout (top view)
Figure 23.
Demonstration board layout (bottom view)
Figure 24
shows the LED7707 demonstration board application circuit, whereas Table 10
lists the used components and their value.
