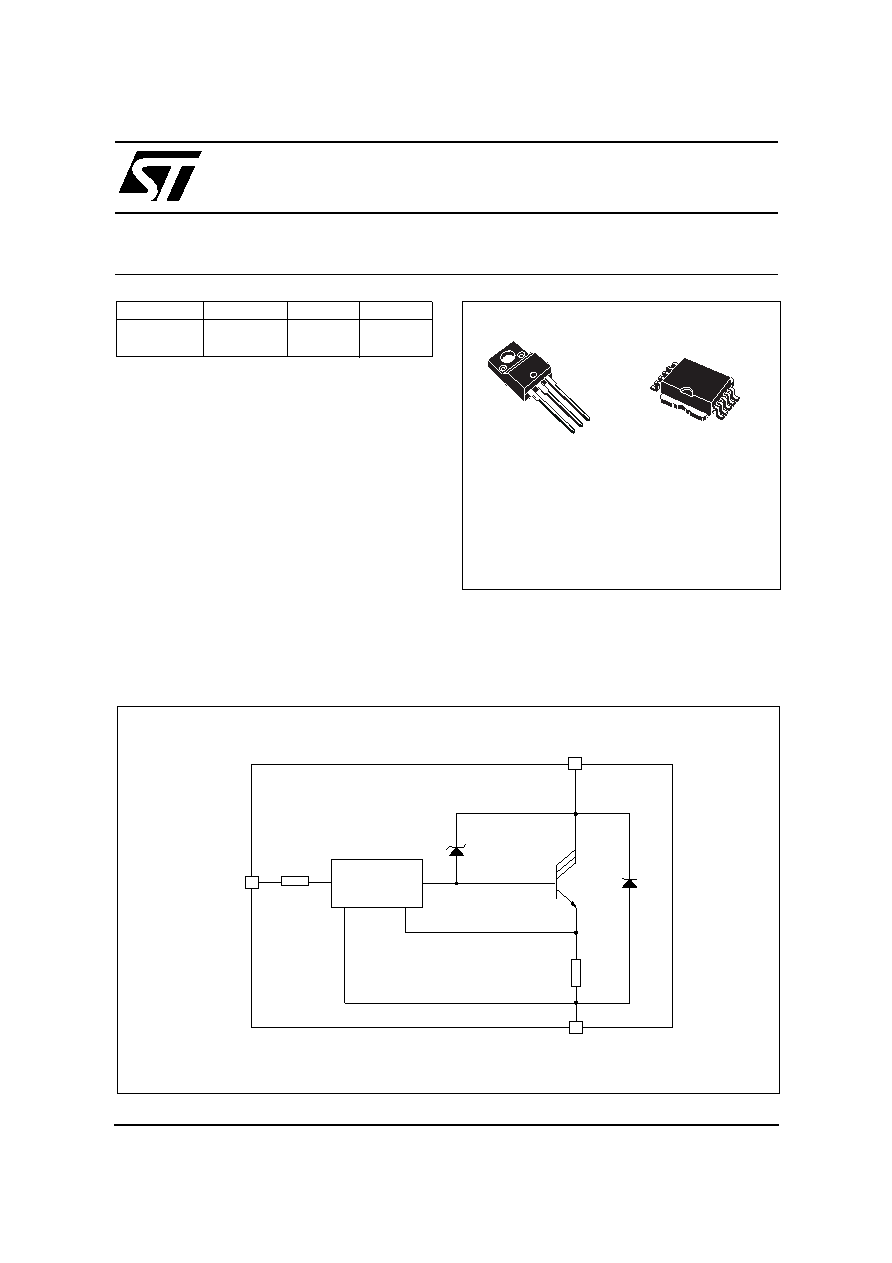

 1 / 7 page
background image
October 2000
1/7
®
VB921ZVFI
/ VB921ZVSP
HIGH VOLTAGE IGNITION COIL DRIVER
POWER I.C.
n NO EXTERNAL COMPONENT REQUIRED
n INTEGRATED HIGH VOLTAGE CLAMP
n COIL CURRENT LIMIT INTERNALLY SET
n HIGH RUGGEDNESS
DESCRIPTION
The VB921ZVFI, VB921ZVSP is a monolithic high
voltage
integrated
circuit
made
using
the
STMicroelectronics VIPower™ M1-2 technology,
which combines a vertical current flow power
trilinton with a coil current limiting circuit and a
collector
voltage
clamping.
The
device
is
particularly
suitable
for
application
in
high
performance electronic car ignition, where coil
current limitation and voltage clamping are
required.
TYPE
Vcl
Icl
Vcg(sat)
VB921ZVFI
VB921ZVSP
340V
7.5A
2.5V
1
ISOWATT220
BLOCK DIAGRAM
PowerSO-10™
1
10
1
2
3
GND
ND8012
CONTROL
UNIT
R
SENSE
VIN
HVc
ORDER CODES:
ISOWATT220
POWERSO-10™
VB921ZVFI
VB921ZVSP
