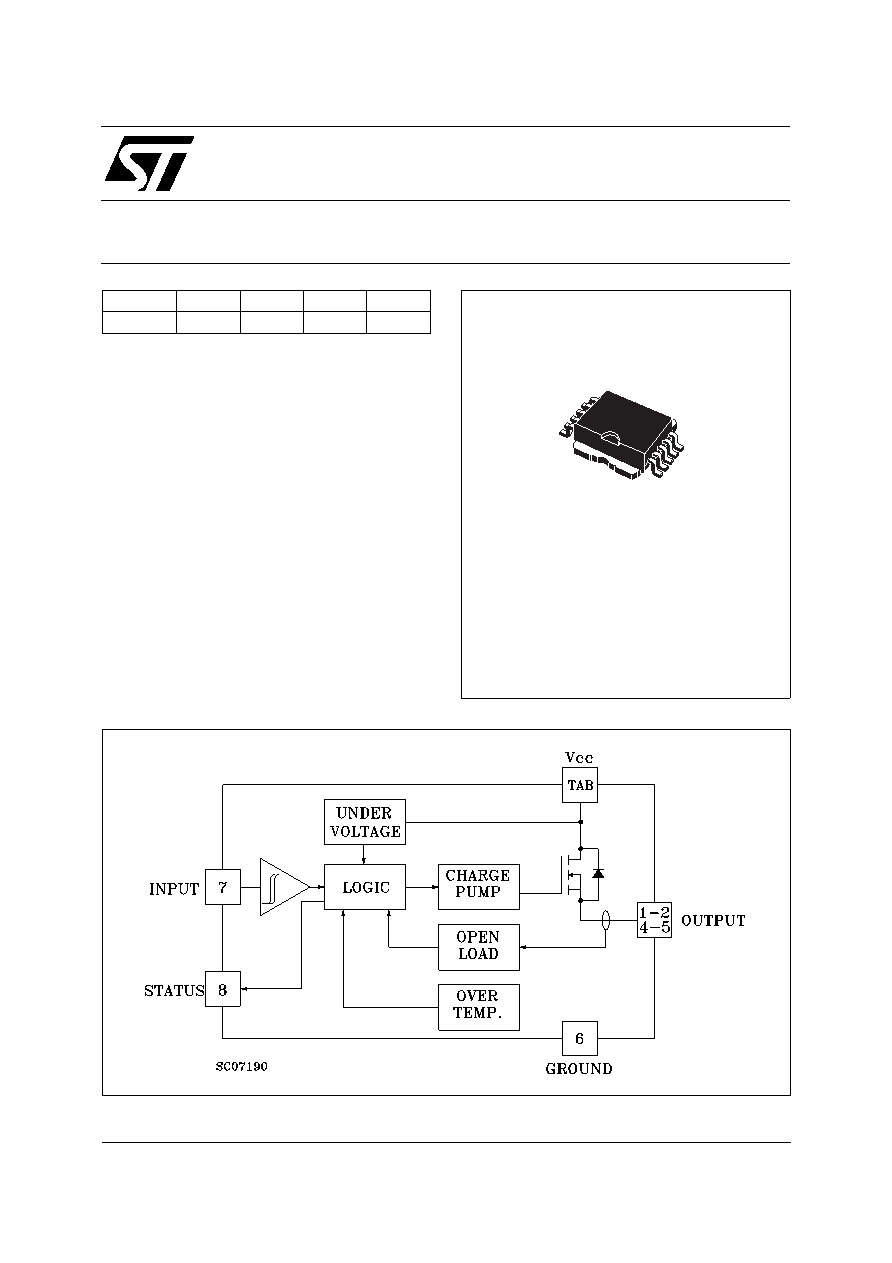

VN02HSP
HIGH SIDE SMART POWER SOLID STATE RELAY
®
August 1998
1
10
PowerSO-10
™
™
BLOCK DIAGRAM
TYPE
VDSS
RDS(on)IOUT
VCC
VN02HSP
60 V
0.4
Ω
6 A
36 V
s
OUTPUT CURRENT (CONTINUOUS):
6A @ Tc=25
oC
s
5V LOGIC LEVEL COMPATIBLE INPUT
s
THERMAL SHUT-DOWN
s
UNDER VOLTAGE SHUT-DOWN
s
OPEN DRAIN DIAGNOSTIC OUTPUT
s
VERY LOW STAND-BY POWER
DISSIPATION
DESCRIPTION
The VN02HSP is a monolithic devices made
using STMicroelectronics VIPower Technology,
intended for driving resistive or inductive loads
with one side grounded.
Built-in thermal shut-down protects the chip from
over temperature and short circuit.
The input control is 5V logic level compatible.
The open drain diagnostic output indicates open
circuit (no load) and over temperature status.
