Ultra-Miniature SMT Slides

Series SS3

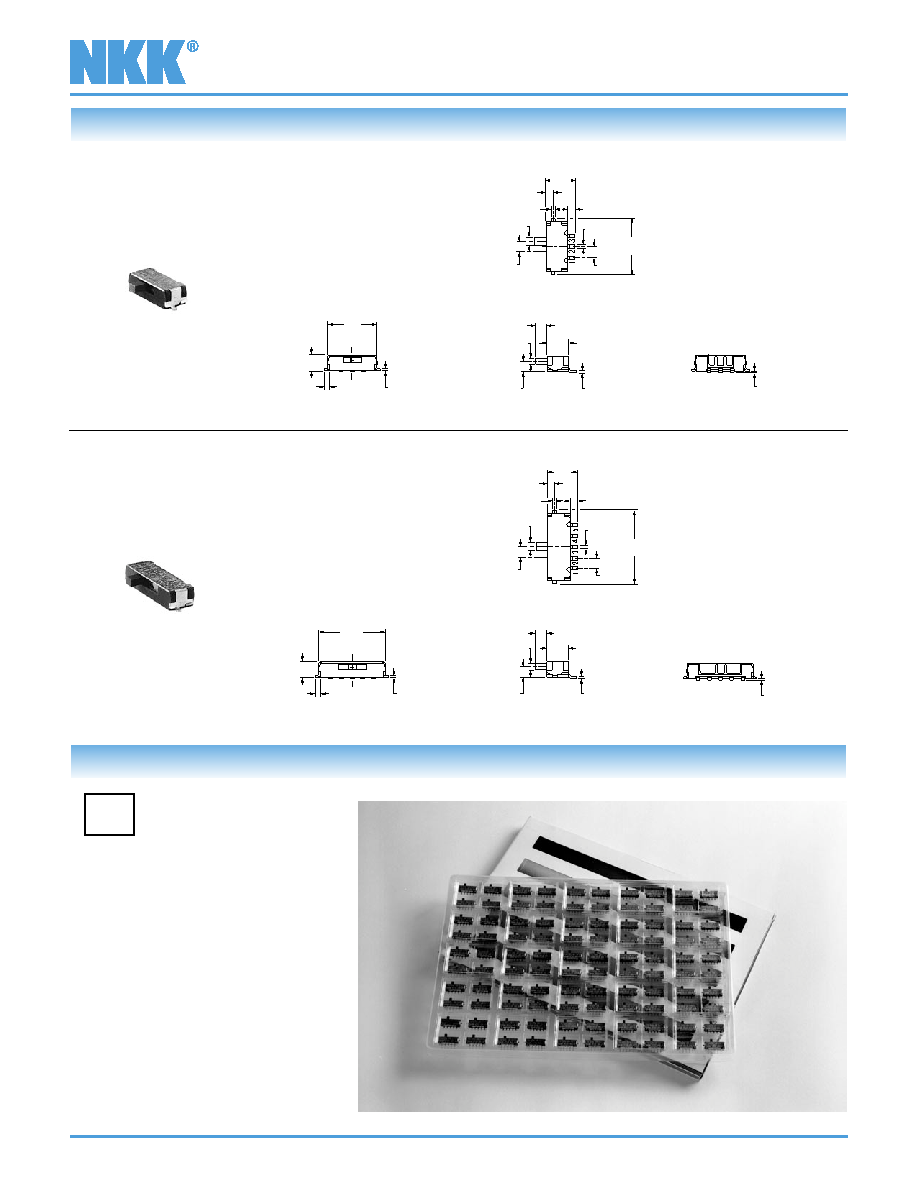

TYPICAL SWITCH DIMENSIONS

Shorting Contacts

Single Pole

Nonshorting Contacts

Single Pole

SS312SAH4

SS314MAH4

Partitioned Tray

If the SS3 is ordered in less

than 500-piece increments,

the switches are packaged in

a partitioned tray. No code

is required.

No

Code

PACKAGING

1 2 3

(0.15) Max

.0059

(2.0) Typ

.079

(2.0) Travel

.079

(1.4)

.055

(0.7)

.028

(1.5)

.059

(5.45)

.2146

(1.35)

.053

(10.5)

.413

(0.6) Typ

.024

(2.9)

.114

(0.95) Typ

.0374

(0.2) Typ

.0079

(9.2)

.362

1 2 3 4 5

(0.15) Max

.0059

(2.0)

.079

(1.2)

.047

(4.2)

.165

(2.0)

.079

(0.17)

.0067

(2.0) Typ

.079

(2.0) Travel Typ

.079

(1.4)

.055

(0.7)

.028

(1.5)

.059

(5.6)

.220

(1.35)

.053

(13.8)

.543

(0.6) Typ

.024

(2.9)

.114

(0.95) Typ

.0374

(0.2) Typ

.0079

(12.5)

.492

Coplanar Dimension

Coplanar Dimension

(2.0)

.079

(1.2)

.047

(4.0)

.157

(2.0)

.079

(0.17)

.0067
