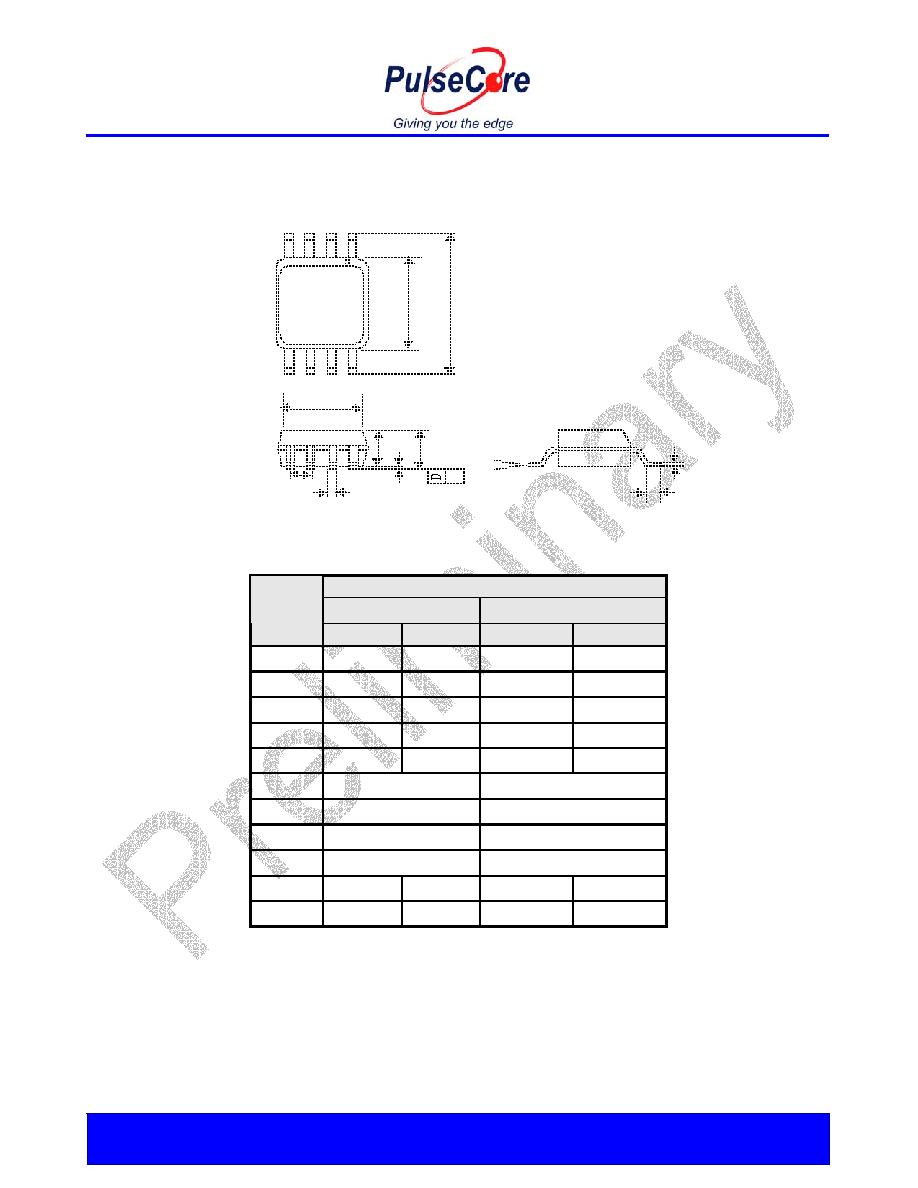

8-Pin SOIC

E

H

D

A1

A2

A

θ

L

C

B

e

Dimensions

Inches

Millimeters

Symbol

Min

Max

Min

Max

A1

0.004

0.010

0.10

0.25

A

0.053

0.069

1.35

1.75

A2

0.049

0.059

1.25

1.50

B

0.012

0.020

0.31

0.51

C

0.007

0.010

0.18

0.25

D

0.193 BSC

4.90 BSC

E

0.154 BSC

3.91 BSC

e

0.050 BSC

1.27 BSC

H

0.236 BSC

6.00 BSC

L

0.016

0.050

0.41

1.27

θ

0°

8°

0°

8°
