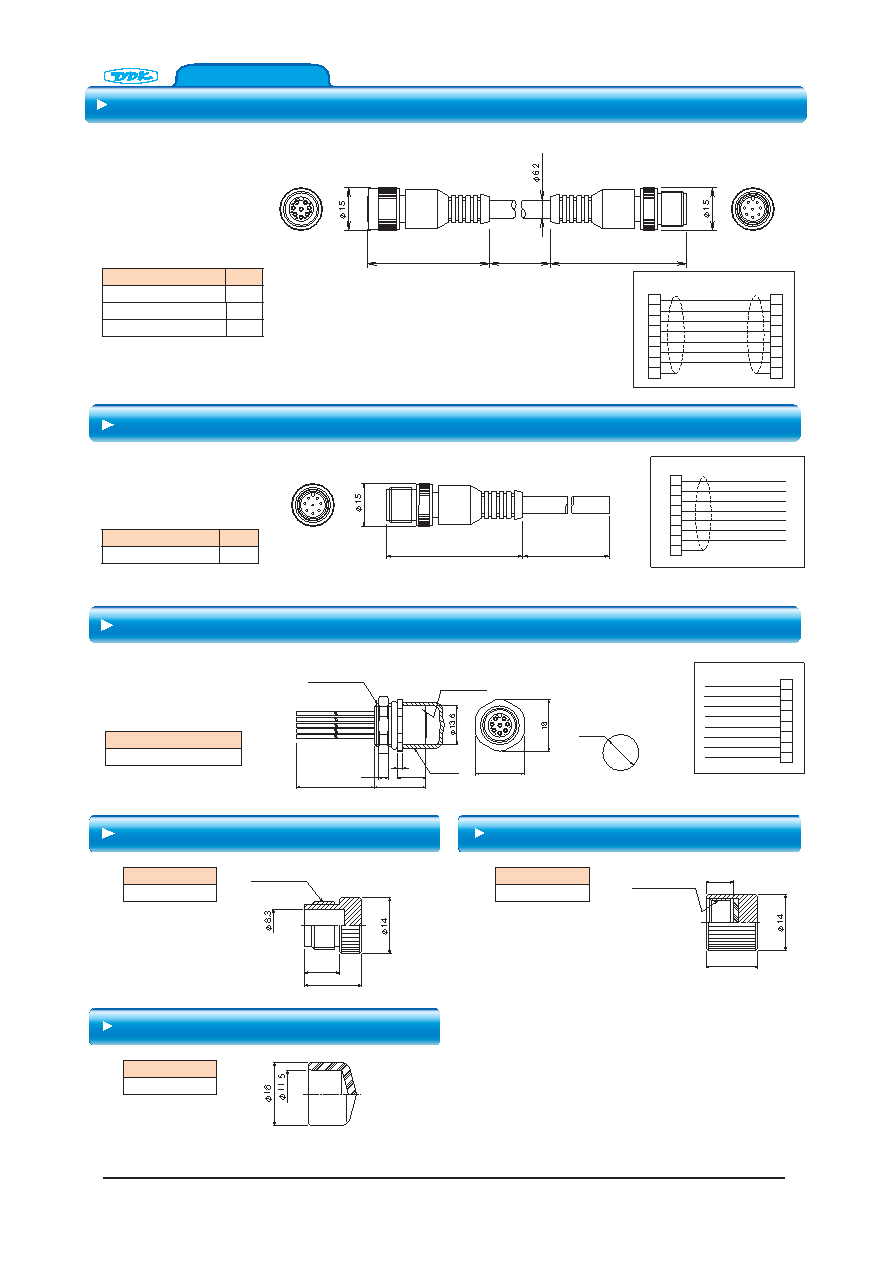

CE04T Series

2

◎ Specifications and/or dimensions in this catalog are subject to change without notice.

  Your checking the latest specifications with our drawings would be highly appreciated.

○ Plug and Jack Double-Ended Cable Assemblies

○ Jack Single-Ended Cable Assemblies

○ Plug Single-Ended Receptacle Assemblies

○ Plug Cap (Metal)

○ Receptacle Cap (PVC）

○ Receptacle Cap (Metal)

P/N

L

CM04TA-8DP8S-010

1m

CM04TA-8DP8S-030

3m

CM04TA-8DP8S-050

5m

P/N

L

CM04T-8DJ8P-0054

540

P/N

CM04T-8DPR8S-H

P/N

CM01-P-CAP-CF

P/N

CM01-CAP

P/N

CM01-R-CAP-CF

Wiring Diagram

Jack conn.

Plug conn.

White

Brown

Green

Yellow

Black

Red

Blue

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

41.3

46

L

46

L

White

Brown

Green

Yellow

Black

Red

Blue

1

2

3

4

5

6

7

8

Wiring Diagram

Panel cut-out

（Thickness 2.5max.）

φ15.2

 0

 -0.2

Wiring Diagram

White

Brown

Green

Yellow

Gray

Pink

Blue

Red

1

2

3

4

5

6

7

8

Contact No.

3.5

18

10

2

with cap

300

17

M15×1.5Thread

Ｍ12×1Thread

8.7

14.3

M12×1Thread

13

6.9

M12ｘ1Thread

･Single-ended cable assembly of a jack connector with pin contacts

・Cable Receptacle with socket contacts

Contact No.

Contact No.

Contact No.
