AD8622
Rev. 0 | Page 13 of 20
0.30
0.25
0.20
0.15
0.10
0.05
0
0.35
–0.05
0
246
8
10
12
14
16
18
VSY (±V)
+85°C
+25°C
–40°C
+125°C

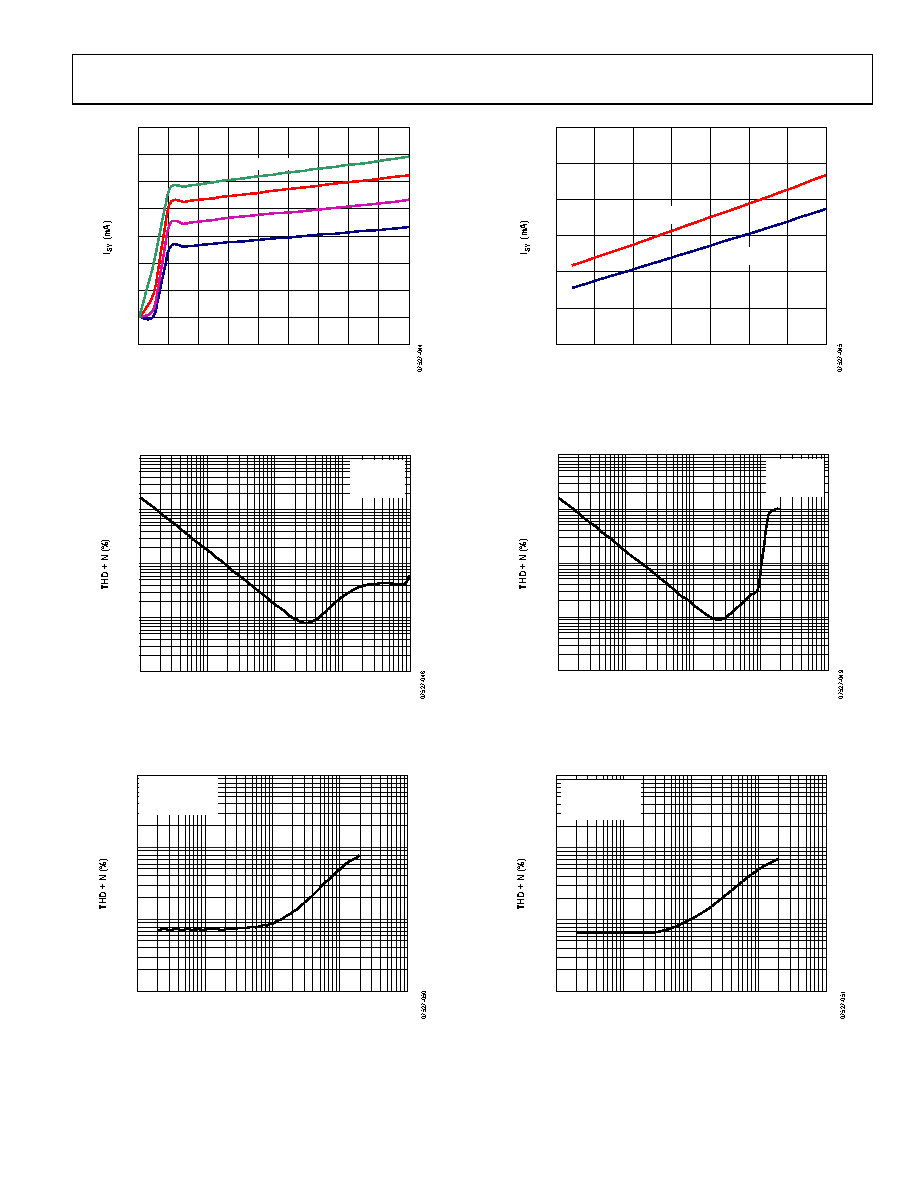

Figure 45. Supply Current vs. Supply Voltage
1
0.1
0.01
0.001
0.0001
0.001
0.01
0.1
1
10
AMPLITUDE (V rms)
VSY = ±15V
f = 1kHz
RL = 10kΩ
Figure 46. THD + Noise vs. Amplitude
0.1
0.01
0.001
0.0001
10
100
1k
10k
100k
FREQUENCY (Hz)
VSY = ±15V
RL = 10kΩ
VIN = 300mV rms
Figure 47. THD + Noise vs. Frequency
0.30
0.25
0.20
0.15
0.10
0.05
0.35
25
–25
–50
50
0
75
100
125
TEMPERATURE (°C)
VSY = ±15V
VSY = ±2.5V
Figure 48. Supply Current vs. Temperature
1
0.1
0.01
0.001
0.0001
0.001
0.01
0.1
1
10
AMPLITUDE (V rms)
VSY = ±2.5V
f = 1kHz
RL = 10kΩ
Figure 49. THD + Noise vs. Amplitude
0.1
0.01
0.001
0.0001
10
100
1k
10k
100k
FREQUENCY (Hz)
VSY = ±2.5V
RL = 10kΩ
VIN = 300mV rms
Figure 50. THD + Noise vs. Frequency
