◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.

 Your catalogue checking the latest speifications with our drawings would be highly appreciated.

RoHS

Compliant

RoHS

Compliant

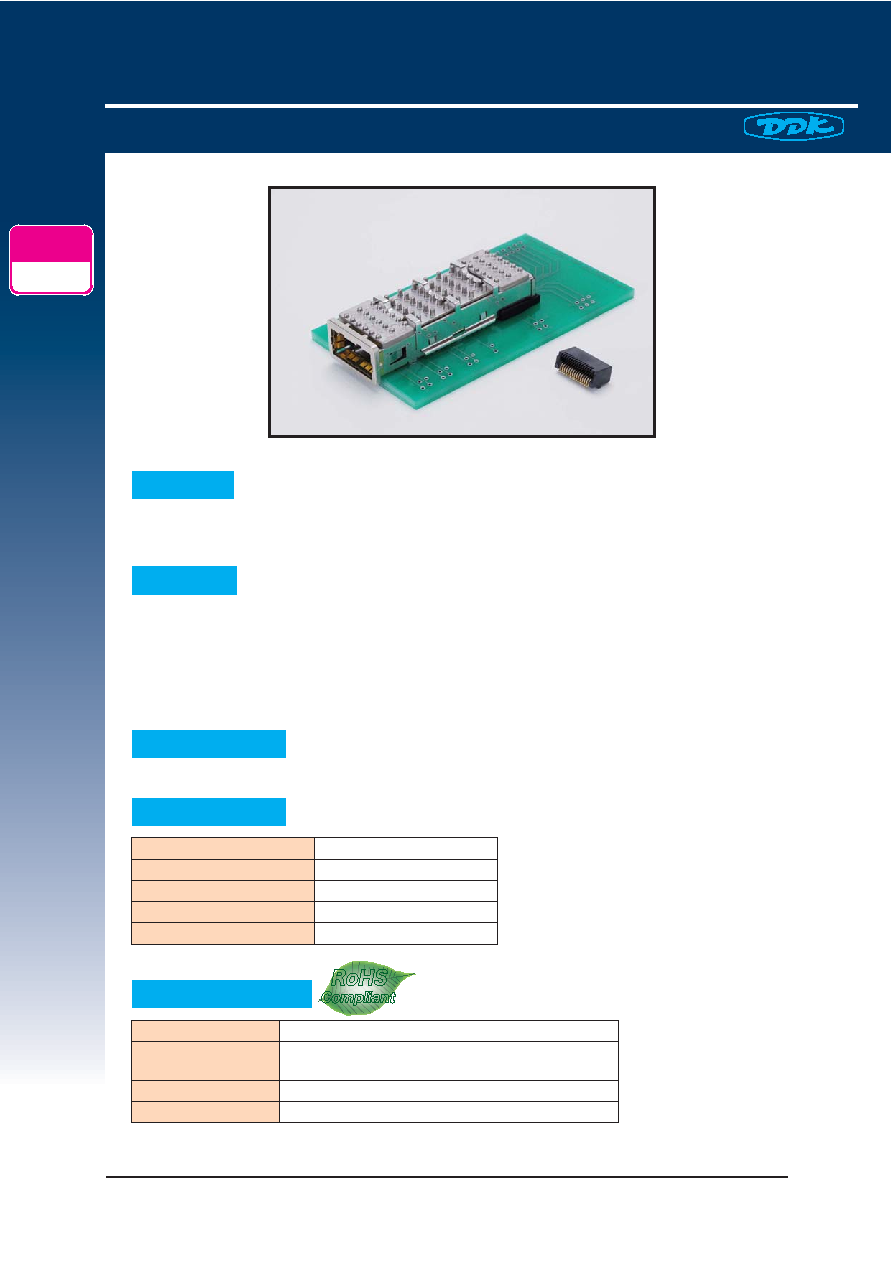

XFP Connector

SPT Series / 10Gbps

XFP

Conforming

Standard

・Right Angle 0.8mm pitch, 30 pins SMT connector

・Excellent EMI shield

・Cage assembly is press-fit mounting and serves as a guide rail for transceivers.

・4.2mm and 6.5mm height heat radiation pins are available.

・RoHS Compliant

10G Fiber Channel, 10G Ethernet, High-end Server

Item

Material/Finish

Contact

Copper Alloy/ Contact Area: Au over Ni Plating

Tail Area: Au(Flash) over Ni Plating

Housing

350V AC(r.m.s.) for 1 minute

Cage, Clip, Heat Sink

30m Ω max.

SPT series is a connector and cage assembly which is compatible to 10Gigabit Small Form-factor

Pluggable(XFP) specification of Multi Source Agreement(MSA) for 10G optical transceiver.

090703

Rated Voltage

120V AC(r.m.s.)

Rated Current

0.5A / Contact

Dielectric Withstanding voltage

350V AC(r.m.s.) for 1 Minute

Insulation Resistance

100M Ω Min. at 250V DC

Contact Resistance

30m Ω Max.

◆ OUTLINE

◆ FEATURE

◆ APPLICATIONS

◆ SPECIFICATION

◆ MATERIAL/FINISH
