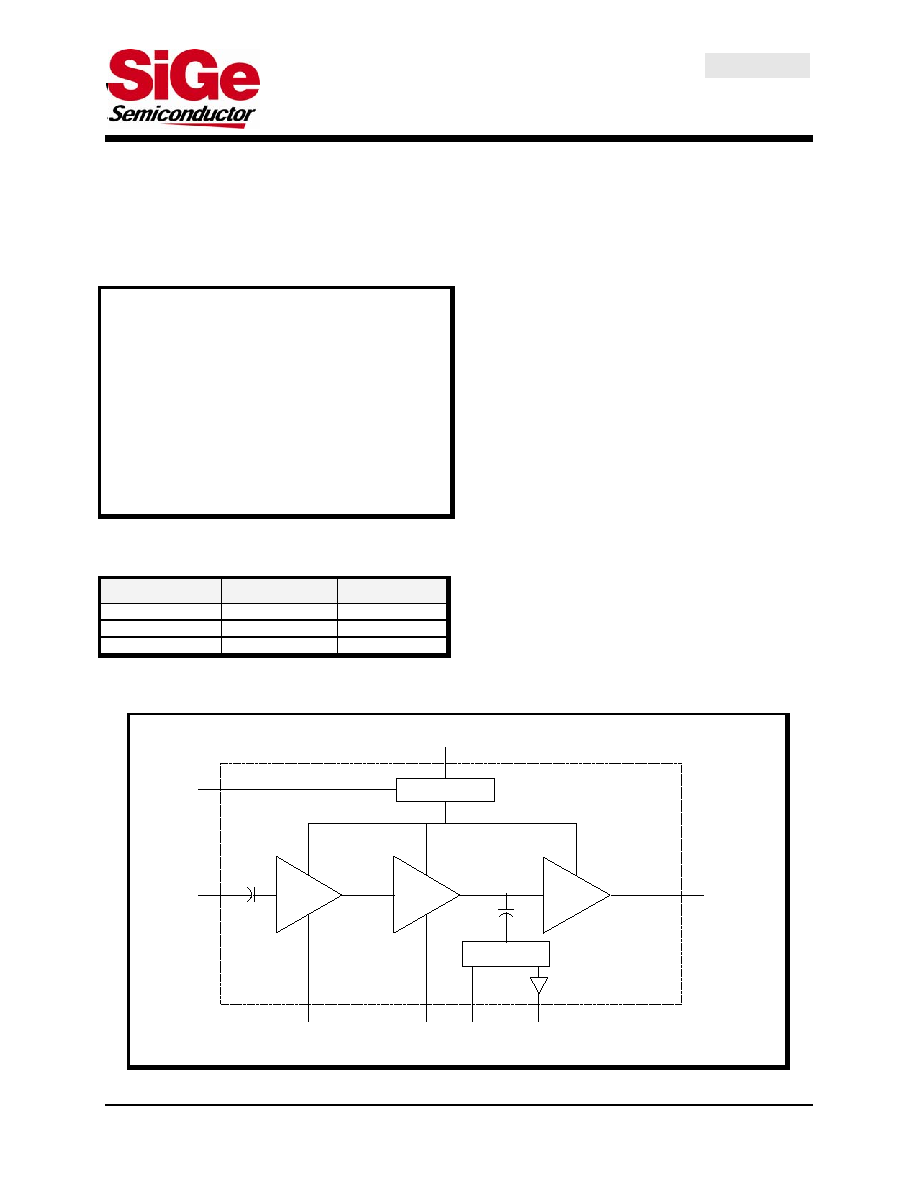

1 / 2 page

SE2523BU

2.4 GHz Power Amplifier with Power Detector

Preliminary

Applications

DSSS 2.4 GHz WLAN (IEEE802.11b)

OFDM 2.4 GHz WLAN (IEEE802.11g)

Portable and Battery WLAN Applications

Access Points, PCMCIA, PC cards

Features

Single 3.3 V Supply Operation

18.5 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps

23 dBm, ACPR < -32 dBc, 802.11b

32 dB Gain

Selectable Power Detector Slope for use with

multiple chipsets (Negative and Positive)

Integrated power amplifier enable pin (VEN)

Lead Free and RoHS Compliant

Ultra thin package: 0.5 mm

Small package, 16 pin 3 mm x 3 mm x 0.5 mm

QFN

Ordering Information

Part Number

Package

Remark

SE2523BU

16 Pin QFN

Samples

SE2523BU-R

16 Pin QFN

Tape and Reel

SE2523BU-EK1

Evaluation Kit

Standard

Product Description

The SE2523BU is a 2.4 GHz power amplifier

designed for use in the 2.4 GHz ISM band for wireless

LAN

applications.

The

device

incorporates

two

selectable power detectors for closed loop monitoring

of the output power.

The SE2523BU includes a digital enable control for

device on/off control.

The SE2523BU temperature compensated power

detector has two selectable power detectors slopes,

positive and negative.

This allows easy use with

multiple chipsets. The detector is also highly immune

to mismatch at its output with less than 1.5 dB of

variation with a 2:1 mismatch.

Functional Block Diagram

VCC0

V DETOUT

OUT/VCC3

IN

V CC1

V CC2

Stage 2

Stage 1

Stage 3

Bias Generator

Detector

(with Switch)

VEN

SLOPE SEL

Figure 1: Functional Block Diagram

192-DST-01

Rev 1.3

May-26-2009

1 of 2

QA041206
