TYPICAL PERFORMANCE CHARACTERISTICS

5 V PERFORMANCE

VS = 5 V, IS = 350 mA, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, LO power = 0 dBm, RF power = −10 dBm, R1 = R4 = 1.3 kΩ, R2 = R5 = 1 kΩ,

ZO = 50 Ω, VGS0 = VGS1 = VGS2 = 0 V, unless otherwise noted.

RF FREQUENCY (MHz)

1700 1750

1800 1850 1900 1950 2000 2050 2100 2150 2200

300

320

340

360

380

400

TA = +85°C

TA = +25°C

TA = –40°C

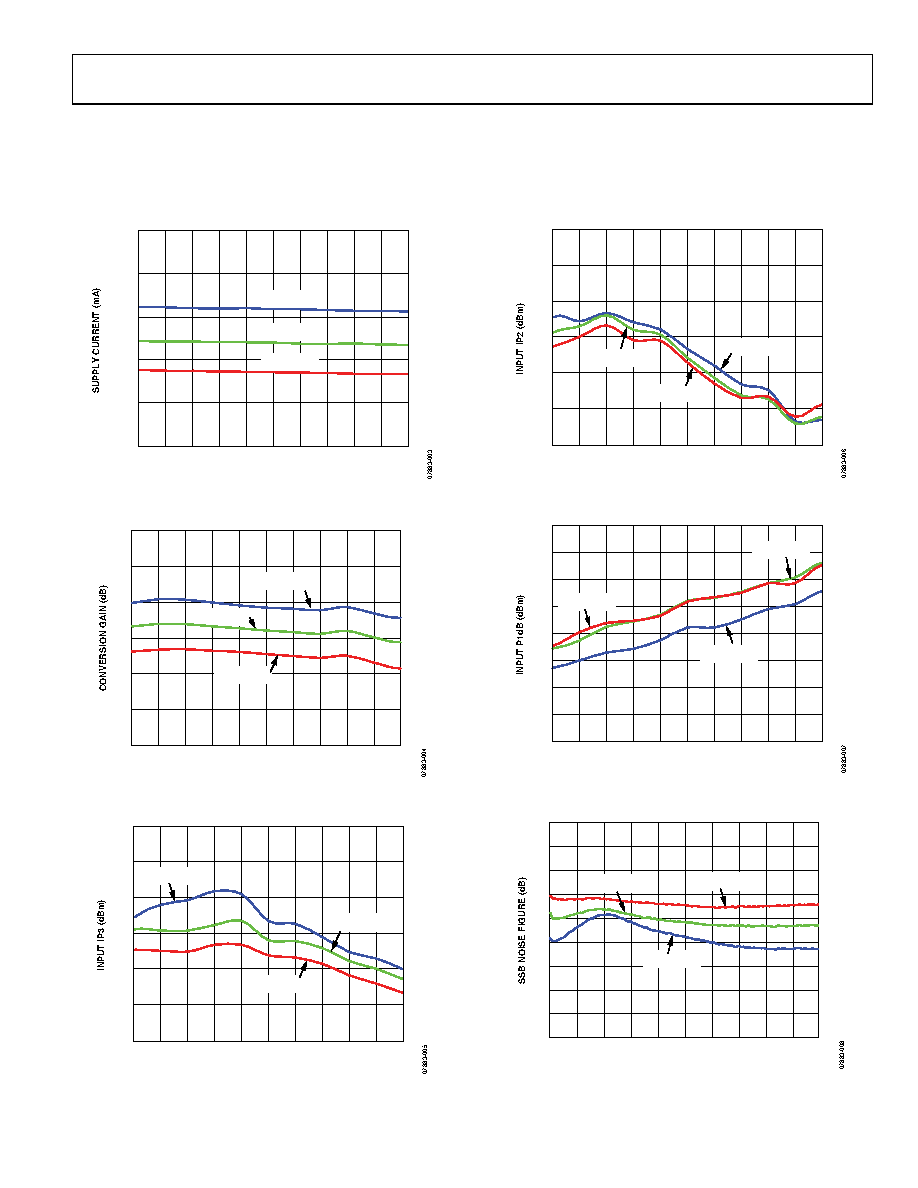

Figure 3. Supply Current vs. RF Frequency

RF FREQUENCY (MHz)

1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200

TA = –40°C

TA = +85°C

TA = +25°C

Figure 4. Power Conversion Gain vs. RF Frequency

RF FREQUENCY (MHz)

1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200

TA = +85°C

TA = +25°C

TA = –40°C

Figure 5 .Input IP3 vs. RF Frequency

RF FREQUENCY (MHz)

1700 1750

1800 1850 1900 1950 2000 2050 2100 2150 2200

TA = +85°C

TA = +25°C

TA = –40°C

Figure 6. Input IP2 vs. RF Frequency

RF FREQUENCY (MHz)

1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200

9.0

9.5

10.0

10.5

11.0

11.5

12.0

12.5

13.0

TA = +85°C

TA = +25°C

TA = –40°C

Figure 7. Input P1dB vs. RF Frequency

RF FREQUENCY (MHz)

1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200

TA = +85°C

TA = +25°C

TA = –40°C

Figure 8. SSB Noise Figure vs. RF Frequency
