ADRF6655
Rev. 0 | Page 37 of 44
AGILENT 8665B LOW
NOISE SIGNAL
GENERATOR
AGILENT 34401A DMM
(IN DC I MODE FOR SUPPLY
CURRENT MEASUREMENT)
AGILENT E3631A POWER
SUPPLY
AGILENT N8974A NOISE
FIGURE ANALYZER
AGILENT 346B NOISE
SOURCE
IF OUT
REF IN
RF IN
AGILENT 34980A
MULTIFUNCTION SWITCH
(WITH 34950 AND 34921 MODULES)
IEEE
IEEE
IEEE
ADRF6655
EVALUATION BOARD
6dB
6dB

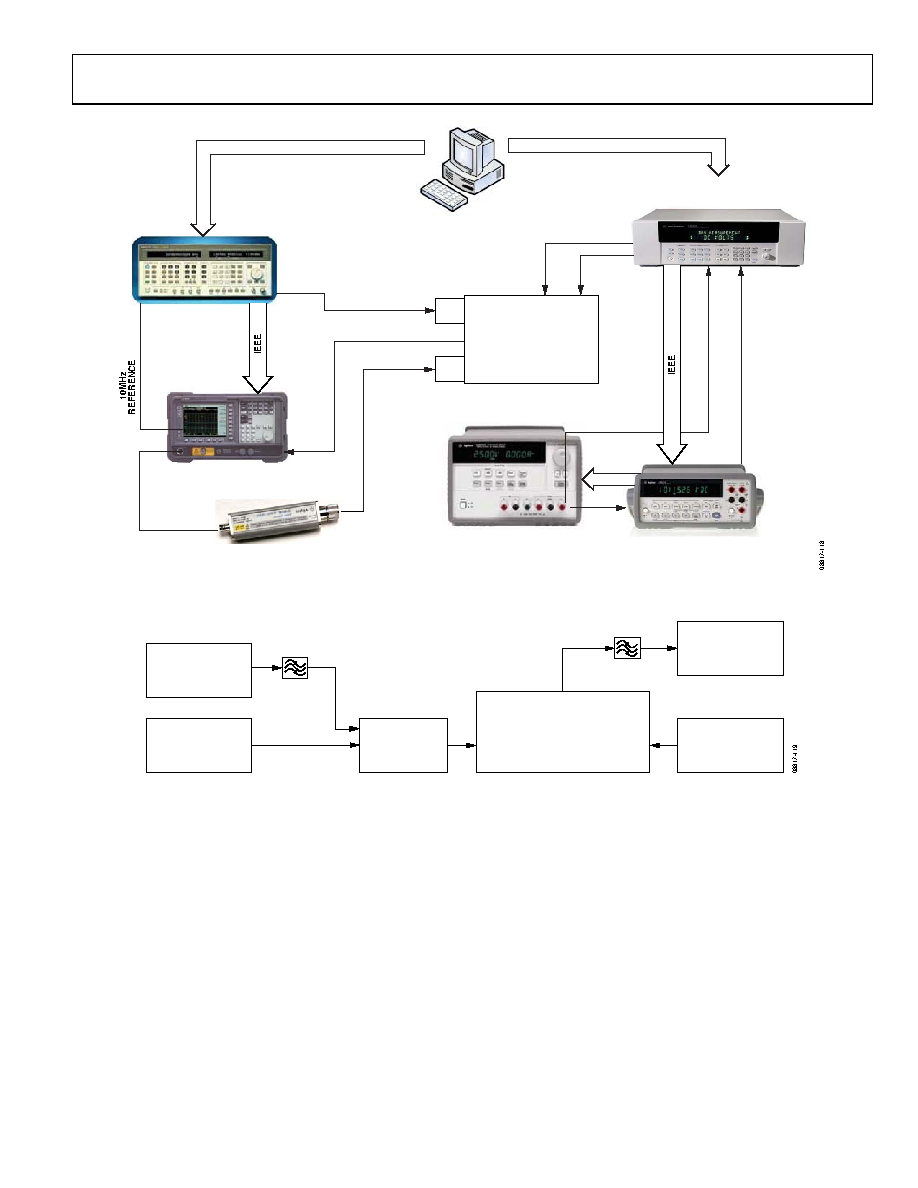

Figure 80. Noise Figure Setup
ADRF6655
EVALUATION BOARD
AGILENT 8665B LOW
NOISE SIGNAL
GENERATOR
AGILENT 346B NOISE
SOURCE
COMBINER
RF IN
IF OUT
REF IN
RHODE & SCHWARTZ
SMA100
SIGNAL GENERATOR
AGILENT N8974A
NOISE FIGURE
ANALYZER
Figure 81. Noise Figure with Presence of Blocker Signal
