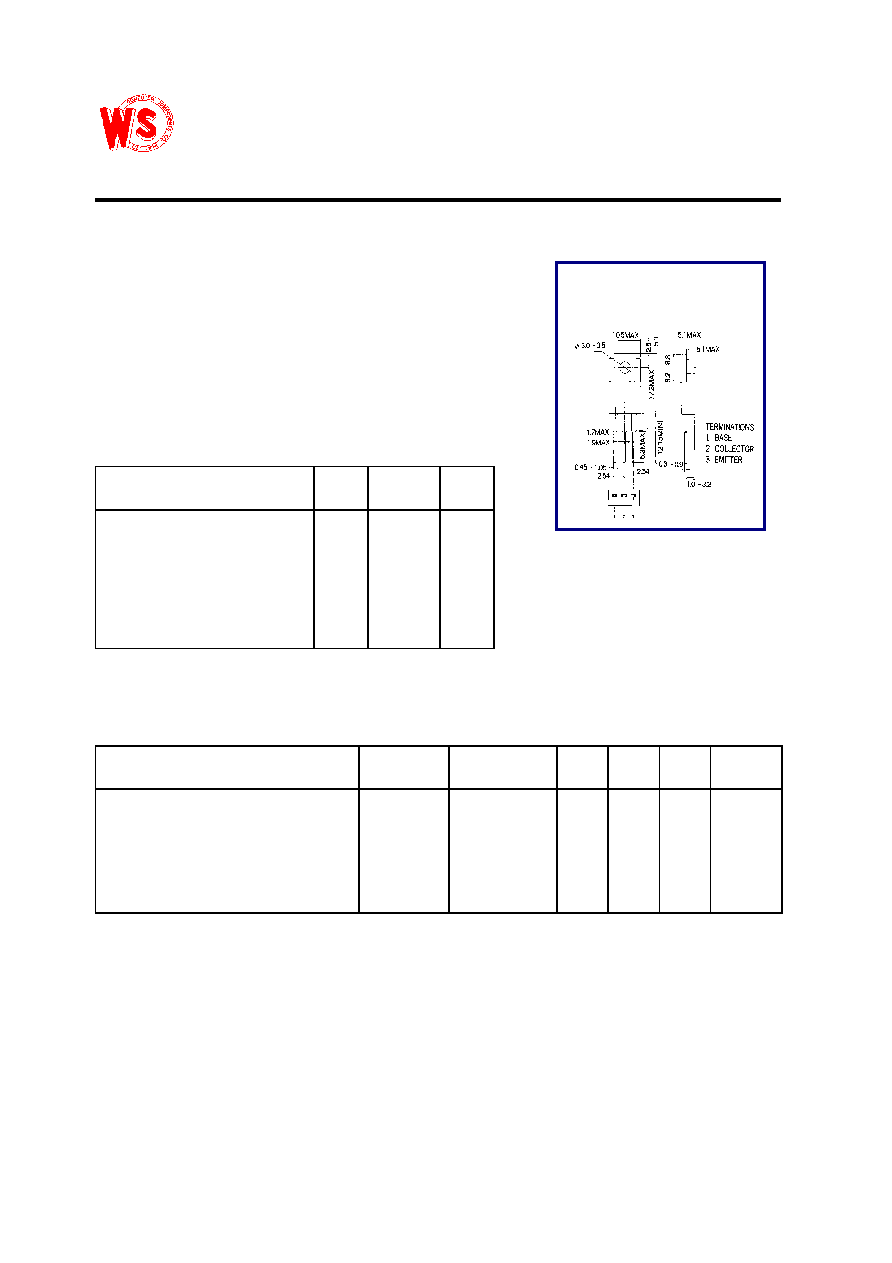

background image
2SC5416LS
NPN
SILICON TRANSISTOR
HIGH VOLTAGE POWER
SWITCHING APPLICATIONS
SC-67
ABSOLUTE MAXIMUM RATINGS(TA=25℃
℃
℃
℃)
Characteristic
Symbol
Rating
Unit
Collector-Emitter Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
Collector Current (Pulse)
Base Current (DC)
Base Current (Pulse)
Collector Dissipation (TC=25℃)
))
)
Junction Temperature
Storage Temperature
VCBO
VCEO
VEBO
IC
IC
IB
IB
PC
Tj
Tstg
1000
450
9
4
8
2
4
100
150
-65~150
V
V
V
A
A
A
A
W
℃
℃
ELECTRICAL CHARACTERISTICS (TA=25℃
℃
℃
℃)
Characteristic
Symbol
Test Condition
Min
Typ
Max
Unit
Collector Emitter Sustaining Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Collector Emitter Saturation Voltage
Fall Time
VCEO(SUS)
ICES
IEBO
hFE
VCE(sat)
tf
IC=100mA,
IB=0
VCE=850V, VEB =0
VCE=1000V,VEB =0
VEB=9V,
IC=0
IC=0.1A, VCE =5V
IC=2.5A, IB=0.5A
450
30
1
1
10
50
1.5
0.15
V
mA
mA
µA
V
µS
Wing Shing Computer Components Co., (H.K.)Ltd.
Tel:(852)2341 9276
Fax:(852)2797 8153
Homepage: http://www.wingshing.com
E-mail:
wsccltd@hkstar.com
