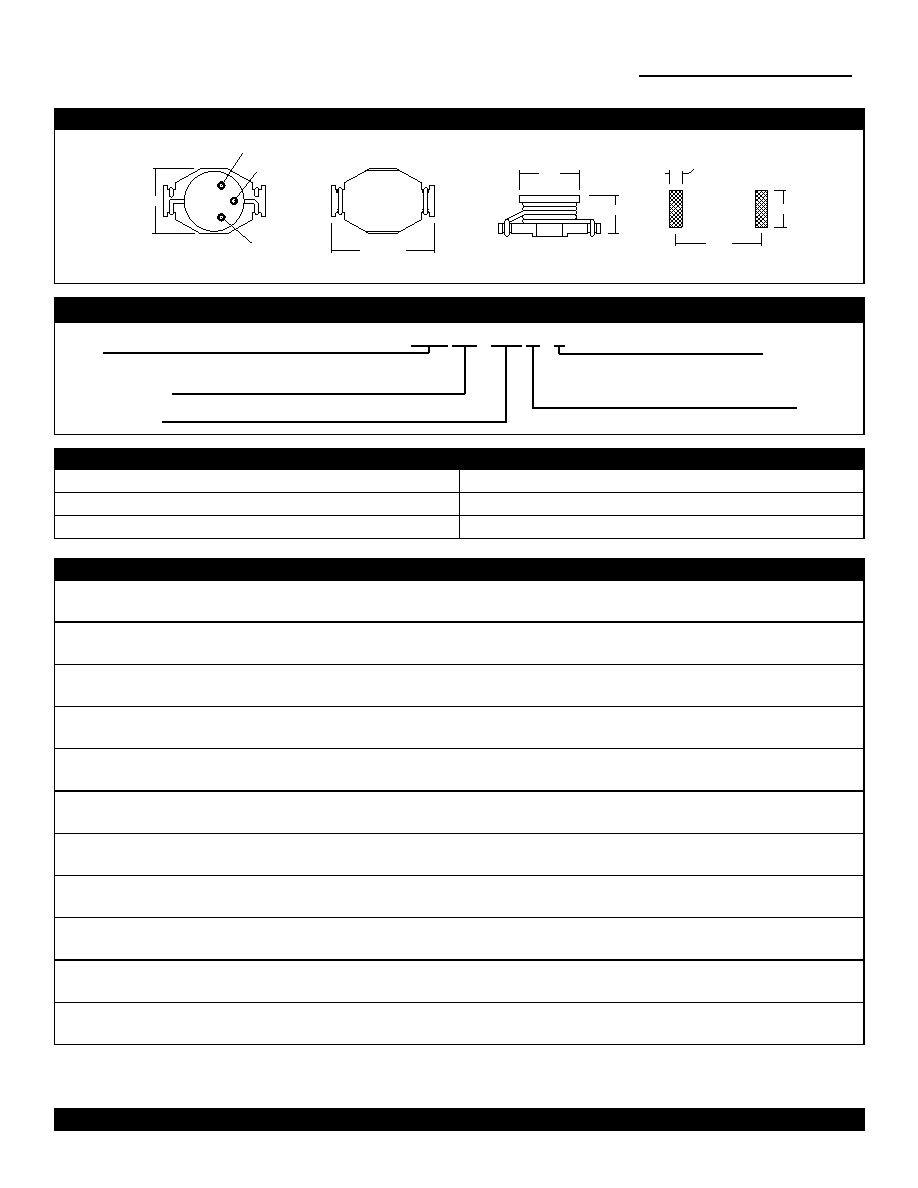

1 / 1 page

Dimensions

Part Numbering Guide

Series

Packaging Style

B=Bulk

T=Tape & Reel

HC = High Current

(700 pcs per reel)

Tolerance

Inductance Code

M=20%

PSSL - 0804 HC - R33 M - T

Power Inductor - High Current

(PSSL-0804HC Series)

Features

Inductance Range

0.33 µH to 4.7 µH

Available Tolerance

M=20%

Operating Temperature

-40°C to 85°C

Dimensions in mm

Electrical Specifications

Inductance

Code

Inductance

(µH ± 20%)

Test

Frequency

DCR Max

(Ohms)

Isat¹

(A)

Irms²

(A)

R33

0.33

100 kHz, 0.1 Vrms

0.002

20.0

16.0

R68

0.68

100 kHz, 0.1 Vrms

0.005

13.0

12.0

1R0

1.0

100 kHz, 0.1 Vrms

0.006

11.0

10.0

1R5

1.5

100 kHz, 0.1 Vrms

0.008

9.0

2R2

2.2

100 kHz, 0.1 Vrms

0.011

7.8

7.4

2R7

2.7

100 kHz, 0.1 Vrms

0.012

7.0

6.6

3R3

3.3

100 kHz, 0.1 Vrms

0.014

6.4

5.9

4R7

4.7

100 kHz, 0.1 Vrms

0.018

5.4

4.8

6R8

6.8

100 kHz, 0.1 Vrms

0.020

3.6

5.0

100

10.0

100 kHz, 0.1 Vrms

0.026

3.3

4.3

Notes:

1)

Inductance drop = 10% typ. At Isat

2)

T = 40°C typ. At Irms

Specifications subject to change without notice.

Rev. 02/01

(Not to scale)

TEL 949-366-8700

FAX 949-366-8707

WEB www.caliberelectronics.com

9.91 max

6.35 max

13.21 max

Bottom

8.38

Suggested

Pattern

1.52

10.16

4.06

1st Significant Digit

2nd Significant Digit

Multiplier

CAL I B E R

ELE C T R O N I C S

I N C .

specifications subject to change * revision 3-2003
