ADP2119/ADP2120
Rev. 0 | Page 10 of 24
CH1 500mV CH2 5.00V
CH3 5.00V
CH4 2.00A
Ω
M400µs
A CH3
3.60V
T
30.4%
3
1
2
4
T
EN
VOUT
PGOOD
IL

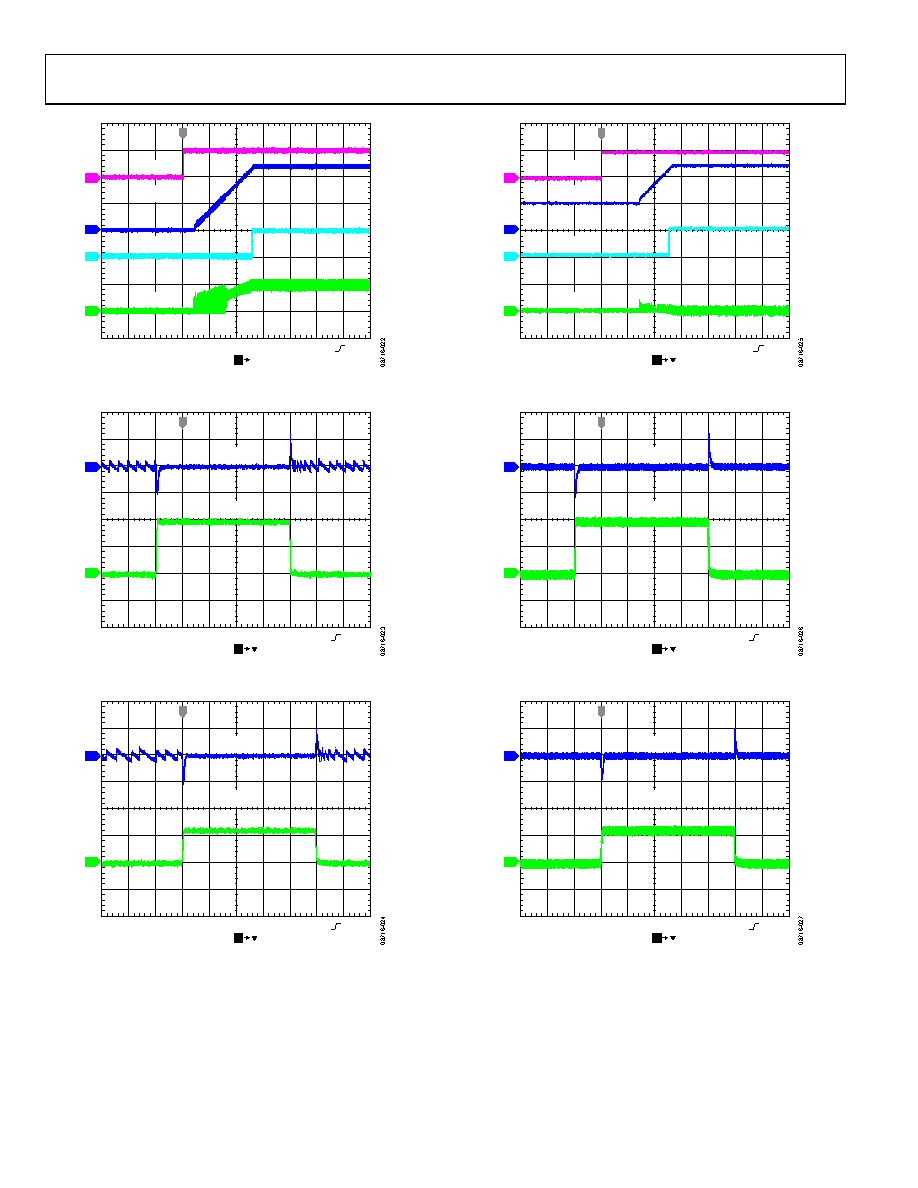

Figure 22. Soft Start with Full Load (ADP2119, VIN = 5 V)
CH1 50.0mV
CH4 1.00A
Ω
M200µs
A CH4
880mA
T
596.0µs
1
4
T
VOUT (AC)
IO
Figure 23. Load Transient (ADP2119, PFM, VIN = 5 V)
CH1 50.0mV
CH4 1.00A
Ω
M200µs
A CH4
960mA
T
396.0µs
1
4
T
VOUT (AC)
IO
Figure 24. Load Transient (ADP2120, PFM, VIN = 5 V)
CH1 500mV CH2 5.00V
CH3 5.00V
CH4 2.00A
Ω
M400µs
A CH3
3.50V
T
784.0µs
3
1
2
4
T
EN
VOUT
PGOOD
IL
Figure 25. Soft Start with Precharged Output (ADP2119, VIN = 5 V)
CH1 50.0mV
CH4 1.00A
Ω
M200µs
A CH4
880mA
T
596.0µs
1
4
T
VOUT (AC)
IO
Figure 26. Load Transient (ADP2119, FPWM, VIN = 5 V)
CH1 50.0mV
CH4 1.00A
Ω
M200µs
A CH4
960mA
T
396.0µs
1
4
T
VOUT (AC)
IO
Figure 27. Load Transient (ADP2120, FPWM, VIN = 5 V)
