AS10004PS-WR-R datasheet(1/1 Pages) PUI

Il numero della parte	AS10004PS-WR-R

Spiegazioni elettronici	Speaker

PDF	1 Pages

Scroll/Zoom	100%

Produttore elettronici	PUI [Projects Unlimited, Inc.]

Homepage	http://www.pui.com

Logo

1 / 1 page

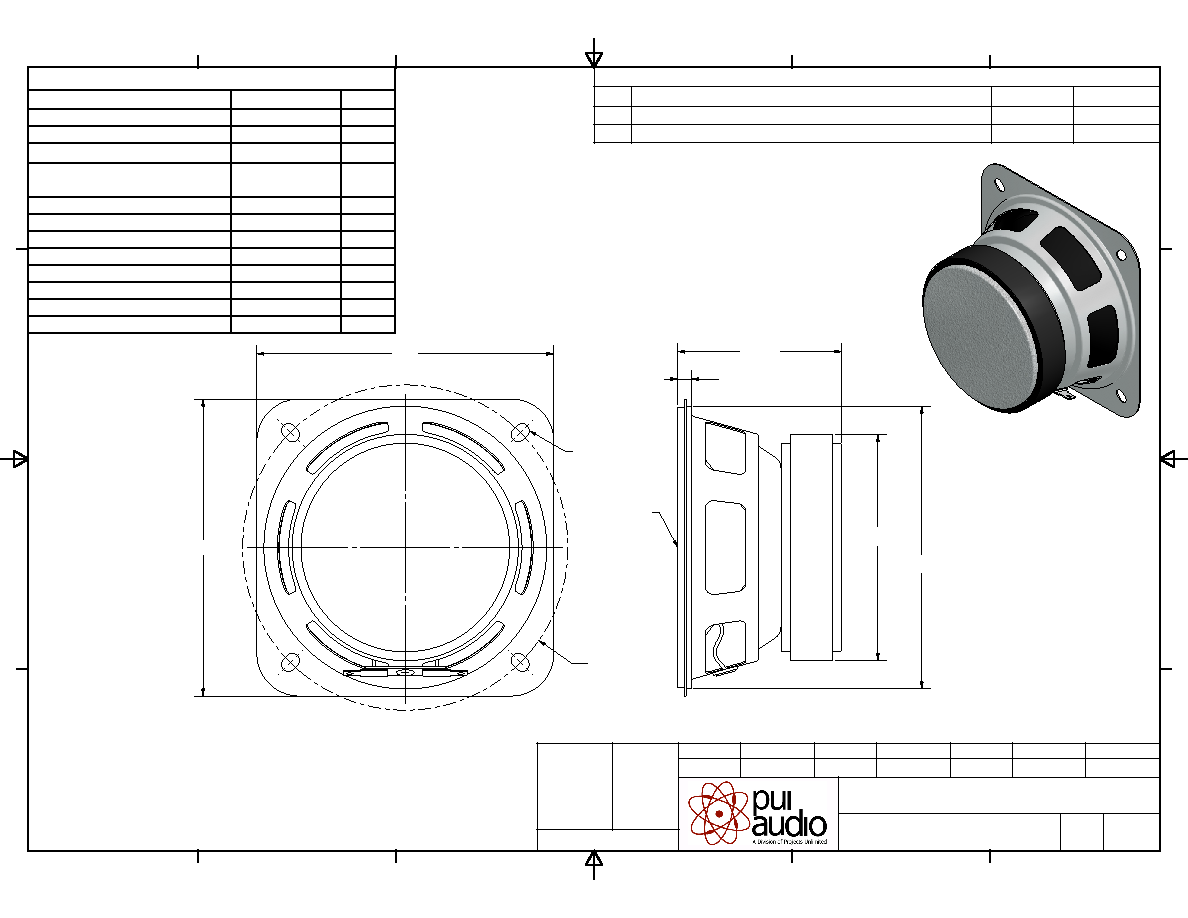

Speaker

AS10004PS-WR-R

J.D.

B.R.

R.W.

6/26/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/22/2006

Date

9/22/2006

Date

9/22/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS10004PS-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

9/25/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

6/26/2008

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

20

W

MAX INPUT POWER

30

W

IMPEDANCE

4 ± 15%

OHM

OUTPUT SPL @ 1W/1M

(AT 1.0, 1.2, 1.5, 2.0 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

7%

-

RESONANT FREQUENCY

90 ± 20%

Hz

FREQUENCY RANGE

90 ~ 10,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-10 ~ +55

°C

WEIGHT

567

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

Δ4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

5 X 7 (4)

n115

105

5

58

`1

Δ4

80

n`1.5

n100
