Data rate and data coding

M24LR64-R

44/128

Doc ID 15170 Rev 10

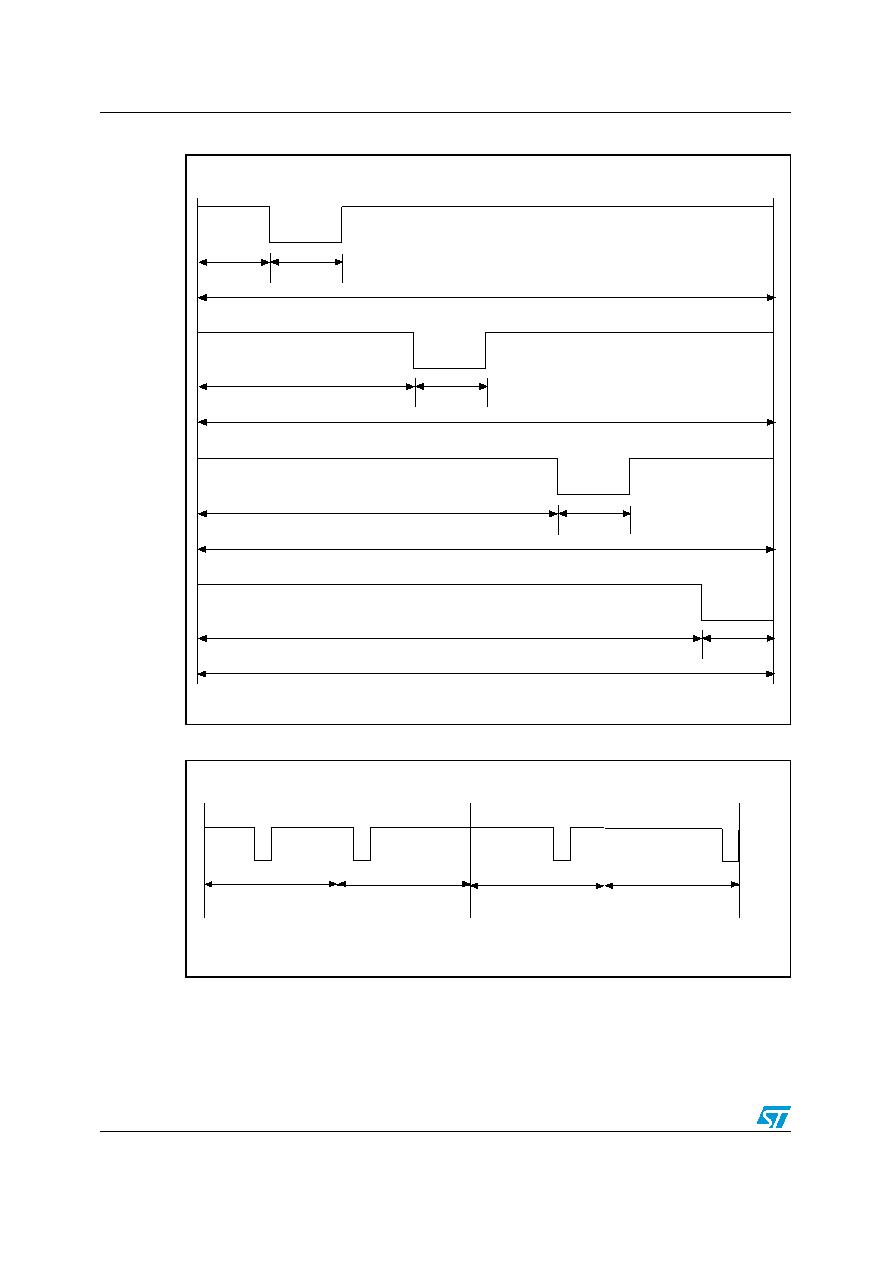

Figure 18.

1 out of 4 coding mode

Figure 19.

1 out of 4 coding example

AI06658

9.44 µs

75.52 µs

28.32 µs

9.44 µs

75.52 µs

47.20µs

9.44 µs

75.52 µs

66.08 µs

9.44 µs

75.52 µs

Pulse position for "00"

Pulse position for "11"

Pulse position for "10" (0=LSB)

Pulse position for "01" (1=LSB)

AI06659

75.52 µs
