NOTES:

Dimensions

1. Dimensions are in inches.

Symbol

Inches

Millimeters

2. Millimeters are given for general information only.

Min

Max

Min

Max

3. In accordance with ASME Y14.5M, diameters are equivalent to Φx

BL

0.215

0.225

5.46

5.72

symbology.

BW

0.145

0.155

3.68

3.94

CH

0.049

0.075

1.24

1.91

LH

-

0.020

-

0.508

LL1

0.085

0.125

2.16

3.17

LL2

0.045

0.075

1.14

1.90

LS1

0.070

0.095

1.78

2.41

LS2

0.035

0.048

0.889

1.21

LW1

0.135

0.145

3.43

3.68

LW2

0.047

0.057

1.19

1.45

Q1

0.030

0.070

0.762

1.78

Q2

0.020

0.035

0.508

0.88

TERM 1

Cathode

TERM 2

Anode 1

TERM 3

Anode 2

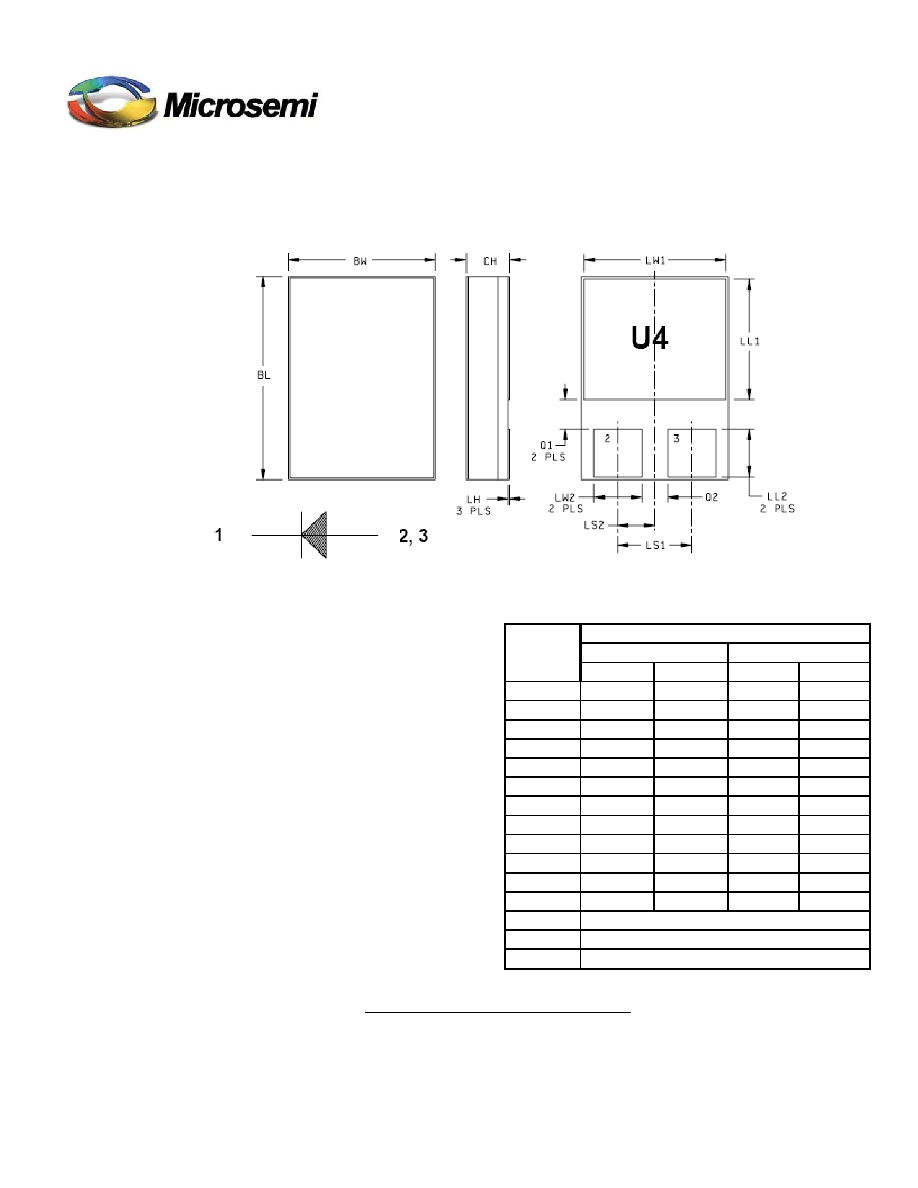

FIGURE 2 - Physical dimensions and configuration (U4).
