Series YB2

22mm Panel Seal Pushbuttons

www.nkk.com

D115

Distinctive Characteristics

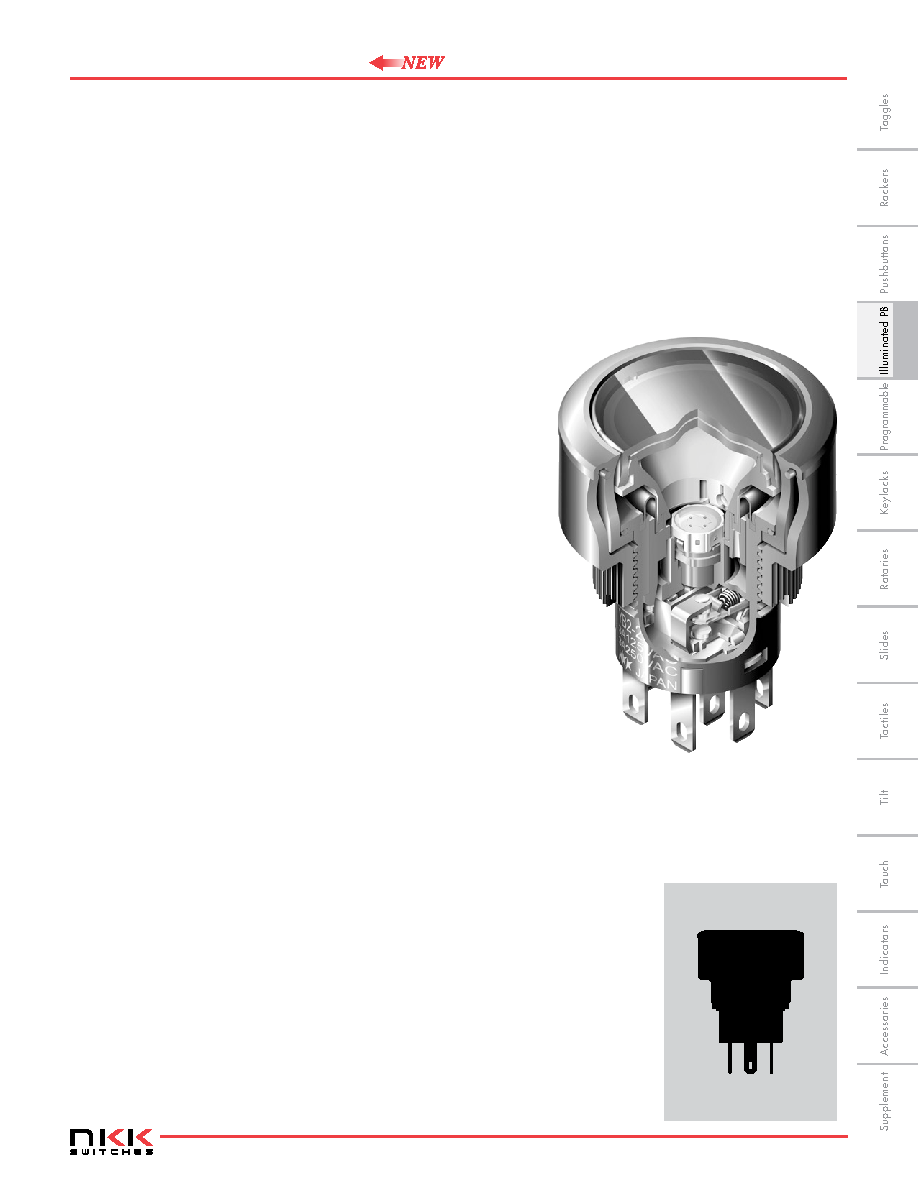

Actual Size

22mm pushbutton with the shortest above-panel dimension (1.8mm) in the industry

for splashproof design.

Meets IP65 of IEC60529 standards (similar to NEMA 4 and 13), providing

dust tight and splashproof panel seal protection.

Tamper resistant 19mm diameter actuator.

Short body of .965” (24.5mm) conserves behind-panel

space.

Distinctive long stroke and light touch actuation for clear

indication of circuit status.

Choice of cap colors includes clear, red, green, amber,

or metallic silver for enhanced panel appearance.

Metallic silver cap option has bright ring illumination.

Brilliant illumination with multiple LED colors.

Bezel color options in silver or black.

Available in momentary and alternate action with latchdown.

Crisp actuation and clear circuit status provided by snap-action

contact mechanism. Arc barrier protects against crossover.

Combination solder lug and .110” quick connect terminals. Terminals

are epoxy sealed to lock out flux, dust, solvents, and other contaminants,

as well as to secure terminals and improve contact stability.

Custom legends on actuator available.
