L–17

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

www.ck-components.com

L

All models

with all options when ordered with ‘Q’ contact material.

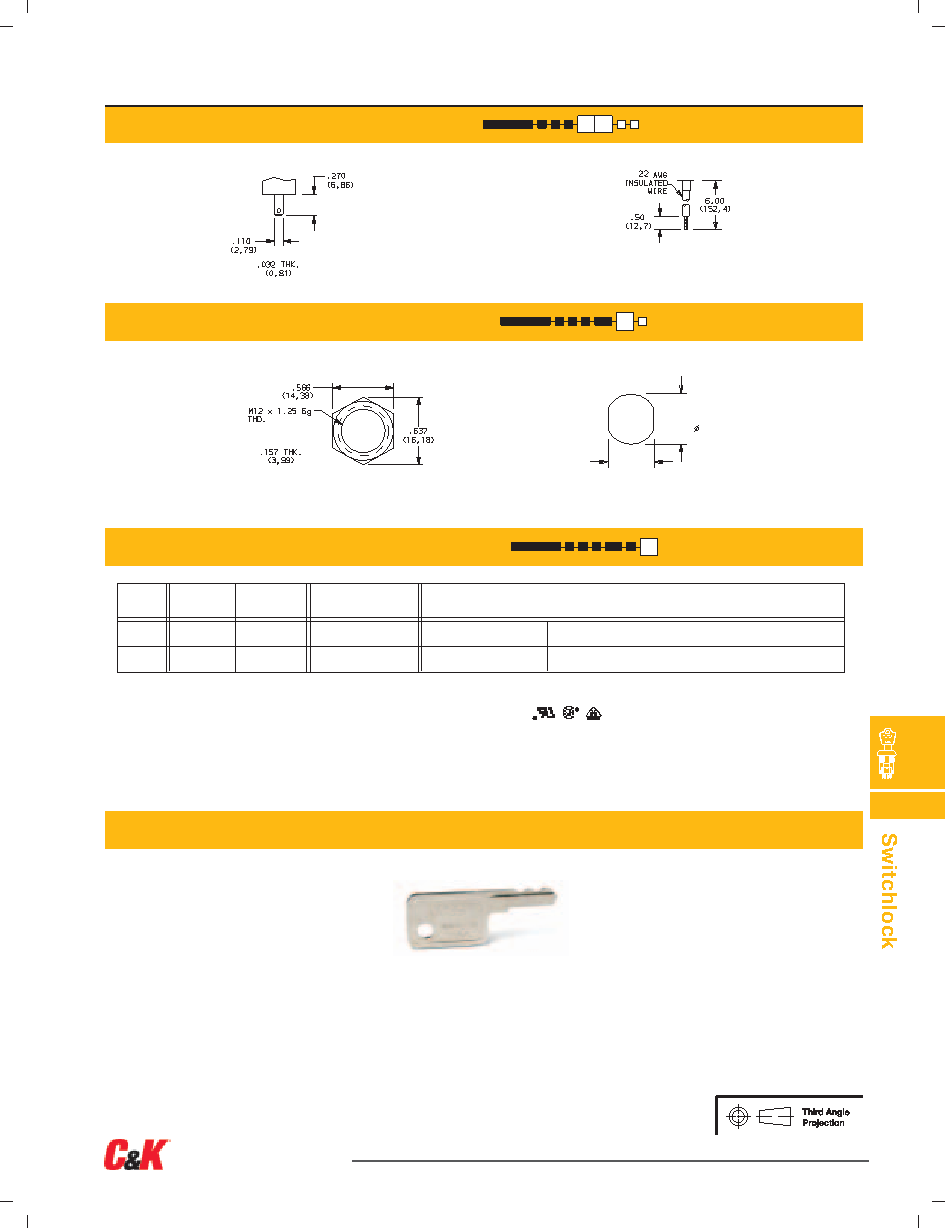

YM Series

4 Tumbler Miniature Switchlocks

TERMINATIONS

MOUNTING STYLE

CONTACT MATERIAL

AVAILABLE HARDWARE

PANEL MOUNTING

.420

(10,67)

.472 DIA.

(11,99 )

Panel thickness:

.300 (7,62) max.

N

WITH NUT

WC

WIRE LEAD

05

QUICK CONNECT

Nut part number: 179090123

Black wire standard, other colors and

lengths available, consult Customer

Service Center. UL style 1015.

Key Code: 0029

PART NO. (ONE KEY)

960B10029

Material: Brass

Finish: Nickel plate

termination options).

* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.

CONTACT AND

OPTION

CODE

TERMINAL MATERIAL

RATING

Q

4 AMPS @ 125 V AC or 28 V DC; 2 AMPS @ 250 AC V AC (UL/CSA).

LOW LEVEL/DRY CIRCUIT

B

SILVER

2

POWER

0.4 VA MAX. @ 20 V AC or DC MAX.

RoHS

COMPLIANT*

RoHS

COMPATIBLE*

YES

YES

YES

YES

GOLD

1
