 21 / 36 page
background image

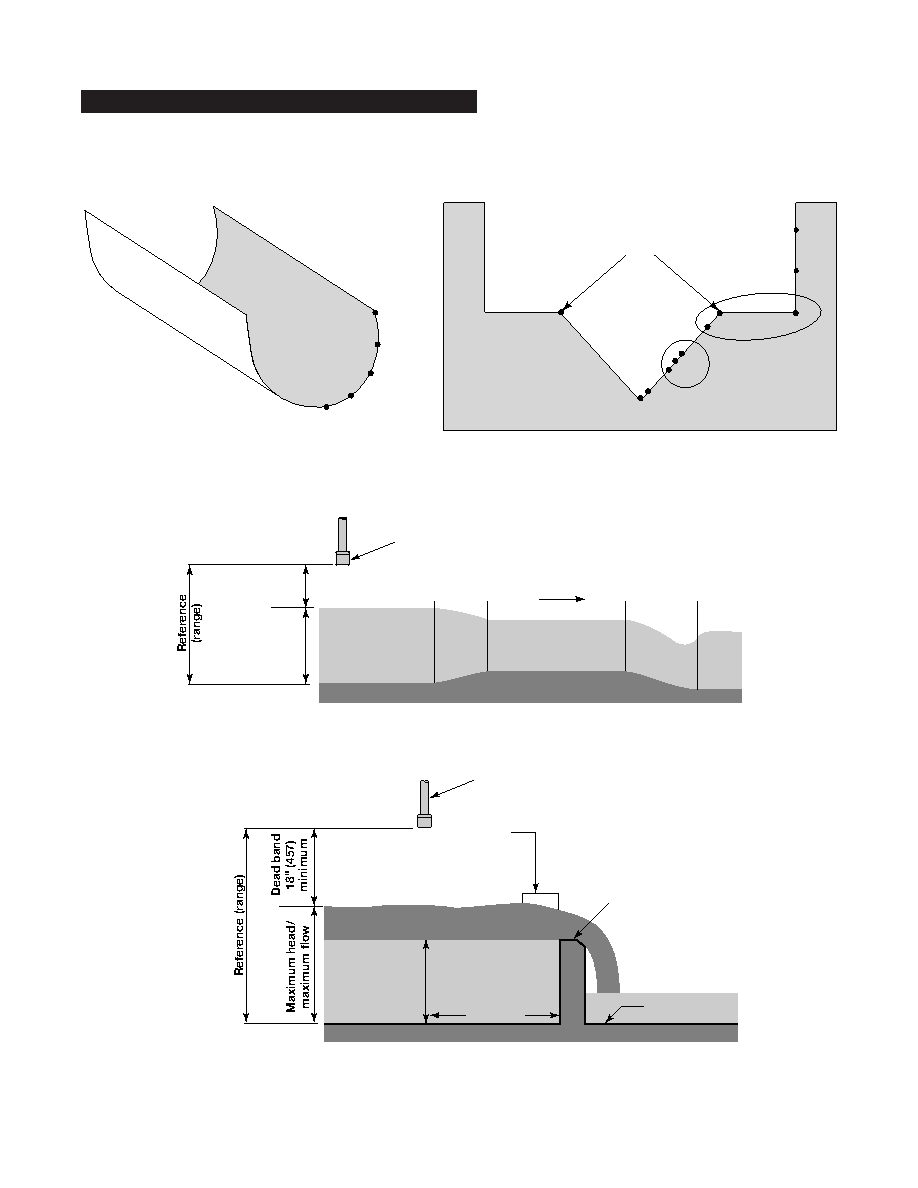

Maximum head/
maximum flow
Ultrasonic
Transducer
Dead band
18" (457)
minimum
Flow
Water surface
Throat
3–4 H
minimum
Maximum
crest height,
2–3 H
Ultrasonic
Transducer
Maximum head, H
Crest
Channel floor
Drawdown
Figure 14
Flume (side view)
Figure 15
Weir (side view)
SYSTEM CONFIGURATION MENU—FLOW AND LEVEL cont.
NOTE: Install the transducer at the point recommended by
the flume/weir manufacturer to insure proper flow measure-
ment; or consult factory for transducer location.
SPLINE OR LINEAR
SPLINE
Figure 13
Custom Table Flow and Level
P1
P2
P3
P4
P5
Concentrate points along curve
P2
P3
P7
P10
Transition
point
P1
Concentrate points as follows:
A. At least two points at beginning (P1 and P2);
B. At least two points at end (P9 and P10);
C. Three points at approximate average flow rate (for
example, P3, P4, P5); and at transition point (P7)
and points on either side (P6, P8).
P5
P4
P6
P8
P9
Average flow rate
21
SOFTWARE CONFIGURATION cont.
