B40-HC40-RNM Scheda tecnica(PDF) 5 Page - Magnetrol International, Inc.

Il numero della parte B40-HC40-RNM
Spiegazioni elettronici  B40-P & B40-H Liquid Level Switch ASME B31.1 Compliant
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  MAGNETROL [Magnetrol International, Inc.]
Homepage  http://www.magnetrol.com
Logo MAGNETROL - Magnetrol International, Inc.

B40-HC40-RNM Scheda tecnica(HTML) 5 Page - Magnetrol International, Inc.

  B40-HC40-RNM Datasheet HTML 1Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 2Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 3Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 4Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 5Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 6Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 7Page - Magnetrol International, Inc. B40-HC40-RNM Datasheet HTML 8Page - Magnetrol International, Inc.
Zoom Inzoom in Zoom Outzoom out
 5 / 8 page
background image
5

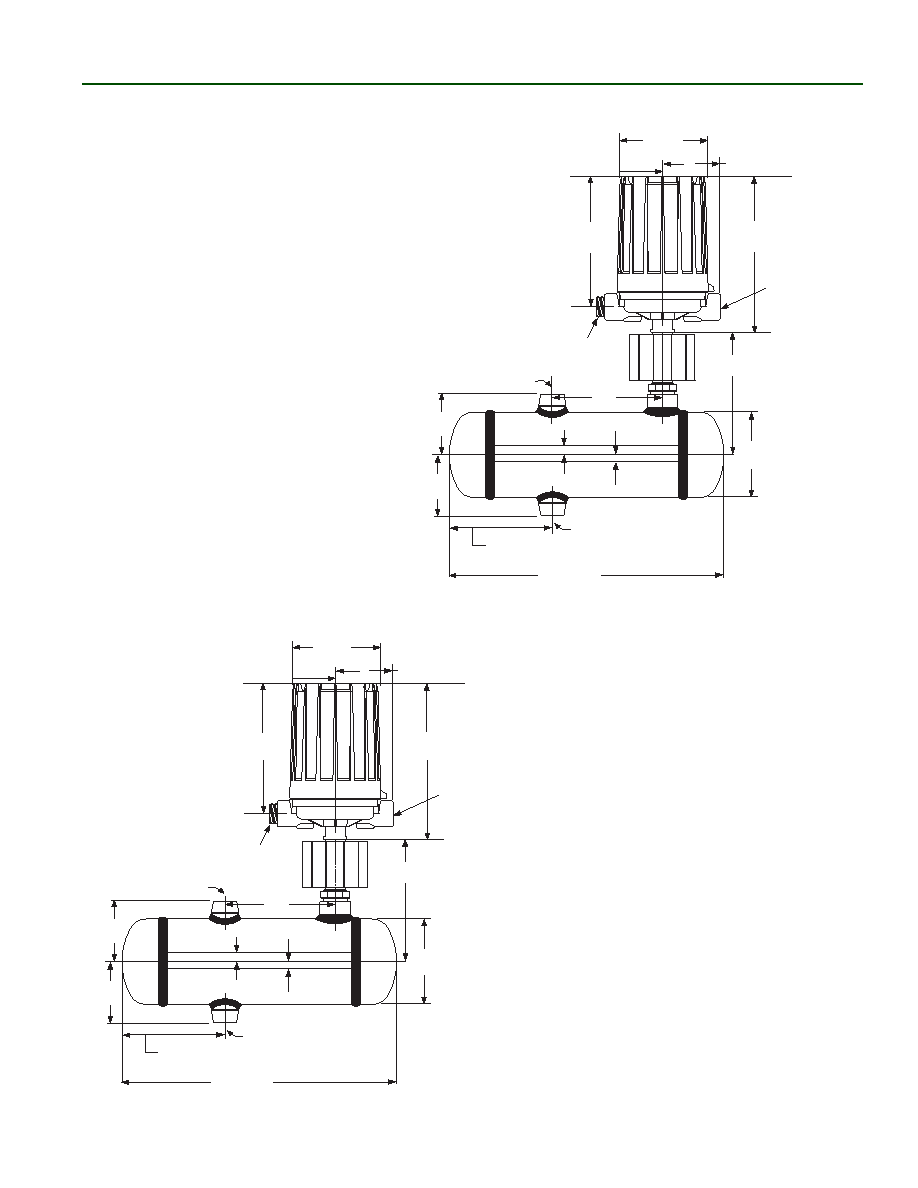

D I M E N S I O N A L
S P E C I F I C A T I O N S
I N C H E S
( M M )
B40-HF30 and B40-PF30
B40-PB60 and B40-HB60
20.88 (530)
8.18 (208)
C
L
4.15
(105)
5.56
(141)
Rotation Clearance
Rising Level
0.50 (13)
Falling Level
0.50 (13)
8.00 (203)
7.19
(182)
Plug
4.15
(105)
1" Sockolet
1" Sockolet
3.87 (98)
Electrical
Connection
5.93
(150)
8.46
(214)
10.12
(257)
20.88 (530)
8.18 (208)
C
L
3.90
(99)
5.56
(141)
Rotation Clearance
Rising Level
0.50 (13)
Falling Level
0.50 (13)
8.00 (203)
7.19
(182)
Plug
3.90
(99)
1" Schedule 80 Weldolet
1" Schedule 80 Weldolet
3.87 (98)
Electrical
Connection
5.93
(150)
8.46
(214)
10.12
(257)
NOTES:
1. Allow 8 inches (203 mm) overhead clearance for cover removal.
2. Maximum ambient temperature at switch head should not
exceed +140° F (+60° C).
