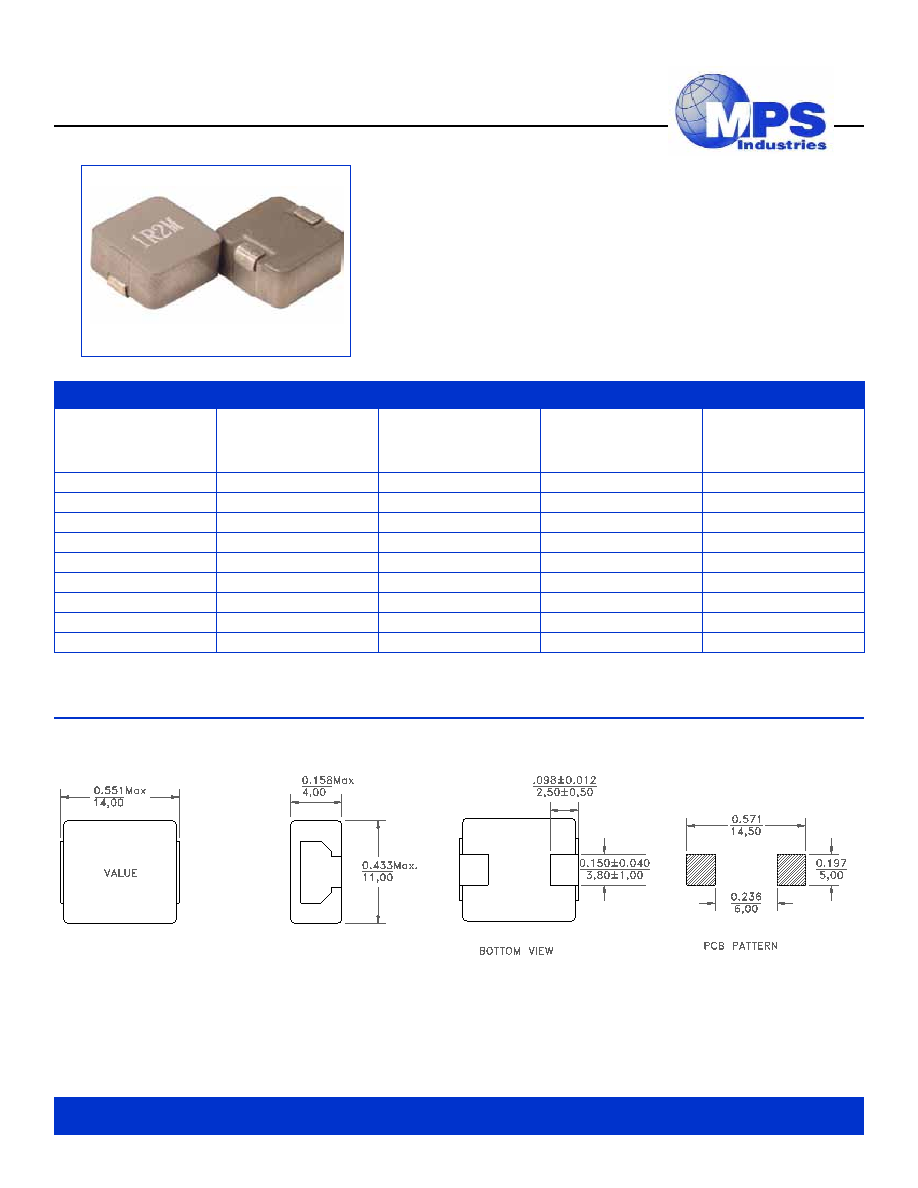

SHIELDED SMD POWER

INDUCTOR

Product performance is limited to specified parameter. Data is subject to change without prior notice.

PSE124-SERIES

0852AL

UNIT = inch/mm

Unless otherwise specified, all tolerances are:

inch: .XX : ± 0.015

.XXX : ±0.010

mm: X,X : ± 0,38 X,XX : ±0,25

PSE124 SERIES

• High current inductor for Voltage Regulated Module (VRM)

• Good for DC/DC converter and switch-mode power supply

applications

• High current in compact package

• Operating temperature: -55°C to +120°C

• RoHS Compliant Product

ELECTRICAL PARAMETERS @ 25°C

PART NUMBER

L

I

RMS

DCR

±20%

(A)

(A)

(mW)

PSE124-

(µH)

Max

Temp. Rise 40°C Max.

Max

R33M

0.33

62

36.5

1.5

R47M

0.47

55

32

2.0

R60M

0.60

51

29

2.2

R68M

0.68

49

28

2.5

R82M

0.82

44

25

3.0

1R0M

1.00

40

24

3.5

1R5M

1.50

35

19

5.5

1R8M

1.80

30

16.5

7.0

2R2M

2.20

29

16

8.0

Mechanical

13200 Estrella Ave., Bldg. B

Tel: (310) 325-1043

www.mpsind.com

Gardena, CA 90248

Fax: (310) 325-1044
