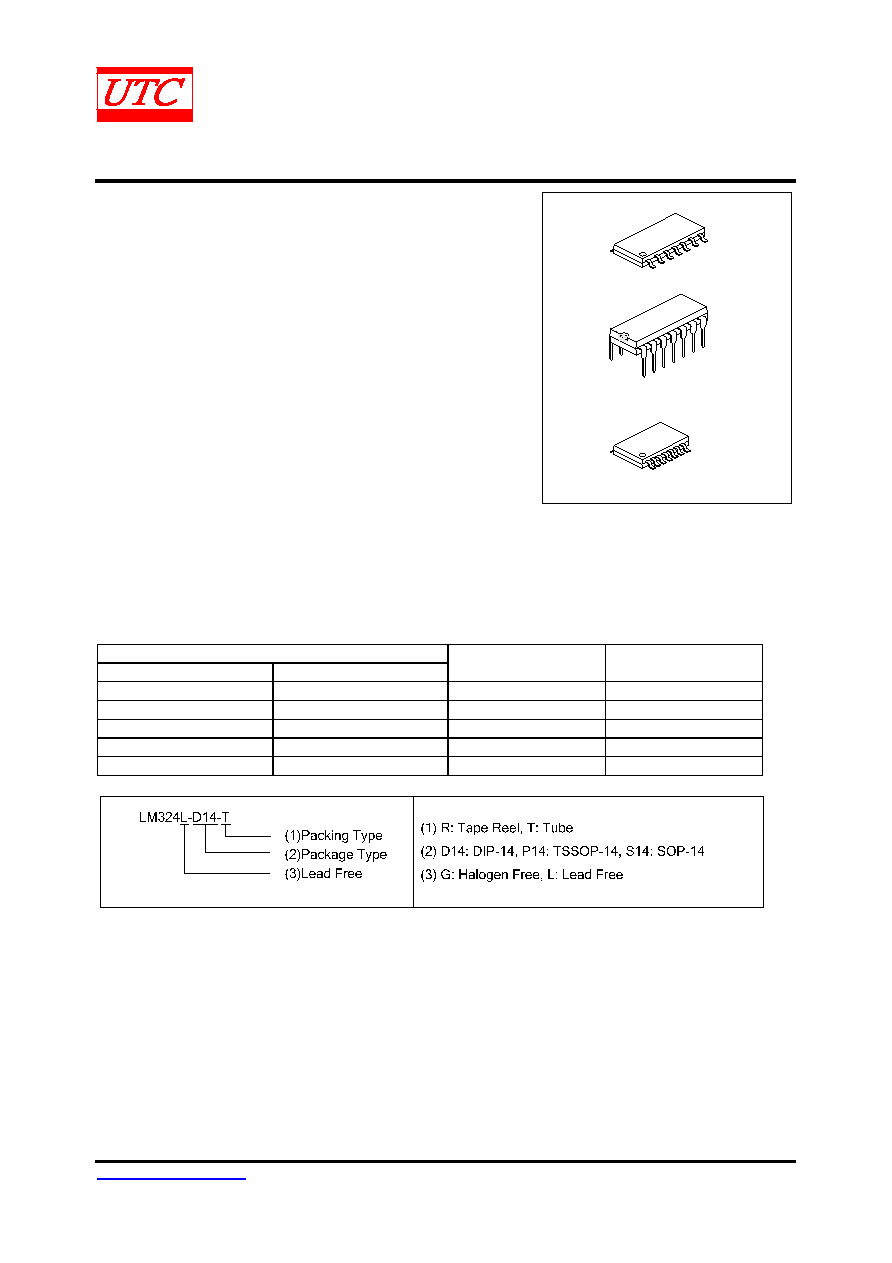

UNISONIC TECHNOLOGIES CO., LTD

LM324

LINEAR INTEGRATED CIRCUIT

www.unisonic.com.tw

1 of 6

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R105-006,K

QUAD OPERATIONAL

AMPLIFIERS

DESCRIPTION

The UTC LM324 consists of four independent, high gain

internally frequency compensated operational amplifiers which are

designed specifically to operated from a single power supply over a

wide voltage range. Operation from split power supplies is also

possible. Application areas include transducer amplifier, DC gain

blocks and all the conventional OP amp circuits which now can be

easily implemented in single power supply system.

FEATURES

*Internally frequency compensated for unity gain.

*Large DC voltage gain :100dB.

*Wide operating supply range (Vcc=3V~40V).

*Input common-mode voltage includes ground.

*Large output voltage swing: From 0V to Vcc-1.5V.

*Power drain suitable for battery operation.

DIP-14

SOP-14

TSSOP-14

ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen-Free

LM324L-D14-T

LM324G-D14-T

DIP-14

Tube

LM324L-P14-R

LM324G-P14-R

TSSOP-14

Tape Reel

LM324L-P14-T

LM324G-P14-T

TSSOP-14

Tube

LM324L-S14-R

LM324G-S14-R

SOP-14

Tape Reel

LM324L-S14-T

LM324G-S14-T

SOP-14

Tube
