U74LVC08A
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
5 of 6
www.unisonic.com.tw
QW.-R502-455.B

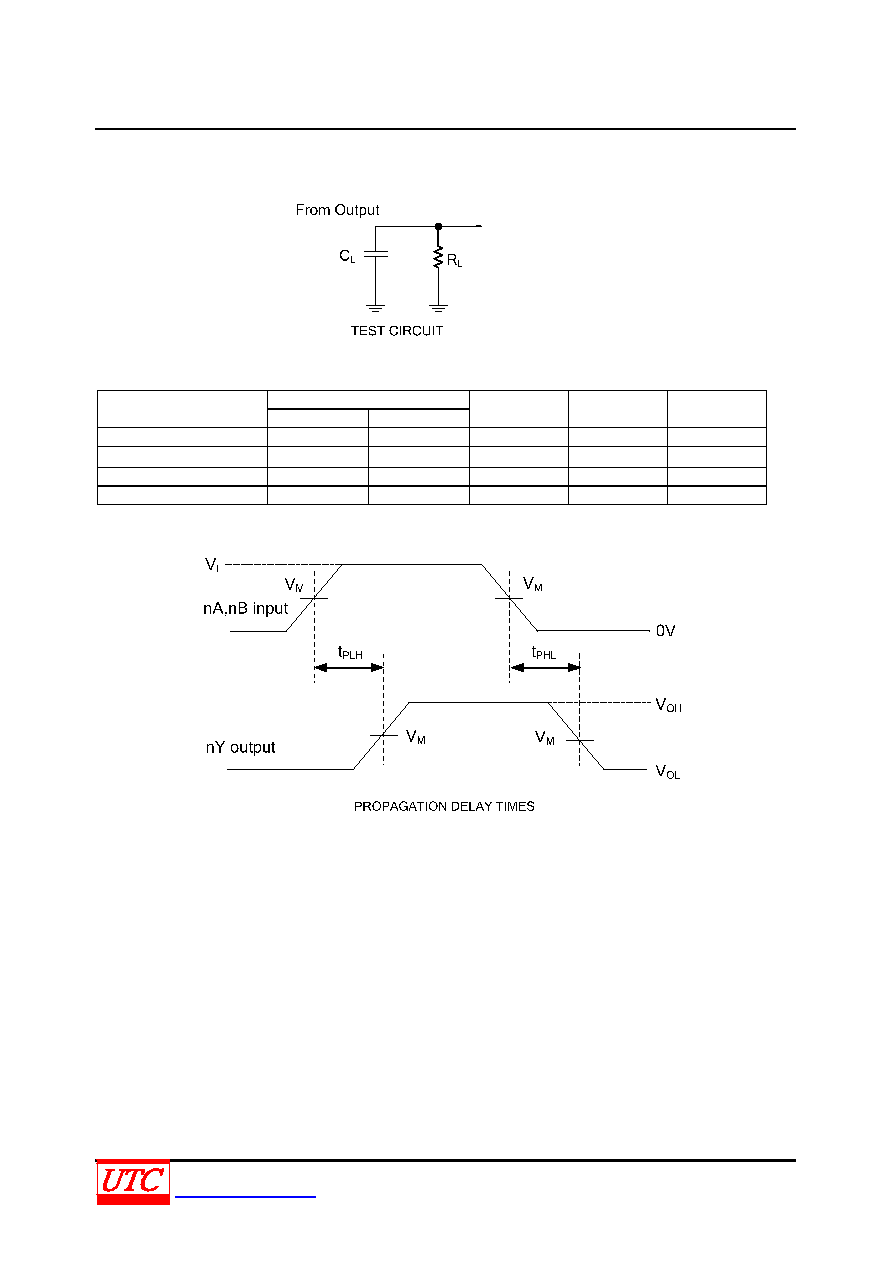

TEST CIRCUIT AND WAVEFORMS
Inputs
VCC
VIN
tR, tF
VM
CL
RL
VCC=1.8V±0.15V
VCC
≤2ns
VCC/2
30pF
1kΩ
VCC=2.5V±0.2V
VCC
≤2ns
VCC/2
30pF
500Ω
VCC=2.7V
2.7V
≤2.5ns
1.5V
50pF
500Ω
VCC=3.3V±0.3V,
2.7V
≤2.5ns
1.5V
50pF
500Ω
Note: CL includes probe and jig capacitance.
All input pulses are supplied by generators having the following characteristics:
PRR ≤10MHz, Zo = 50Ω, tR ≤2.5ns, tF ≤2.5ns.
