ADP198

Data Sheet

Rev. D | Page 12 of 16

APPLICATIONS INFORMATION

GROUND CURRENT

The major source for ground current in the ADP198 is an internal

4 MΩ pull-down resistor on the enable pin. Figure 23 shows

the typical ground current when VEN = VIN and varies from

1.65 V to 6.5 V.

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

6.0

6.5

VIN (V)

ILOAD = 1000mA

ILOAD = 100mA

ILOAD = 10mA

ILOAD = 200mA

ILOAD = 400mA

ILOAD = 800mA

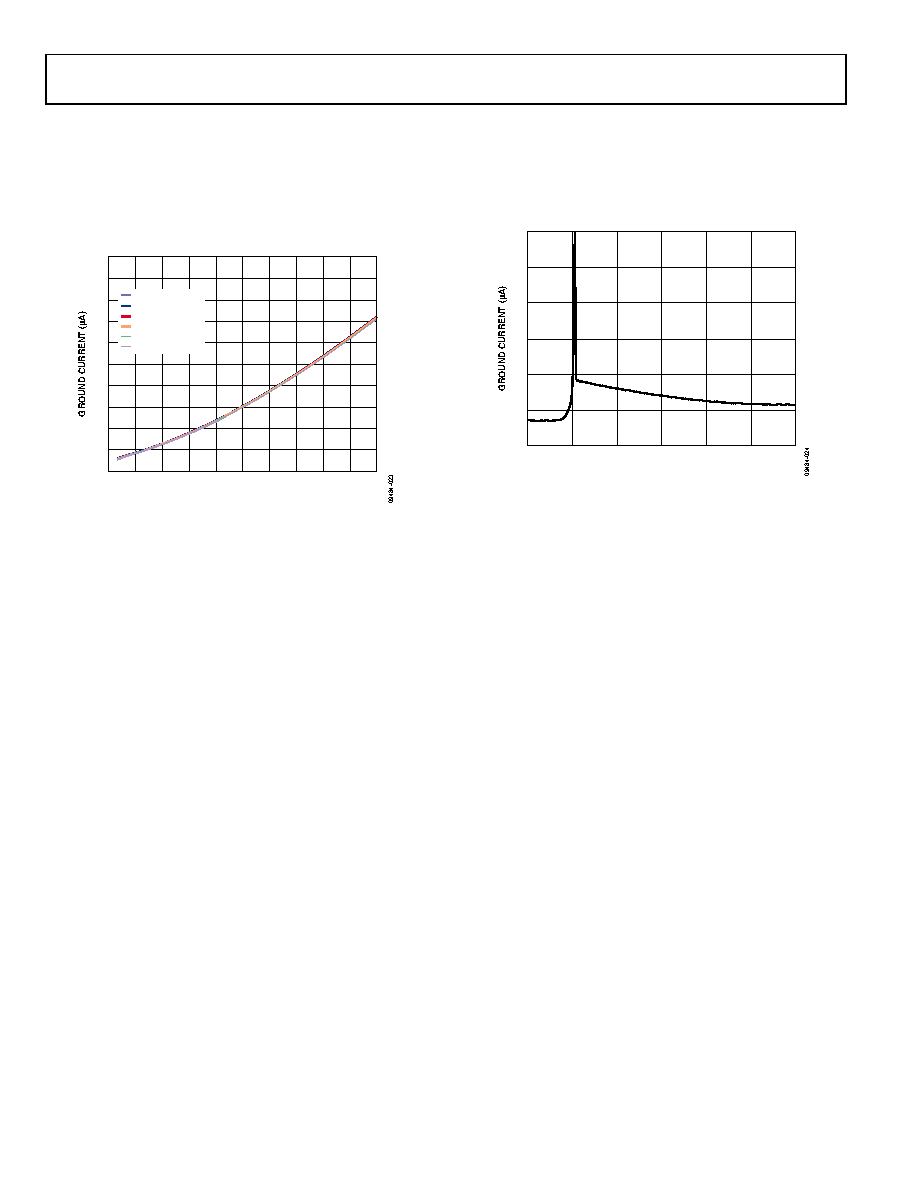

Figure 23. Ground Current vs. Load Current

As shown in Figure 24, an increase in quiescent current can occur

when VEN ≠ VIN. This is caused by the CMOS logic nature of the

level shift circuitry as it translates a VEN signal ≥1.2 V to a logic

high. This increase is a function of the VIN − VEN delta.

ENABLE VOLTAGE (V)

Figure 24. Typical Ground Current when VEN ≠ VIN
